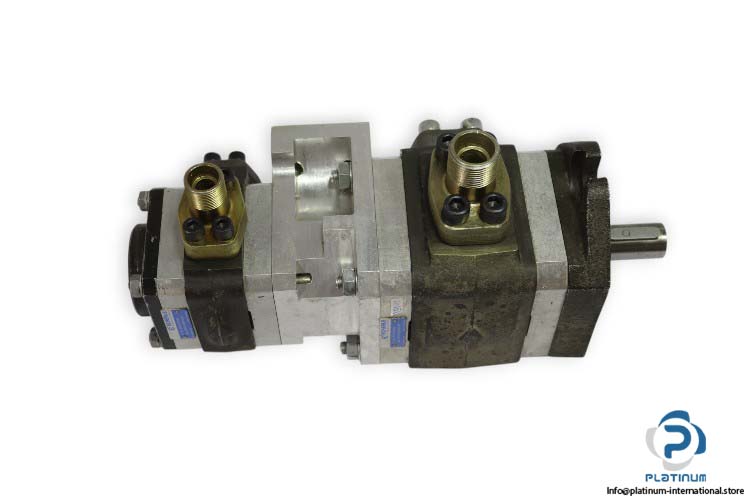

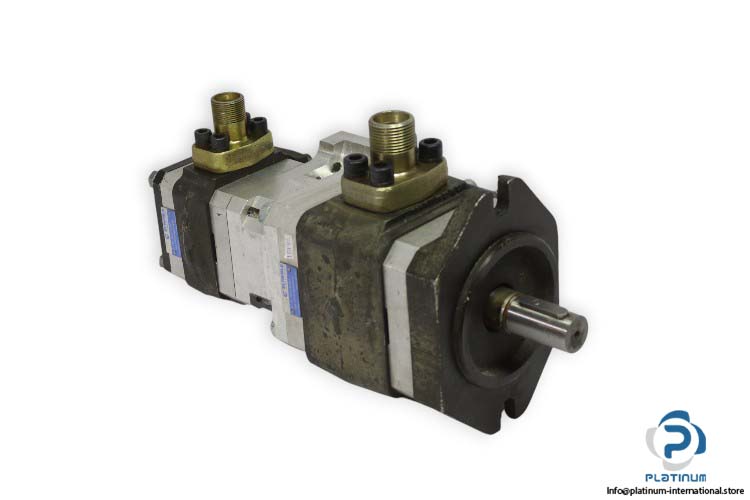

ECKERLE EIPH3-032RK23-10 INTERNAL GEAR PUMP

The Eckerle EIPH3-032RK23-10 is a high-pressure internal gear pump built for precision hydraulic systems. Designed for continuous operation at up to 330 bar, this model delivers efficient performance at varying speeds and is equipped with a straight keyed shaft and SAE/B 2-bolt flange.

Manufacturer: Eckerle
Type: Internal Gear Pump (High Pressure Pump)

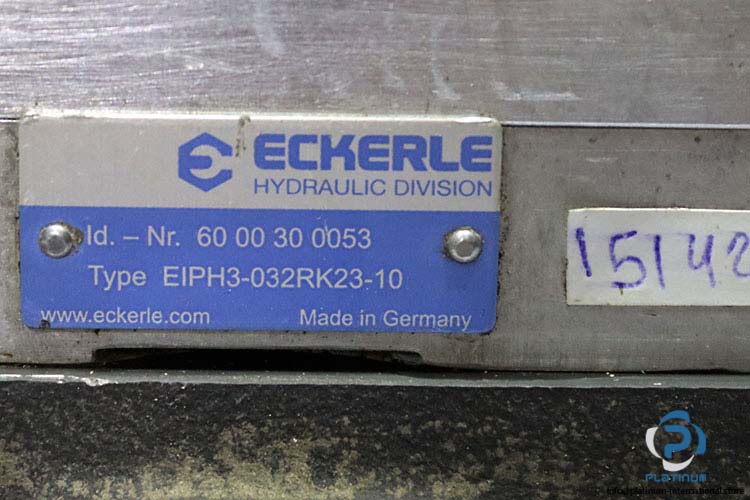

Model: EIPH3-032RK23-10
ID No.: 60 00 30 0053

Technical Information

• Connection: 39 mm, ¾ inch, 1 inch
• Size: 32
• Displacement: 32.1 cm³/rev
• Speed Range: 400 to 3000 RPM
• Operating Viscosity: 10 to 300 mm²/s
• Continuous Operating Pressure: 330 bar
• Frame Size: 3
• Rotation Direction: R (Clockwise)
• Shaft End: K (Straight keyed shaft with PTO)
• Mounting Flange: 2 (SAE/B 2-bolt flange, centering collar Ø 101.6)

Attached Unit

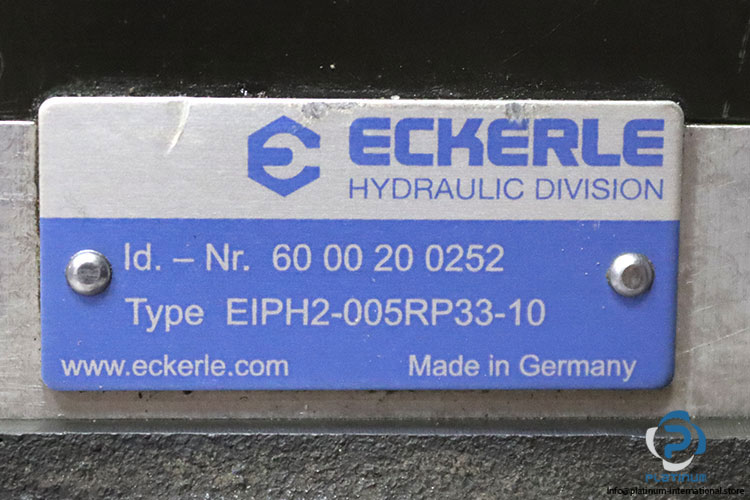

Model: EIPH2-005RP33-10
ID No.: 60 00 20 0252

• Size: 5
• Displacement: 5.4 cm³/rev
• Speed Range: 400 to 3600 RPM
• Operating Viscosity: 10 to 300 mm²/s
• Continuous Operating Pressure: 330 bar
• Frame Size: 2
• Rotation Direction: R (Clockwise)
• Shaft End: P (SAE splined shaft end on one side)
• Mounting Flange: 3 (Direct mounting)
