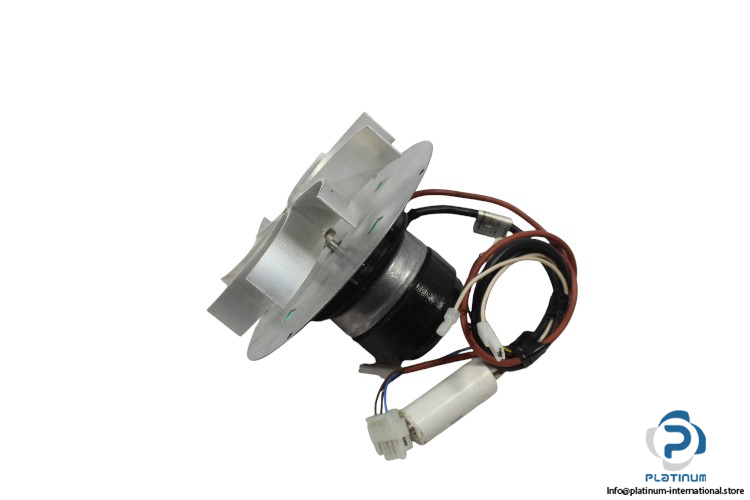

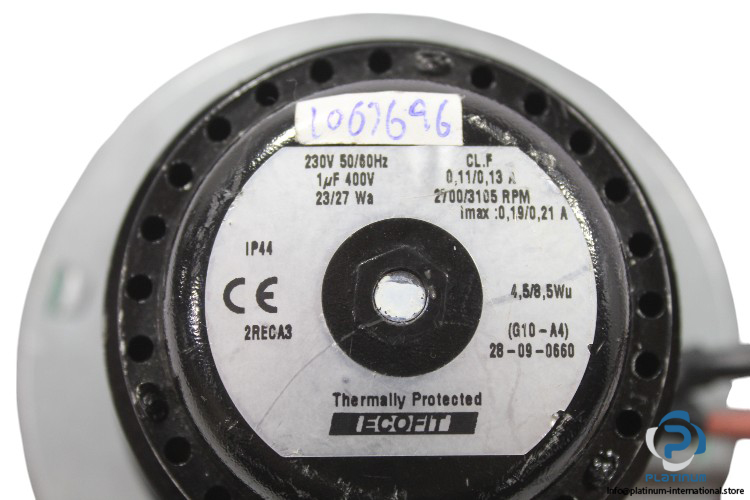

Ecofit Fume Extractor “ 2RECA3

The Ecofit Fume Extractor is designed for efficient extraction of fumes in industrial settings. With an 8-blade system and a robust motor, it delivers a reliable performance, ensuring a cleaner work environment.

Manufacturer: Ecofit

Type: Fume Extractor

Model: 2RECA3

Technical Information:

• No. of Blades: 8
• Dimension: 150 x 20 mm
• Rated Voltage: 230 V
• Rated Current: 0.11/0.13 A
• Max Current: 0.19/0.21 A
• Rated Power: 23/27 W
• Speed: 2700/3105 rpm
• Frequency: 50/60 Hz
• Inverter: Without
• No. of Wires: 7
• Class: F
• IP Rate: IP44
• Blade Material/Fan Housing Material: Metal
• Attachment: Sintex 45T.A2CS.1 Capacitor

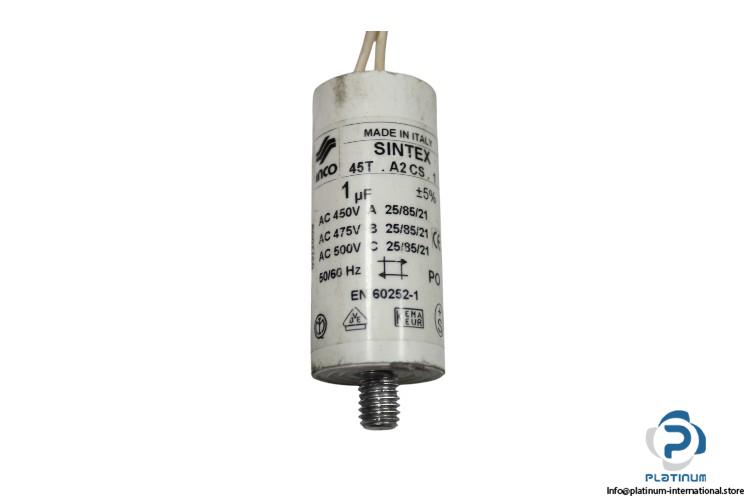

Sintex Capacitor

Manufacturer: Sintex Inco

Type: Capacitor

Model: 45T.A2CS.1

Technical Information:

• Capacity: 1 micro-farad
• Voltage: 450 to 500 V AC
