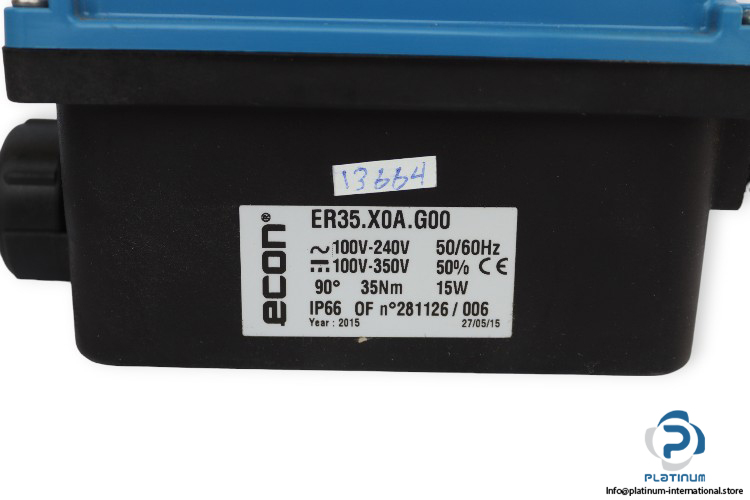

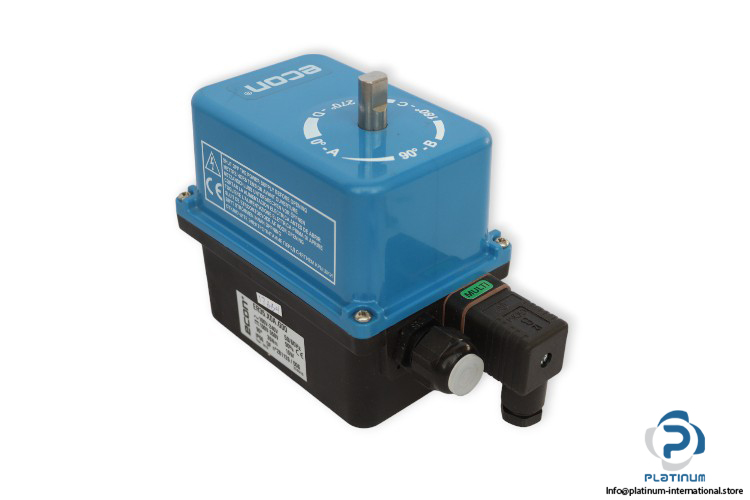

Manufacturer: ECON
Type: Electric Actuator
Model: ER35X0AG00

Supply Voltage: 100 … 240 V AC / 100 … 350 V DC
Frequency: 50 … 60 Hz
Power: 15 W
Torque: 35 Nm

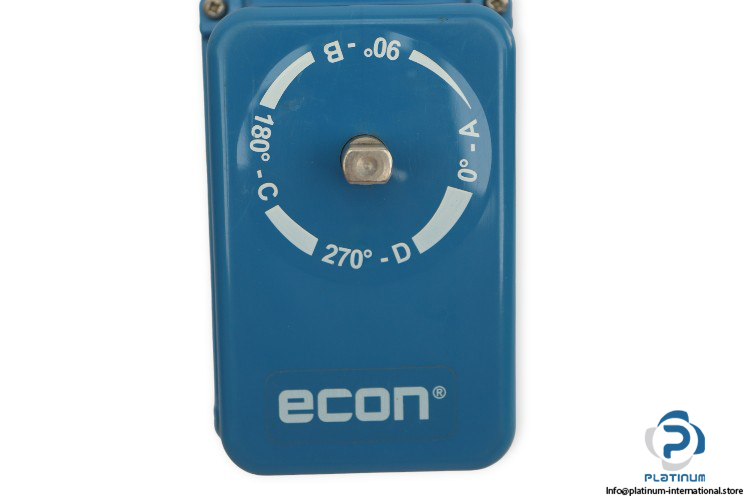

Possible Rotation Angles: 0°, 90°, 180°, 270°
Operating Time With / Without Load: 26 / 19 sec
Protection Class: IP66
Temperature: -10 … 55 °C
Dimensions: 124 x 92 x 136 mm
