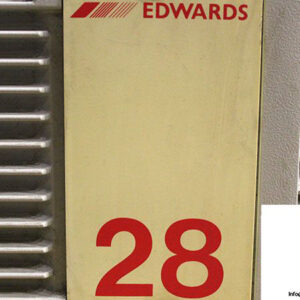

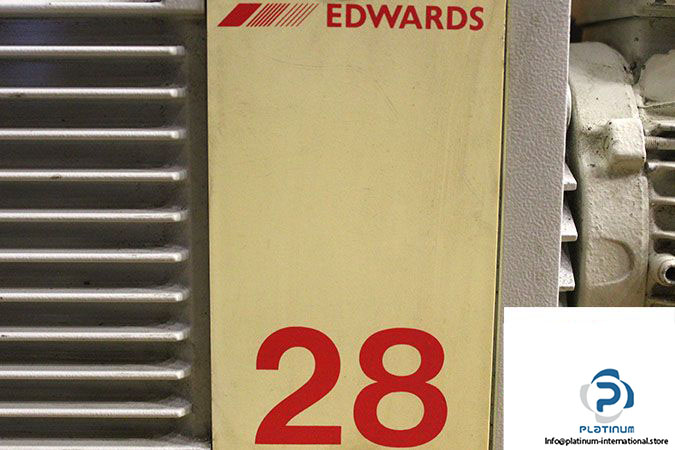

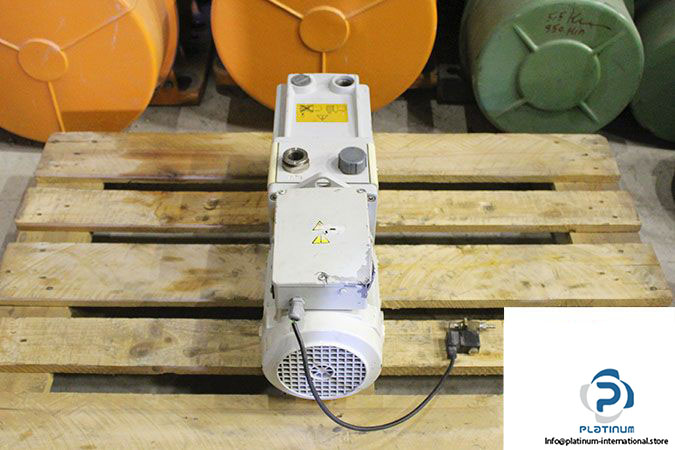

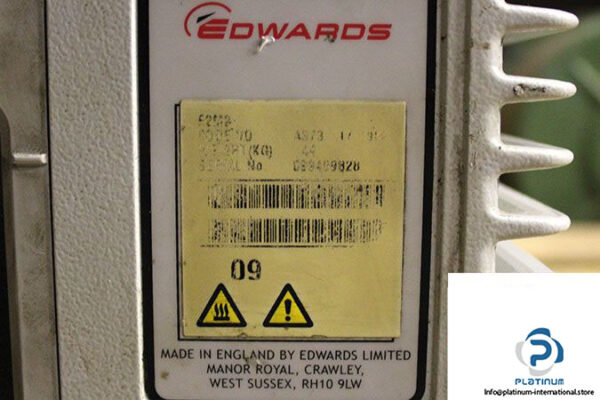

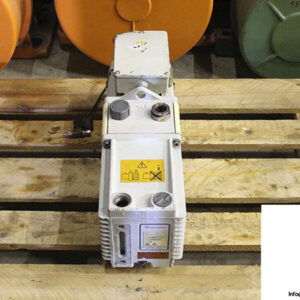

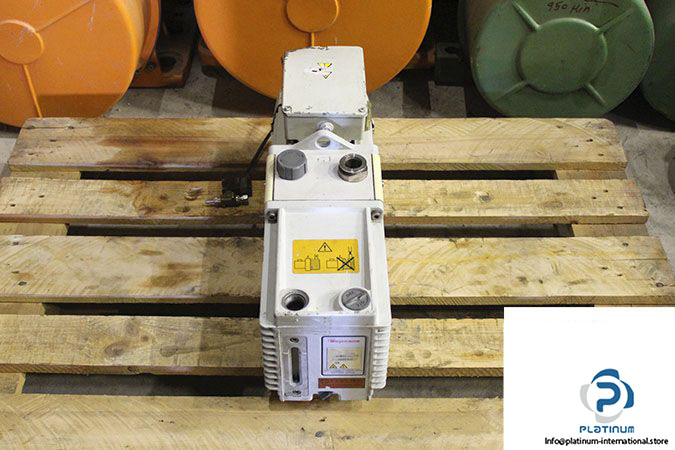

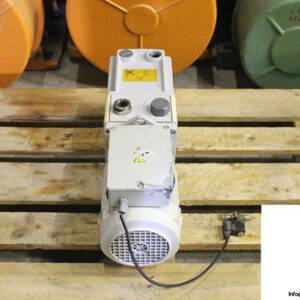

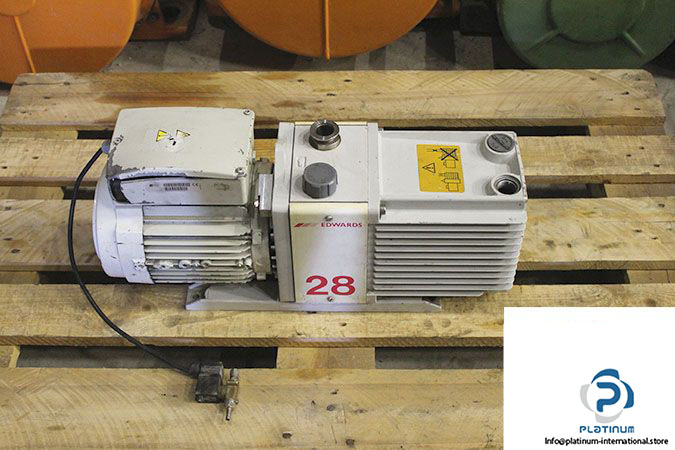

Manufacturer: Edwards

Type: Two Stage Rotary Vacuum Pumps

Model: E2M28

Max. Displacement [m³/h]: 32.2/38.9

Max. Pumping Speed [m³/h]: 27.5/33.0

Max. Inlet Pressure for Water Vapor [mbar]: 30

Motor Power [kW]: 0.75/0.90

Max./Min. Oil Capacity [L]: 1.5/1.2

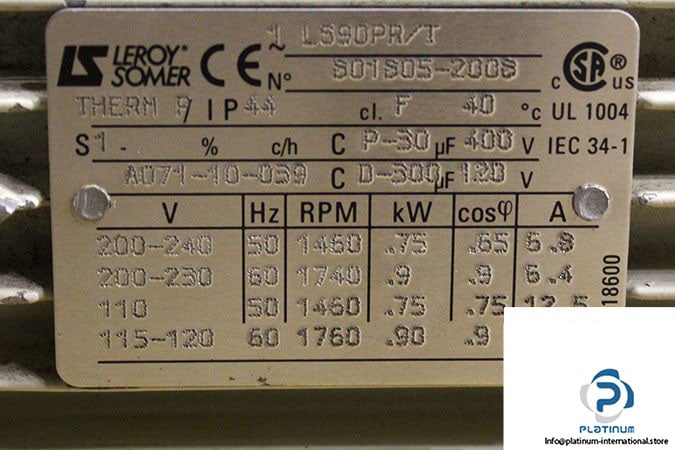

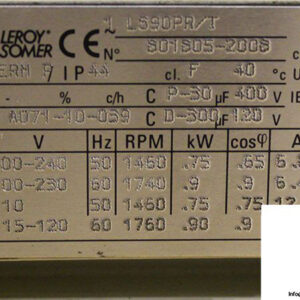

Attachment: LEROY SOMER LS90PR/T SINGLE PHASE E-MOTOR

Manufacturer: Leroy Somer

Type: Single Phase E-Motor

Model: LS90PR/T

Rated Voltage/ Conn. [V]: 110/220-240 Delta/Star

Rated Speed [rpm]: 1460/1460

Rated Power [kW]: 0.75/0.75

Rated Current [A]: 12.5/5.8

Power Factor [%]: 0.65/0.75

Frequency [Hz]: 50

Rated Voltage/ Conn. [V]: 110/115-120

Power Factor [%]: 0.70/0.90

Rated Power [kW]: 0.75/0.9

Rated Current [A]: 13.1/6.4

Rated Speed [rpm]: 1760/1740

Frequency [Hz]: 60

Ambient Temperature [°C]: 40

Protection Class [IP]: 44

Duty: S1 Cont.

Insulation Class: F
