Manufacturer: EGE
Type: Liquid Flow Sensor

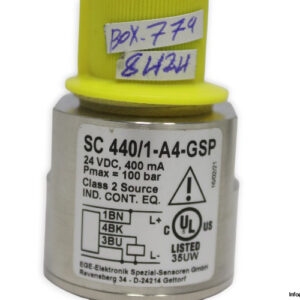

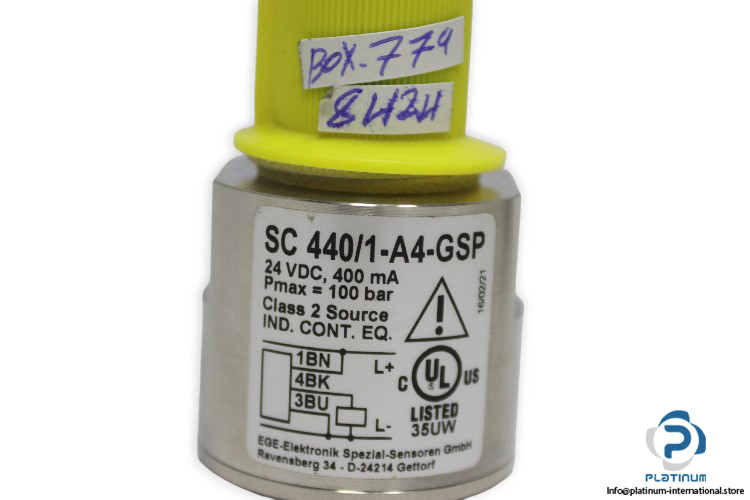

Model: SC440/1-A4-GSP

Medium: Water, oil
Detection range water: 1 … 150 cm/s
Detection range Oil: 3 … 300 cm/s
Process connection : G1/2
Sensor length L: 48 mm
Output: switching output
Output function: PNP-NO
Supply voltage: 24 VDC +/- 20 %
Current consumption max.: 70 mA
Switching current max.: 400 mA (20 °C)
Voltage drop max.: 2.5 V
Ambient temperature: -20 … 80 °C
Medium temperature: -20 … 80 °C
Temperature gradient fluids: 250 K/min
Start-up time typ.: 8 s (2 … 15 s)
Reaction time typ.: 2 s (1 … 13 s)
Compressive strength: 100 bar
Material sensor touched by medium: stainless steel AISI 316 Ti
Material housing: stainless steel AISI 316 Ti, stainless steel AISI 303, brass, PA
Protection: IP 67

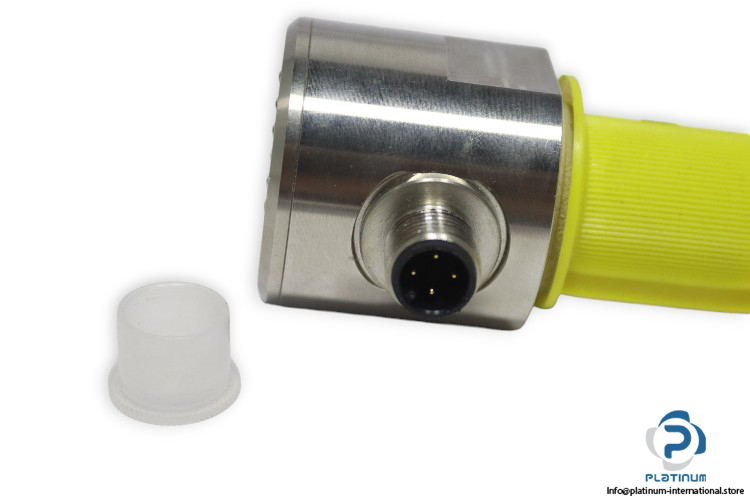

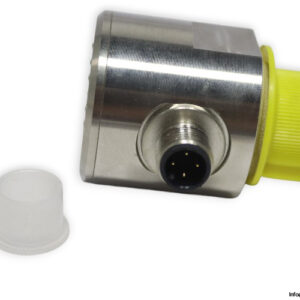

Electrical connection: M12 connector
