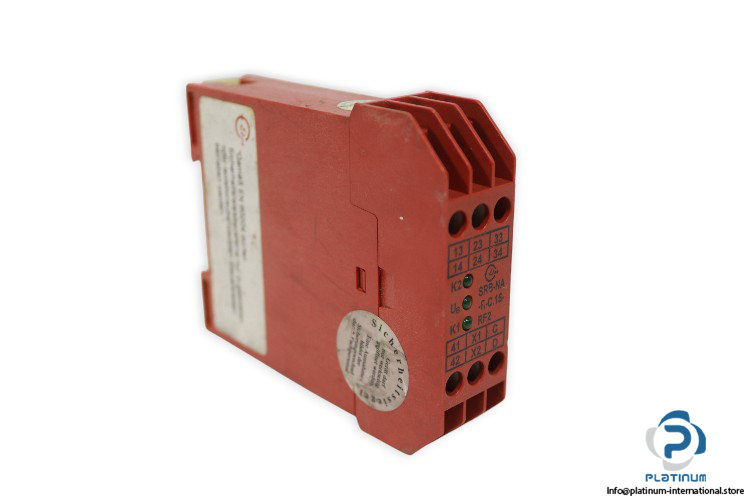

ELAN Schmersal SRB-NA-R-C.15-RE2-24V Safety Relay
The ELAN Schmersal SRB-NA-R-C.15-RE2-24V is a robust safety relay from the SRB series, engineered for reliable machine and operator protection. With multiple contacts and high insulation ratings, it ensures safe operation in industrial environments.
Manufacturer: ELAN Schmersal
Type: Safety Relay
Model: SRB-NA-R-C.15-RE2-24V

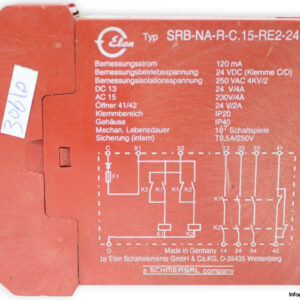

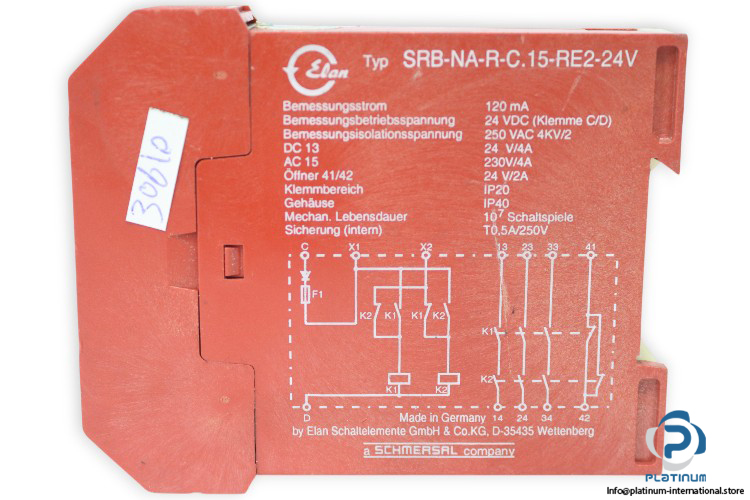

Technical Information
- Series: SRB Safety Relay Series
- Rated Voltage: 24 V DC
- Rated Current: 120 mA
- Rated Operating Voltage Range: 24 V DC
- Rated Insulation Voltage: 250 V AC 4KV/2
- Contact Ratings: DC-13: 24 V / 4 A, AC-15: 230 V / 4 A
- Contacts: 3 Normally Open, 1 Normally Closed
- Degree of Protection: IP20, IP40
- Internal Fuse: T0.5A / 250 V
