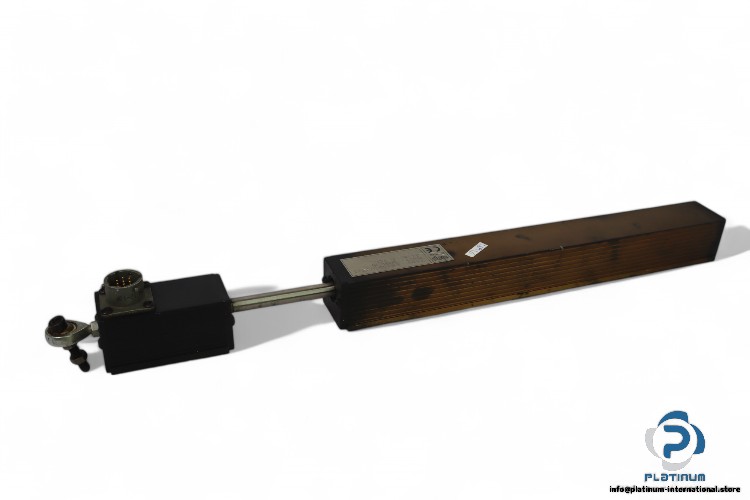

ELAP PE050200X11 LINEAR TRANSDUCER
The ELAP PE050200X11 Linear Transducer is engineered for precise linear measurement in industrial applications, offering exceptional resolution, output versatility, and rugged construction. This transducer ensures accurate feedback and reliable performance under various operating conditions.
Manufacturer: ELAP
Type: LINEAR TRANSDUCER

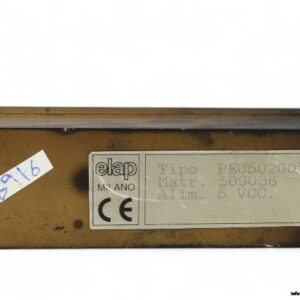

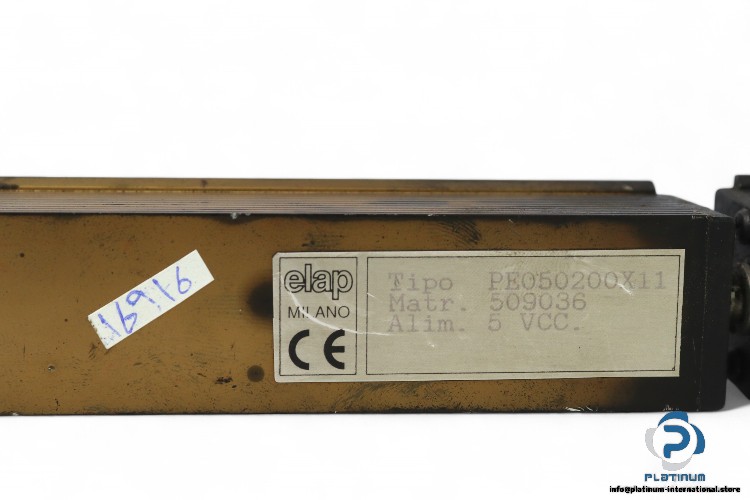

Model: PE050200X11
Matr No.: 509036
Technical Information
- Supply Voltage: 5V DC or 8/24V DC
- Power Consumption: 30 / 80 mA max
- Output Signals: Two square waves dephased by 90° ±15°, Zero pulse width 90° ±15°
- Electronic Output: Push-pull, open collector NPN, 5Vdc or 8/24Vdc line driver, Short circuit protection

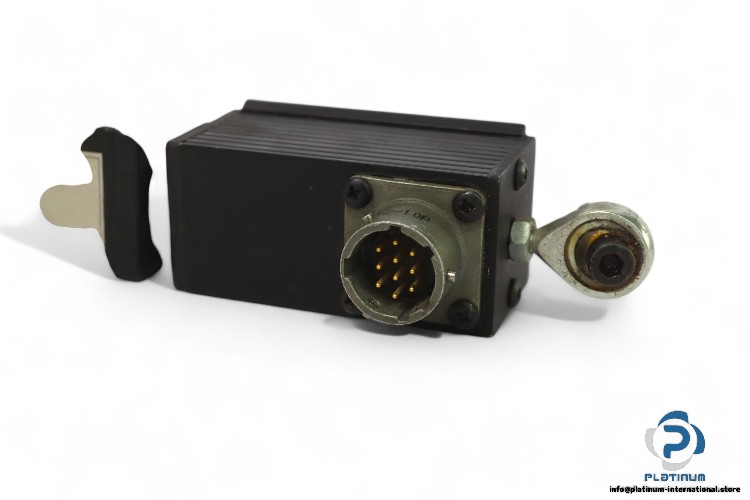

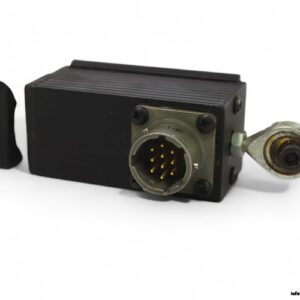

- Connection: By connector
- Max Speed: 120 m/min
- Reading Resolution: 0.05 mm
- Progress Strength: 1/3 N
- Zero Reference: Zero reference at mid-stroke
- Protection Degree: IP64 “ optional IP65
- Materials: Anodized aluminium case, AISI 303 steel shaft (8 mm diameter), 31×31 mm dimensions
- Operating Temperature: 0 / 50° C
