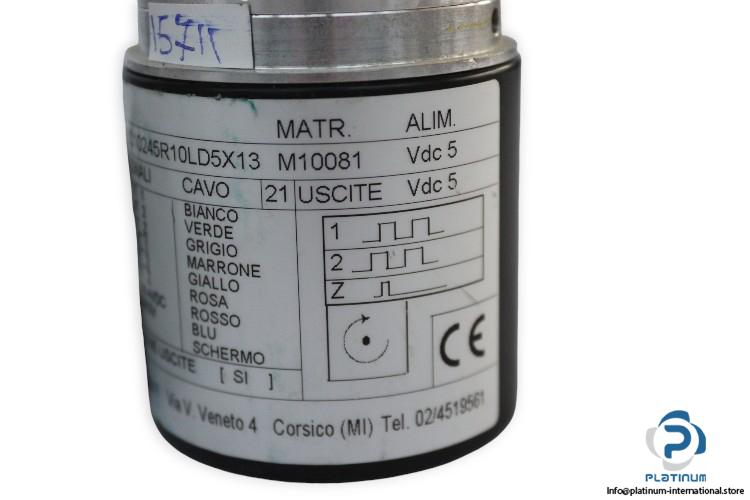

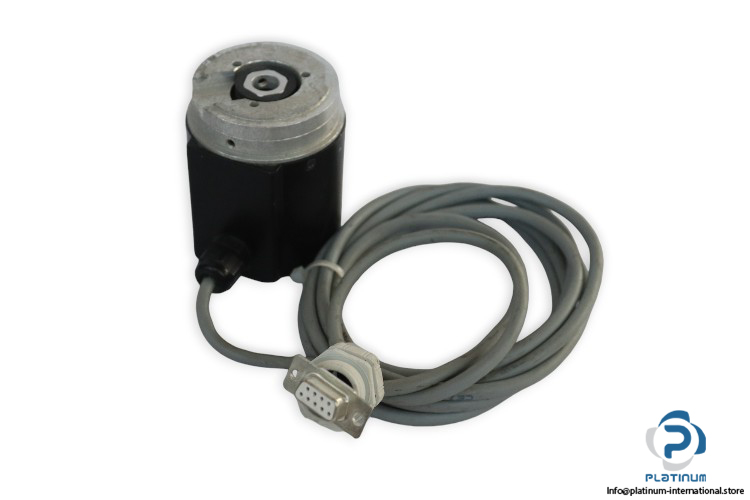

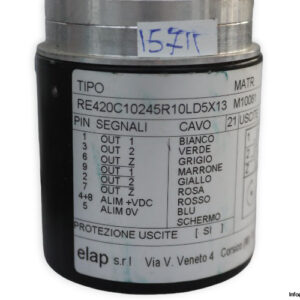

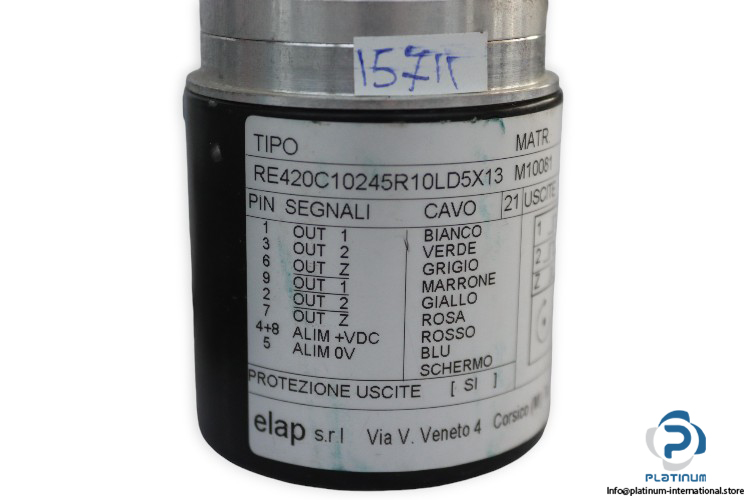

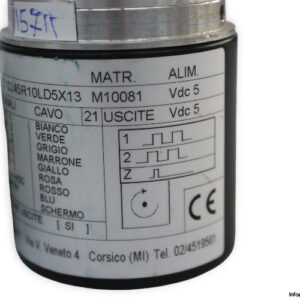

ELAP RE420C10245R10LD5X13 INCREMENTAL ROTARY ENCODER

The ELAP RE420C10245R10LD5X13 is a high-precision incremental rotary encoder designed to deliver accurate and reliable position feedback in industrial automation systems. Built with a durable aluminum housing and IP65-rated enclosure, it ensures dependable performance in demanding environments.

Manufacturer: ELAP
Type: Incremental Rotary Encoder
Model: RE420C10245R10LD5X13
Part No.: M10081

Technical Information

• Input Voltage: 5 V DC
• Principle of Operation: Incremental
• Shaft Type: Hollow Shaft
• Output Signal Level: TTL
• Resolution: 1024 ppr
• Shaft Diameter: 10 mm
• Shaft Length: 24.5 mm
• Enclosure Rating: IP65
• Max Rotation Speed: 6000 rpm
• Output Type: Cable End MS Connector (9 Pins)
• Material: Aluminum
• Operating Temperature: -10 / +70°C
