ELAP SEB1 INCREMENTAL ENCODER

The ELAP SEB1 Incremental Encoder is engineered for precision and reliability in automation and motion control systems. It features a solid AISI 303 steel shaft and offers excellent signal performance across a wide frequency range, making it suitable for various industrial environments.

Manufacturer: ELAP
Type: Incremental Encoder
Model: SEB1
Ref No.: 6612

Technical Information

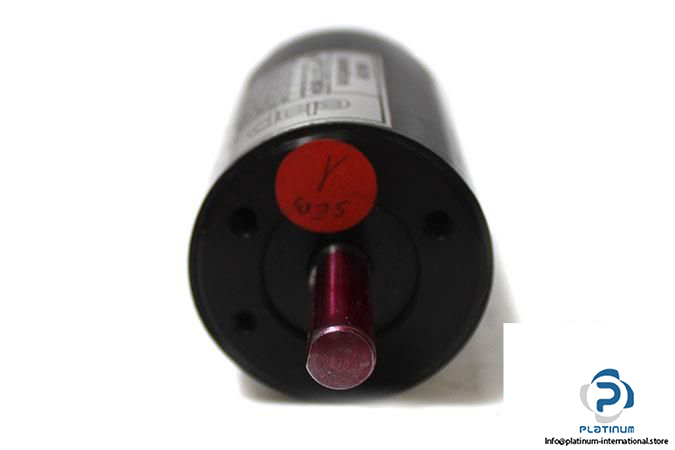

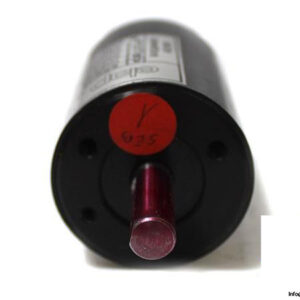

• Shaft Type: Solid Shaft (Steel AISI 303)
• Shaft Diameter: 10 mm
• Voltage Supply: 12 VDC
• Switching Frequency: 0 / 100 kHz
• Consumption: 70 mA

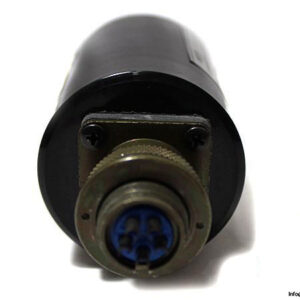

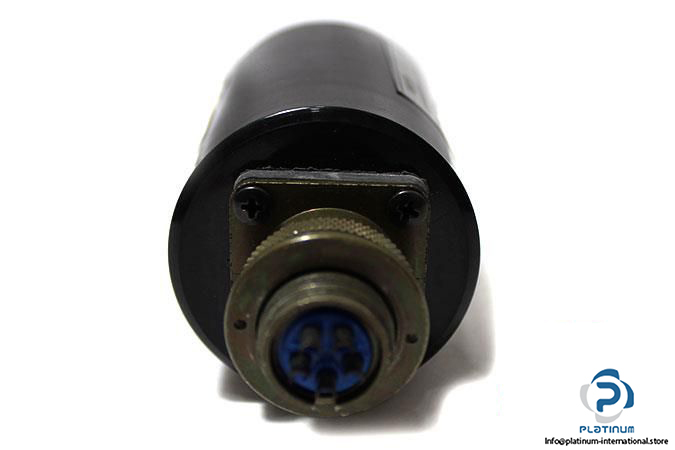

• Connection Type: Connector M23, 5 pin, Axial
• Protection Class: IP64
• Temperature Range: -10 / 70 °C
