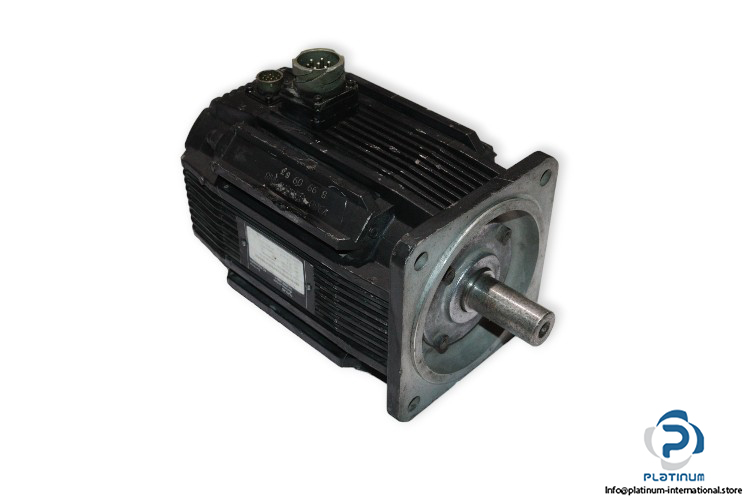

ELAU SCHNEIDER SB145/30/08/05/24/S/01/64/EOKN SERVO MOTOR
This Schneider Elau servo motor offers powerful and precise control ideal for demanding automation applications. Built with high protection standards and reliable performance, it is designed to meet industrial motion requirements with outstanding torque and responsiveness.
Manufacturer: Elau, Schneider
Type: Servo Motors

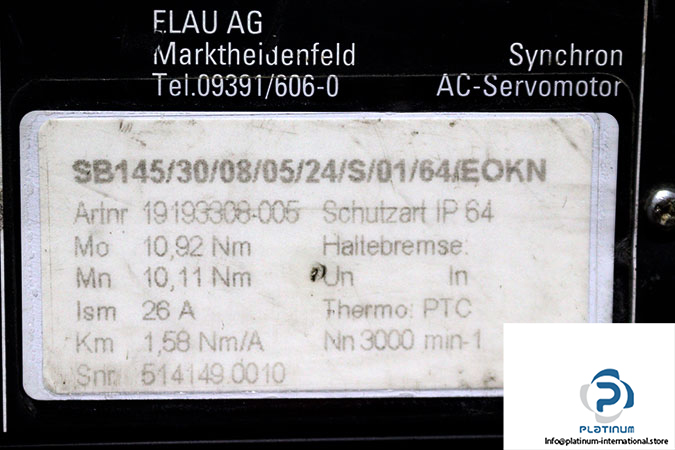

Model: SB145/30/08/05/24/S/01/64/EOKN
Serial Number: 514149 0010
Ref no: 19193308.005
Technical Information
- Flange Size: 145 mm
- Shaft Structural Shape: B5
- Shaft Bore: 24 mm
- Speed nN: 3000 rpm
- Standstill Torque M0: 10.92 Nm
- Rated Motor Torque MN: 10.11 Nm
- Peak Motor Current: 26 A
- Torque Constant: 1.58 Nm/A
- Thermo Couple: PTC
- Protection Class: IP 64
- Encoder: Resolver
