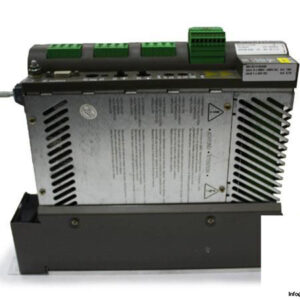

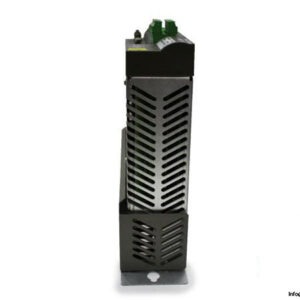

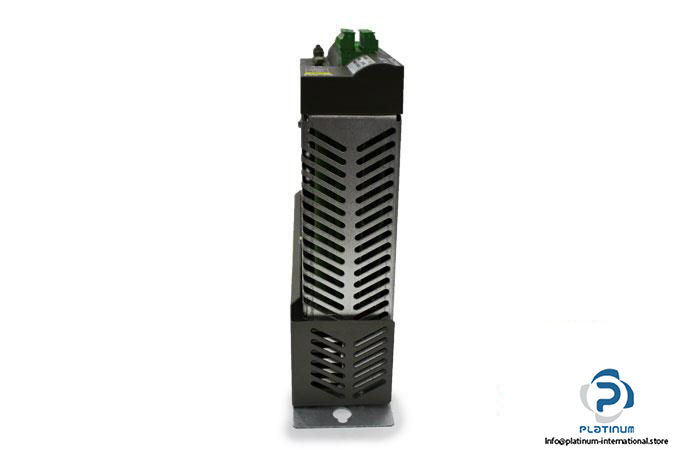

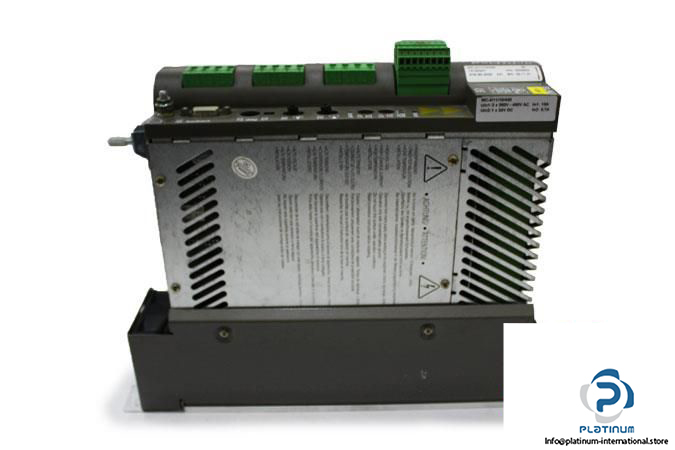

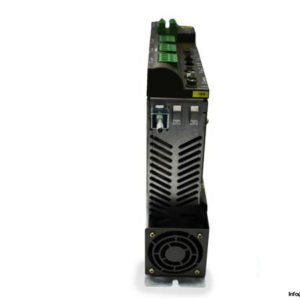

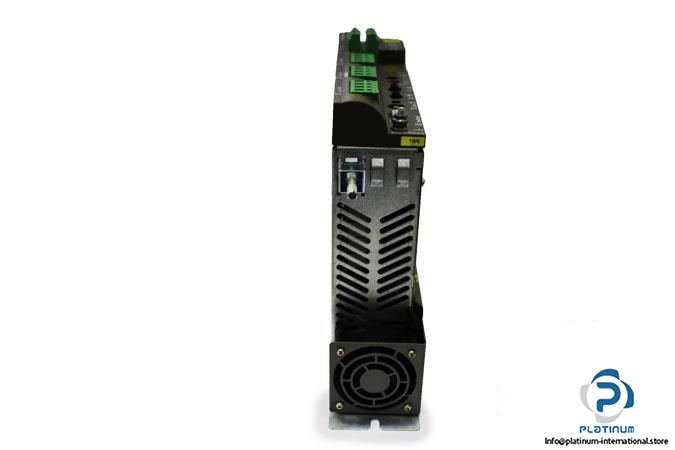

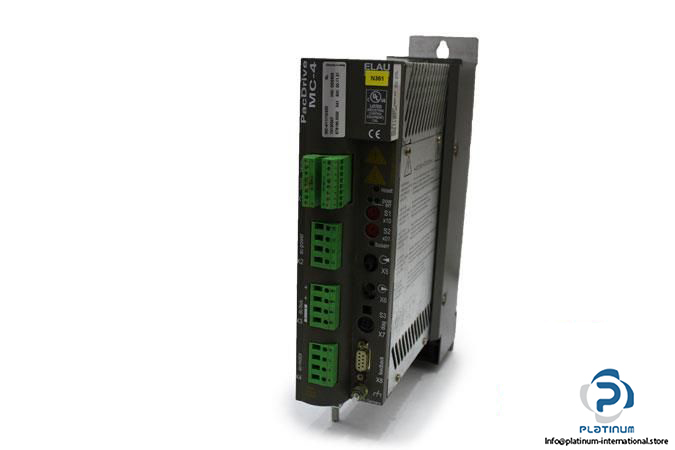

Manufacturer: Elau
Type: Servo Drive

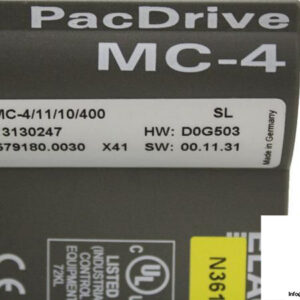

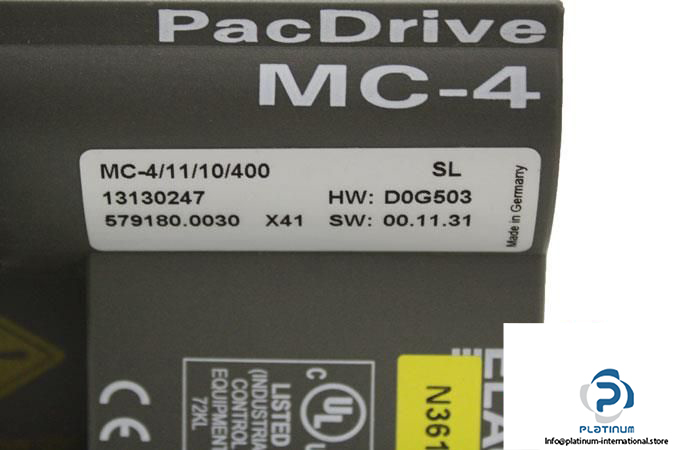

Model: MC-4/11/10/400
ID. No.: 579180.0030 X41
Order No.: 13 13 02 47
Series: PacDrive MC-4

Input 1
Voltage Rating: 3 Phase / 380 … 480 V AC
Current: 10.2 A
Frequency: 48…62 Hz
Input 2
Control Voltage: 24 VDC
Current: 1 A
Output
Voltage Rating: 3 Phase / 0 … 480 V AC
Current: 10 A
Frequency: 0…600 Hz
Peak Power: 10 Kw
Motor connection:
Rated power 8 kHz: 10 Aeff
Peak current 1 s: 25 Aeff
Rated power: 6.9 kVA
Ambient Temperature: 5 … 45 °C
Software version: 00.11.31
Protection class: Casing: IP20, installation location: IP54
Dimensions: 260 X 69 X 310 mm
