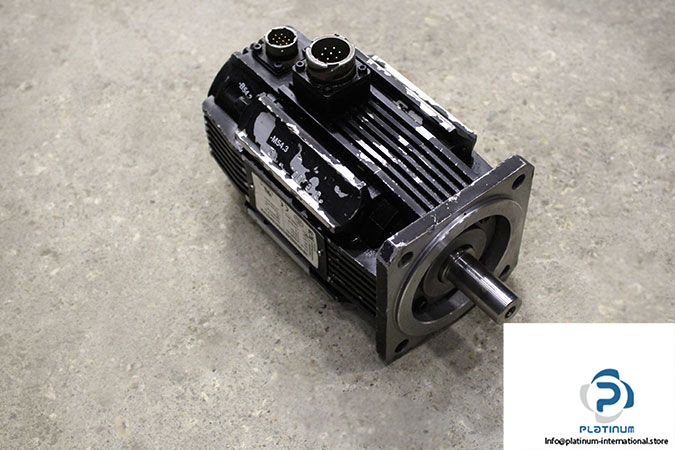

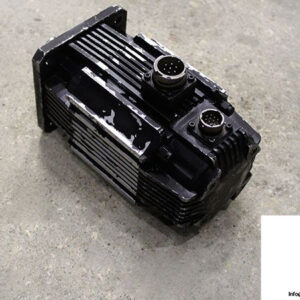

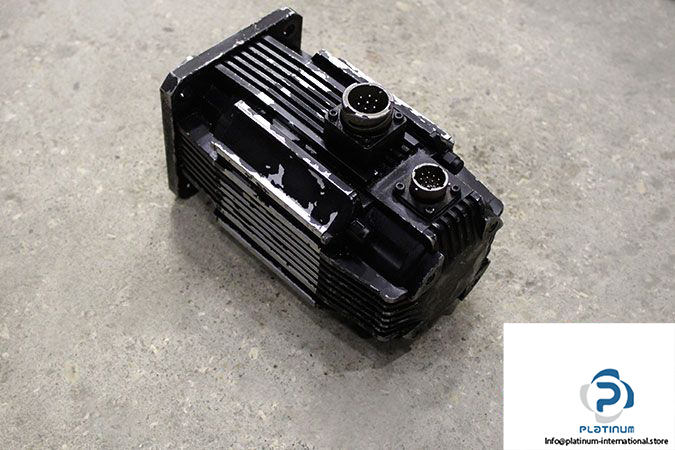

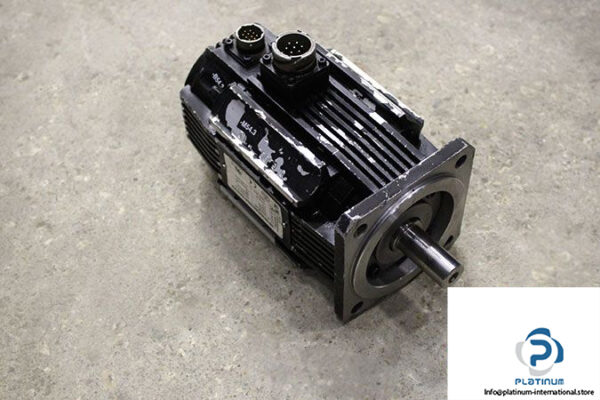

ELAU / SCHNEIDER ELECTRIC SERVO MOTOR “ SB 105/30/02/05/19/S/01/64/EOKN

This high-performance servo motor by Elau AG / Schneider Electric is designed for precision motion control in industrial applications. With robust torque, advanced resolver feedback, and high ingress protection, it ensures optimal reliability and dynamic performance.

Manufacturer: Elau AG / Schneider Electric
Type: Servo Motor

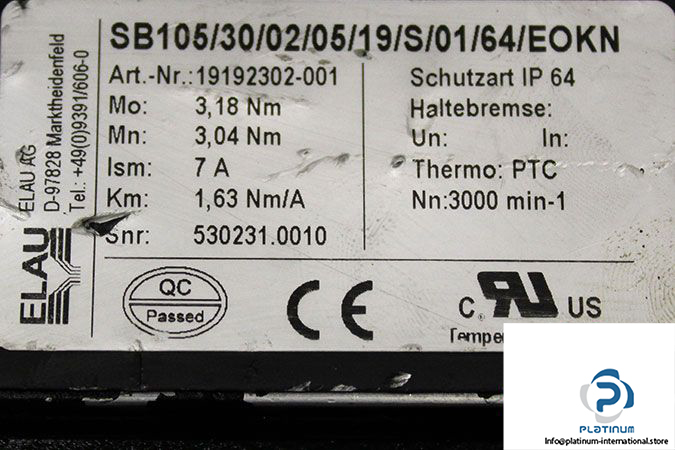

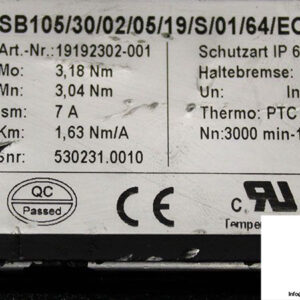

Model: SB 105/30/02/05/19/S/01/64/EOKN
Art. Nr.: 19192302-001
S no: 530231.0010

Technical Information

• Rated Speed: 3000 min»¹
• Standstill Current: 2.04 A
• Peak Current: 7.0 A
• Standstill Torque: 3.18 Nm
• Rated Torque: 3.04 Nm
• Torque Constant: 1.63 Nm/A
• Flange Size: 105 mm
• Shaft Bore: 19 mm
• Number of Poles: 8
• Protection Class: IP64
• Shaft Structural Shape: B5
• Encoder: Resolver
• Plug Orientation: Vertical
