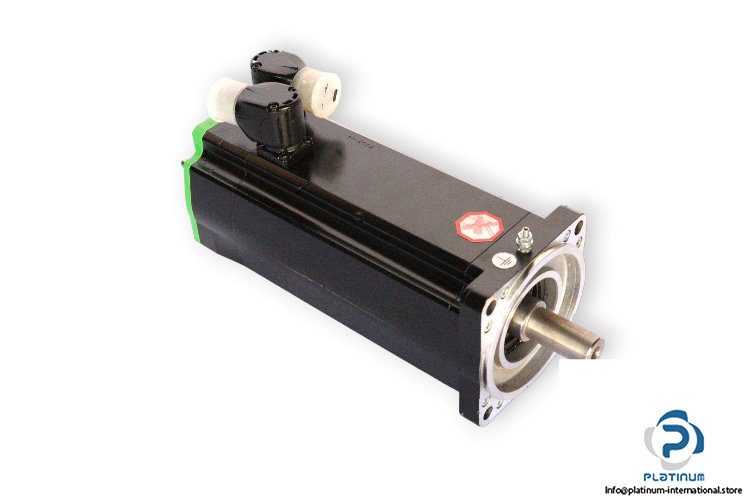

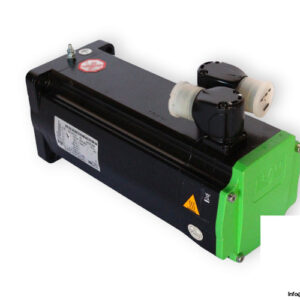

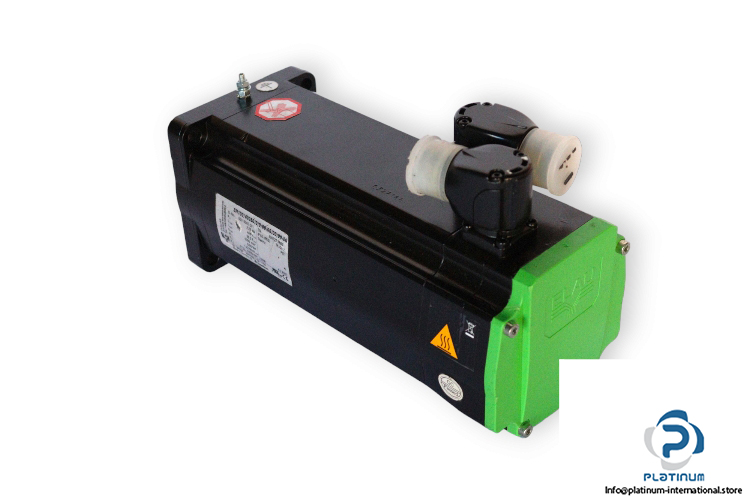

Elau Schneider SH100/40080 Servo Motor

The Elau Schneider SH100/40080 is a high-performance servo motor designed for precise motion control applications. With a rated power of 2.39 kW and a stall torque of 8.00 Nm, it offers high-speed capabilities up to 6000 rpm, ensuring smooth and reliable operation in industrial environments.

Manufacturer: Elau, Schneider

Type: Servo Motor

Model: SH100/40080/0/0/00/00/00/00/00

ID Number: 65013302-001

Ref No: E207686 / E211198

SN: 200727.1660

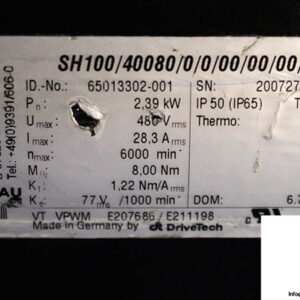

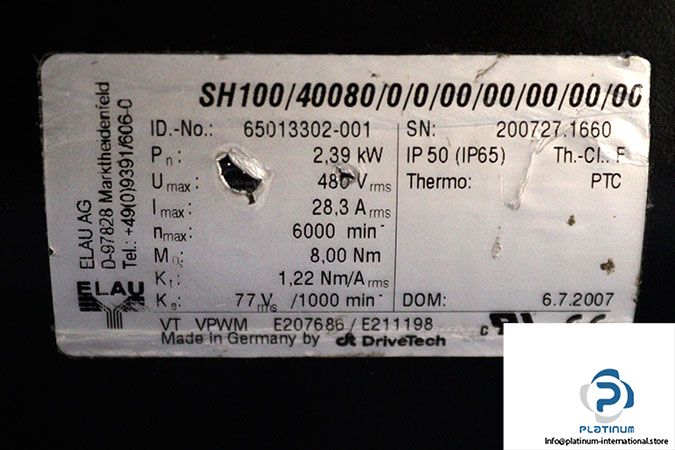

Technical Data:

• Rated Power: 2.39 kW
• Stall Torque: 8.00 Nm
• Max. Current: 28.3 A
• Max. Voltage: 480 V
• Max. Speed: 6000 rpm
• Torque Constant: 1.22 Nm/A
• Thermal Class: F
• Thermo Couple: PTC
• Voltage Constant: 77 V/min-1
• Protection Class: 50 (65 IP)
• Encoder Signal Form: Sine
• Encoder Supply Voltage: 7 / 12 V
• Encoder Supply Current: MAX 60 Ma (without Load)
