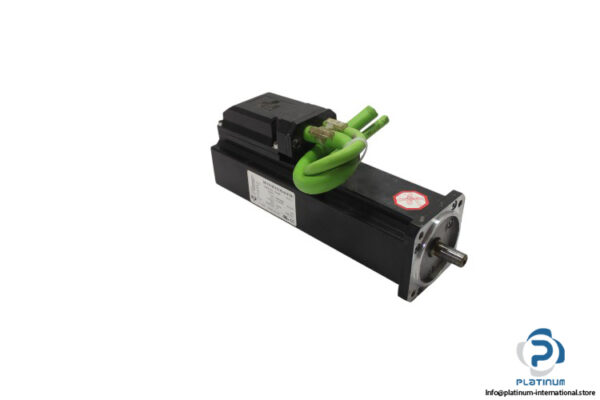

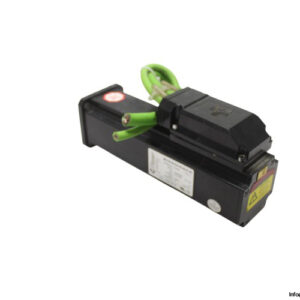

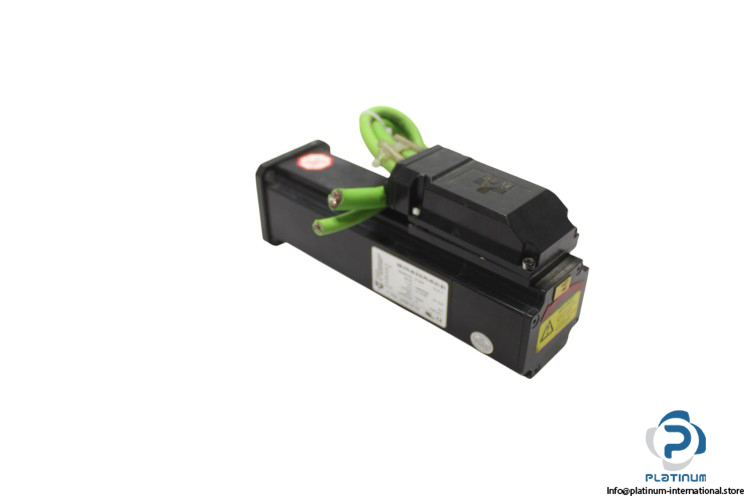

Elau SM 070-60-010-P0-45-S1-B1 Servo Motor
The Elau SM 070-60-010-P0-45-S1-B1 Servo Motor provides high efficiency and precise control in industrial applications. It is designed with a 70 mm flange size and a sin/cos single-turn encoder for precise motion control.

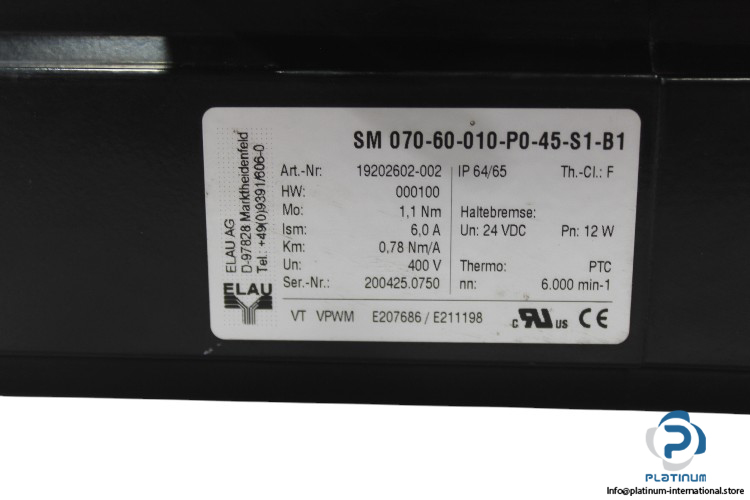

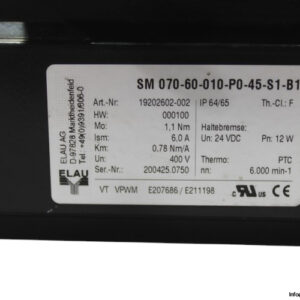

Manufacturer: Elau
Model: SM 070-60-010-P0-45-S1-B1
Art. Nr: 19202602-002
Serial No.: 200425.0750
Technical Information:
- Flange Size: 70 mm
- Shaft Groove: P0, without feather groove
- Brake Voltage: B1, with brake 24 V DC
- Encoder: S1, SinCos single-turn
- Rated Voltage: 400 V
- Rated Current: 6.0 A
- Rated Torque: 1.1 Nm
- Rated Speed: 6000 rpm
- Constant Torque: 0.78 Nm/A
- Nominal Power: 12 W
- Insulation Class: F
- Protection Class: 64/65 (IP)
