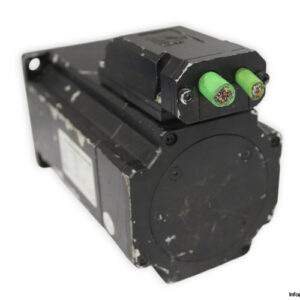

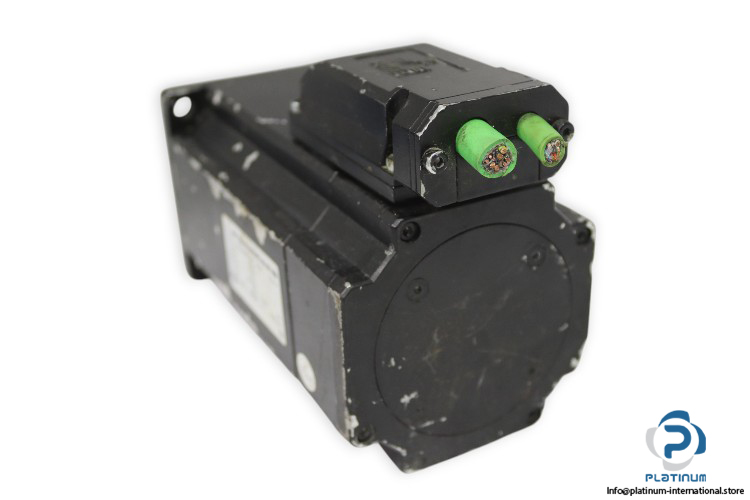

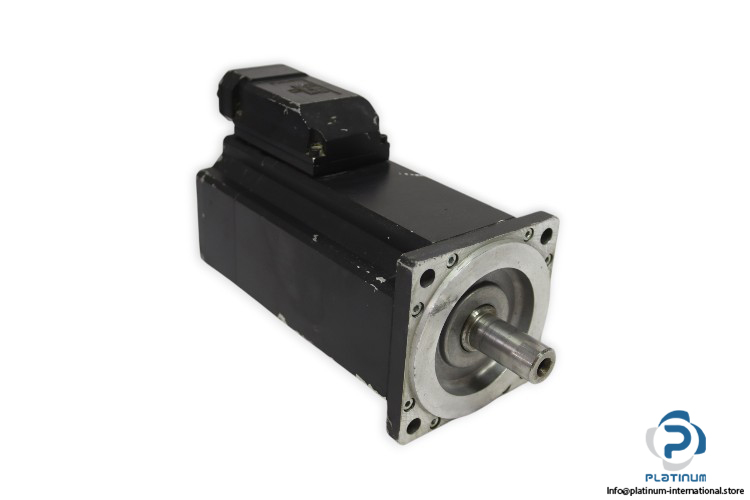

Elau SM 100-50-030-P0-44-S1-B0 Servo Motor
The Elau SM 100-50-030-P0-44-S1-B0 is a high-performance servo motor with a smooth shaft design, engineered for precision automation and motion control applications. With robust torque ratings, advanced thermal protection, and SinCos encoder feedback, it ensures reliability and accuracy in industrial environments.

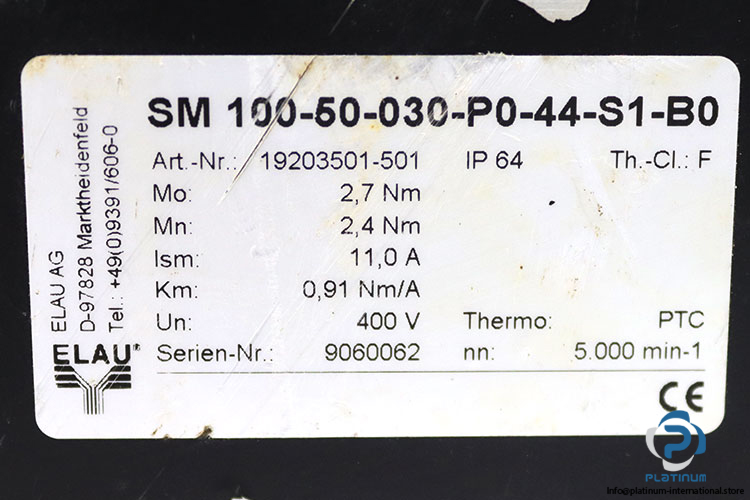

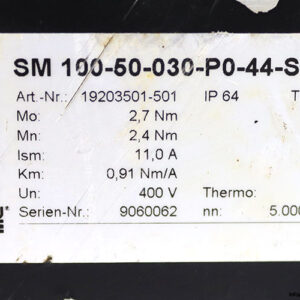

Manufacturer: Elau
Type: Servo Motor without feather groove smooth shaft
Model: SM 100-50-030-P0-44-S1-B0
Article Nr: 19203501-501
Serial No.: 9060062
Technical information
- Peak Torque (Mo): 2.7 Nm
- Rated Torque (Mn): 2.4 Nm
- Rated Current (Ism): 11 A
- Torque Constant (Km): 0.91 Nm/A
- Rated Voltage (Un): 400 V
- Rated Speed (nN): 5000 min»¹ (rpm)
- Insulation Class: F
- Thermal Protection: PTC (thermistor)
- Protection Class: IP64
- Size: 100 mm
- Encoder: S1, SinCos single-turn
