ELCIS 68-200-1828-B-CV-R-2.50 INCREMENTAL ENCODER

INCREMENTAL ENCODER

Elcis 68-200-1828-B-CV-R-2.50 encoder with solid shaft, bidirectional output, and 200 impulses. Features NPN, line-driver, and push-pull electronics, operating at 18“28 V and up to 300 kHz.

SKU: 980511 Category: Tags: , , , , , , , , , , , , , , , ,
In stock: 3 pcs
Very low
Hurry! Only 3 left in stock.
Add to quote

ELCIS 68-200-1828-B-CV-R-2.50 INCREMENTAL ENCODER

This high-precision incremental encoder from Elcis is engineered for accurate motion control and feedback applications. Designed with a robust solid shaft and reliable electronics, it supports bidirectional operation and delivers dependable performance in industrial environments.

Manufacturer: Elcis
Type: Incremental Encoder
Order Code: 68-200-1828-B-CV-R-2.50

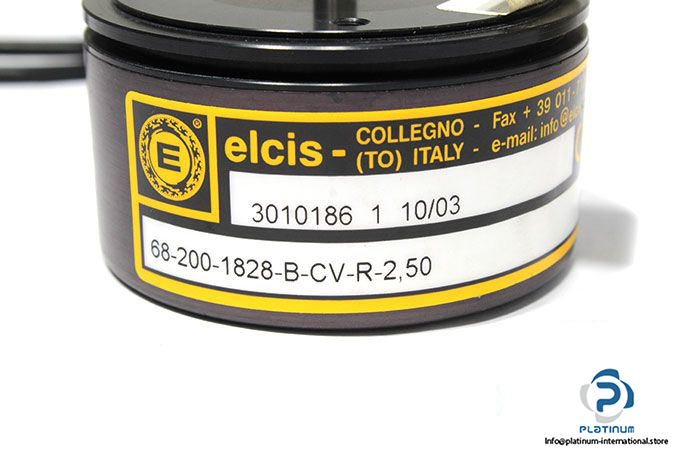

Part No.: 3010186 1 10/03

Technical Information

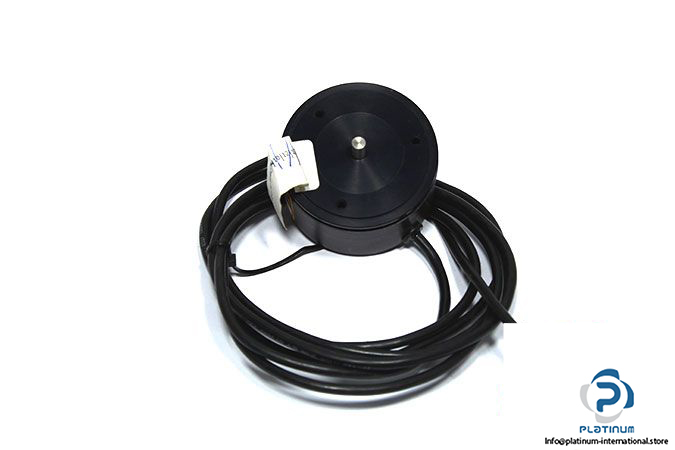

  • Shaft: Solid Shaft
  • Shaft Diameter: ø 6×10
  • Shaft Load: Max 2 kg
  • Impulse: 200

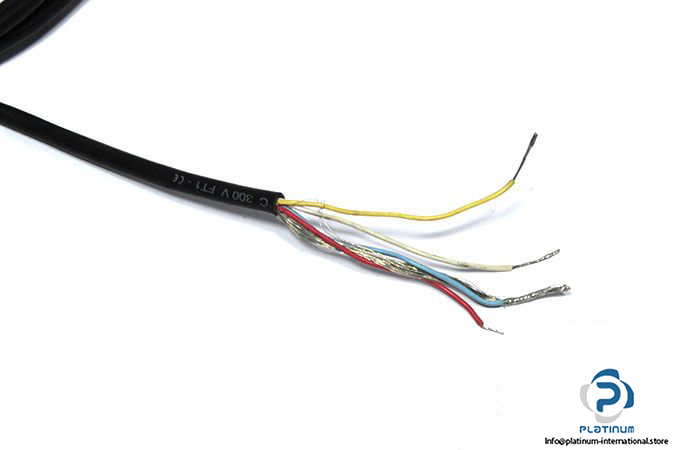

  • Connection: Radial Cable
  • Power Supply: 18 / 28 V
  • Version: Bidirectional
  • Cable Length: 2.5 m
  • Electronics: NPN, Line-driver, Push-pull
  • Frequency: Max. 300 kHz
  • Operating Temperature: 0 / 70°C
  • Dimensions: ø 68×37.5 mm “ IP53 to IP66
Weight0,24 kg
