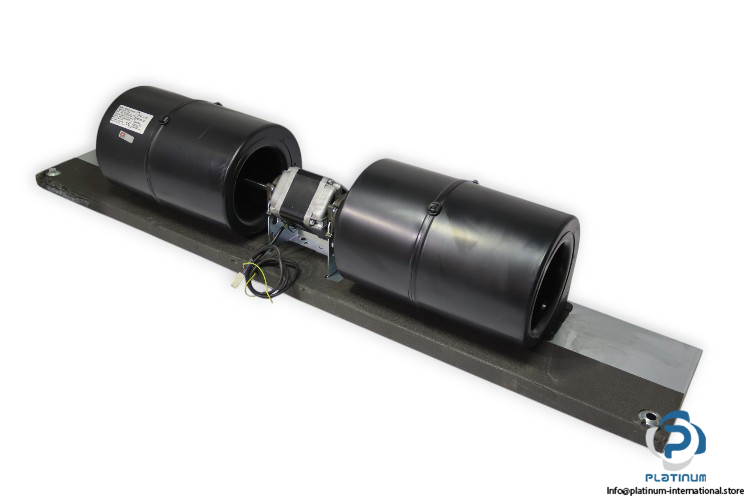

ELCO 3BTB-CO 70-45-0/7 BLOWER FAN

Designed for industrial-grade ventilation and air circulation, the Elco 3BTB-CO 70-45-0/7 Blower Fan features high durability and performance in demanding environments. This metal-constructed unit comes equipped with a high-efficiency capacitor and wide temperature range support, ideal for HVAC and machine cooling systems.

Manufacturer: Elco
Type: Blower Fan

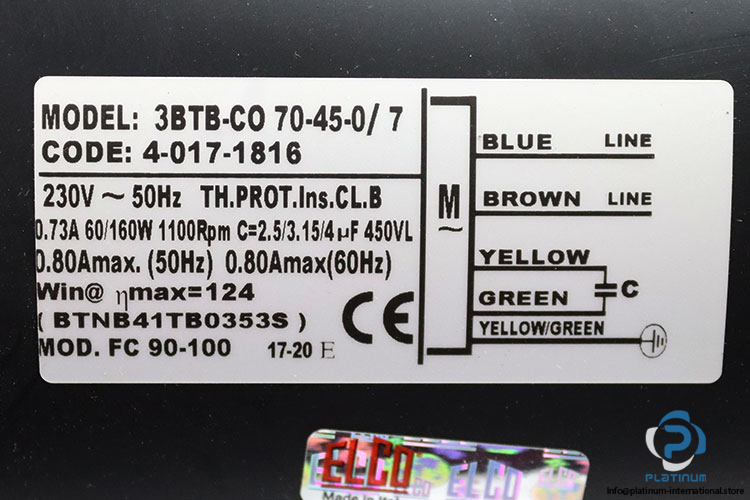

Model: 3BTB-CO 70-45-0/7

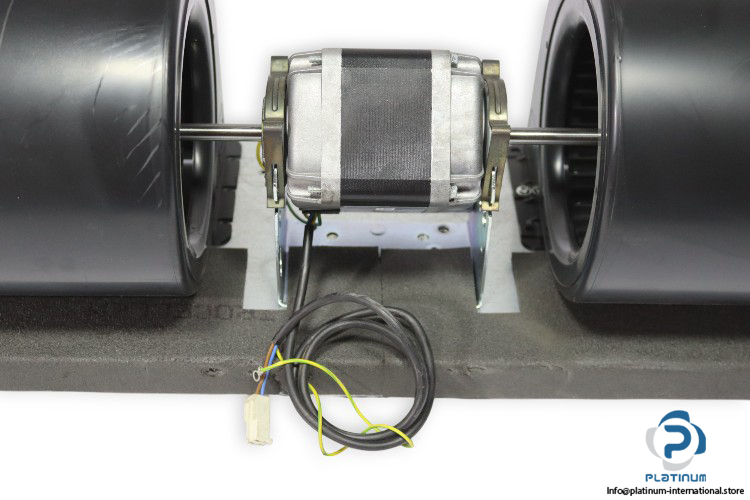

Motor Part No.: BTNB41TB0353S / FC 90-100
Code: 4-017-1816 / 17-20 E

Technical Information

• Exit Dimensions (mm): 190×290
• Current: 0.73 A
• Voltage: 230 V
• Power: 60/160 W
• Speed: 1100 rpm
• Capacitor Capacity: 2.5 / 3.15 / 4 μF @ 450 V
• Max Current: 0.80 A
• Win @ Efficiency: 124
• Frequency: 50/60 Hz
• Inverter: Without Inverter
• Blade / Housing Material: Metal / Metal
• Class: B

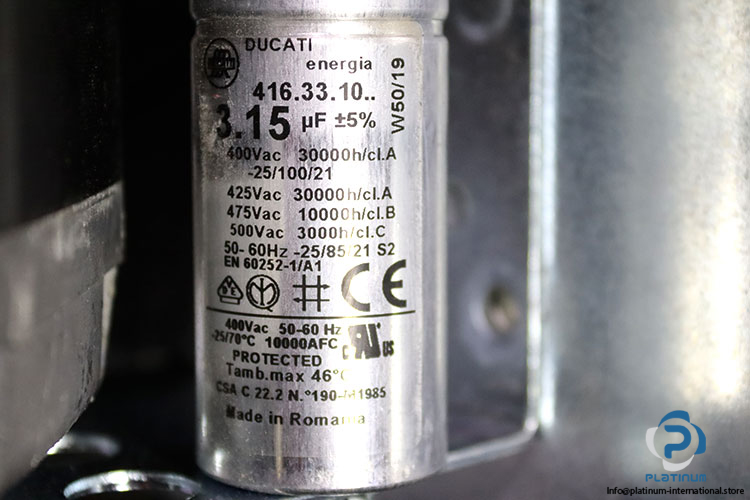

• Attached Capacitor: DUCATI ENERGIA 416.33.10
• Capacitor Voltage Ratings:
  – 425 V AC, 30000H/CL.A
  – 475 V AC, 10000H/CL.B
  – 500 V AC, 3000H/CL.C
• Capacitor Frequency: 50“60 Hz @ 400 V AC
• Operating Temperature: -25°C to 70°C (max 46°C)
• Duty Cycle: S2
