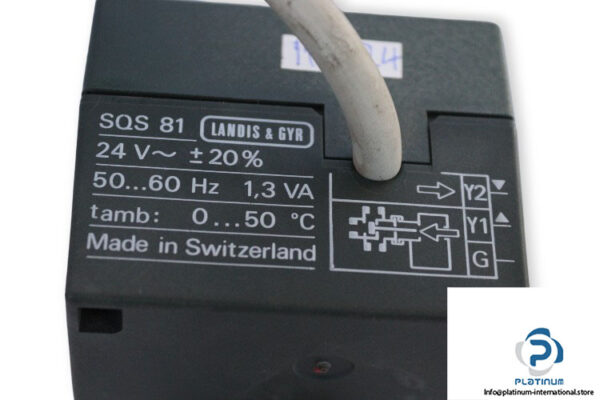

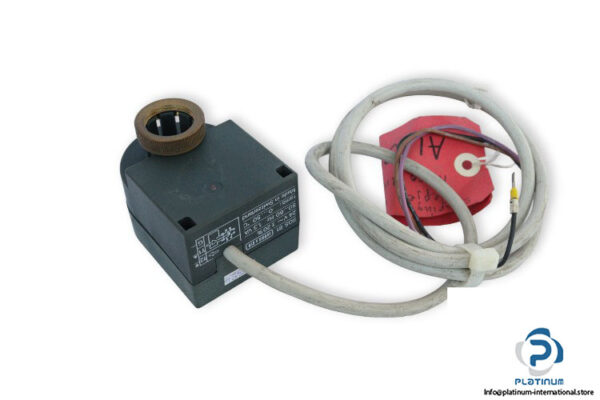

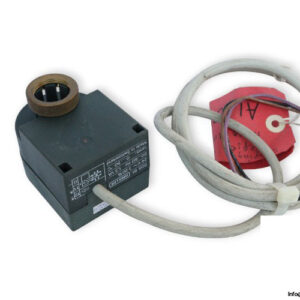

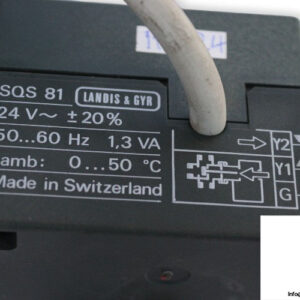

Manufacture: Landis & Gyr
Type: Valve Actuator
Model: SQS81

Operating voltage: 24 V AC
Frequency: 50/60 Hz
No. of position control: 3-position control signal
Power consumption: 1.3 VA
Contact rating: 24 … 250 V AC,10 A(Res),3 A(Ind)
Running time: 150s
Nominal stroke: 5.5 mm
Degree of protection: IP40
Operation temperature: 0 … 50°C
Dimensions: 61 x 116 x 157 mm
