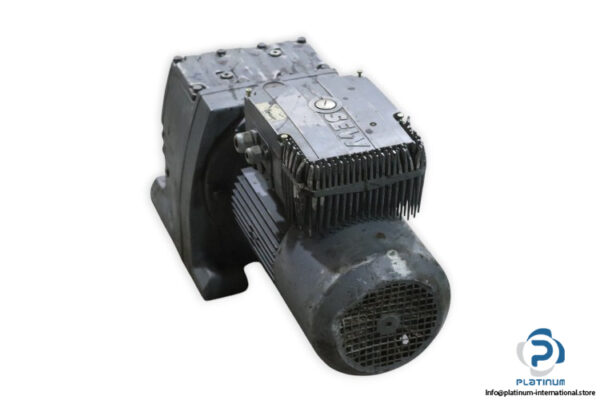

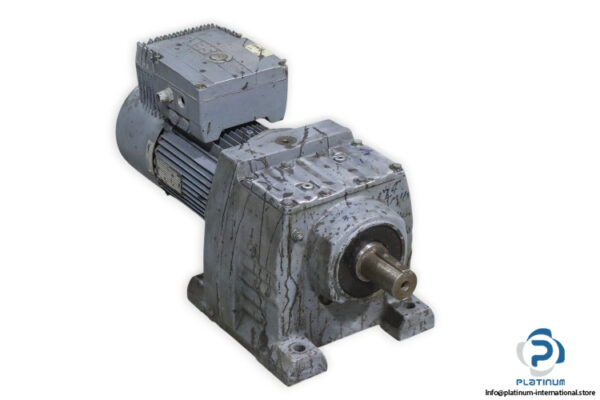

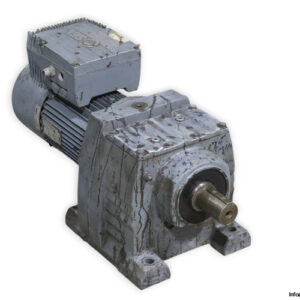

SEW R87 DT100LS-4/BMG/MM30 Helical Gearmotor with MM30B-503-00 Inverter Drive

The SEW R87 DT100LS-4/BMG/MM30 is a powerful and efficient helical gearmotor designed for continuous duty operation. It offers reliable geared performance with integrated braking and comes equipped with the SEW-EURODRIVE MM30B-503-00 inverter drive for precise control and flexibility in industrial applications.

Manufacturer: SEW
Type: Helical Gearmotor
Model: R87 DT100LS-4/BMG/MM30
Part No.: 380 05676.0001
Code: 3205677461.99/185 353 8.11
J&W BENDER: 05170
Brake: 110 V AC / 20 Nm

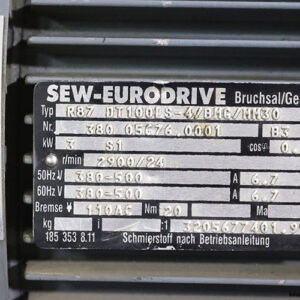

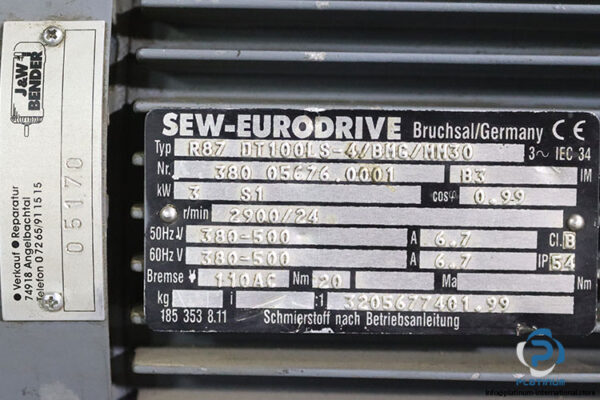

Technical information “ Gearmotor

• Power (Pn): 3 kW
• Duty: S1 (continuous duty)
• Speed: 2900 / 24 rpm (geared output)
• Voltage: 380 to 500 V (50 Hz / 60 Hz)
• Current: 6.7 A
• Power Factor Cos φ: 0.99
• Mounting: IM B3
• Class: B
• IP Rate: IP54

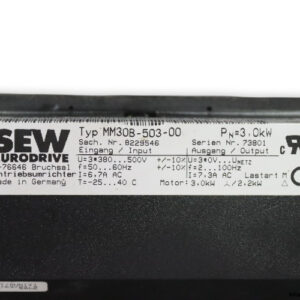

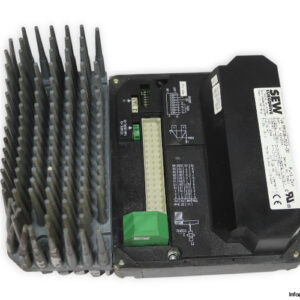

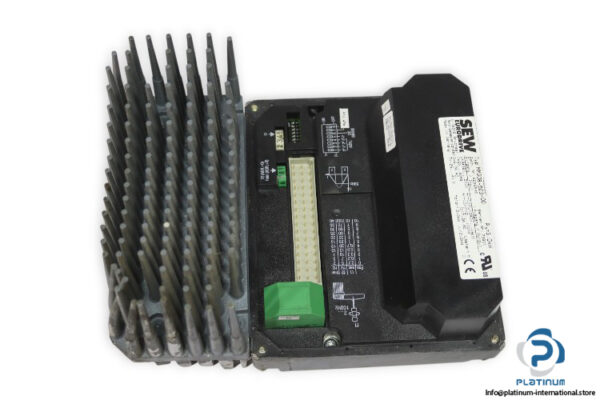

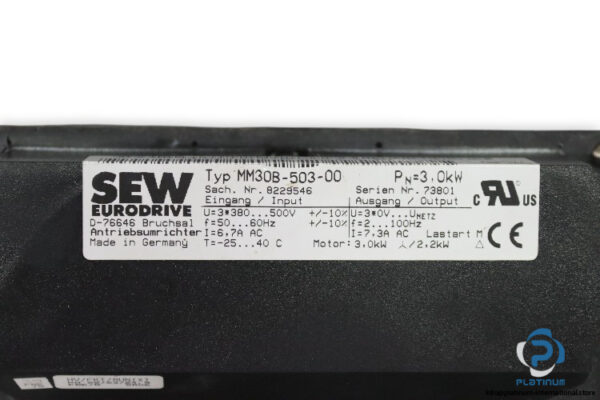

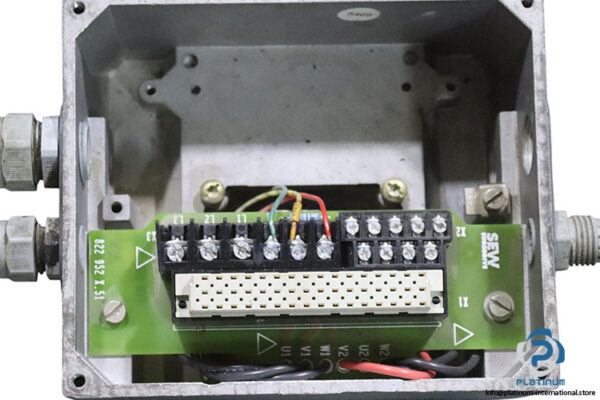

Technical information “ Inverter Drive (SEW-EURODRIVE MM30B-503-00)

• Sach Nr.: 8225456
• Serial Nr.: 73801
• Rated Power (Pn): 3.0 kW
• Input Voltage: 3 × 380 / 500 V ± 10 %
• Input Frequency: 50 / 60 Hz
• Input Current: 6.7 A AC
• Output Voltage: 3 × 0 / supply voltage
• Output Frequency: 2 / 100 Hz adjustable
• Output Current: 7.3 A AC
• Motor Compatibility: 3.0 kW (up to 2.2 kW under load)
• Operating Temperature: -25 °C to +40 °C
