ABB MC23ASR0006 SERVO MOTOR WITH GELMA INCREMENTAL ENCODER

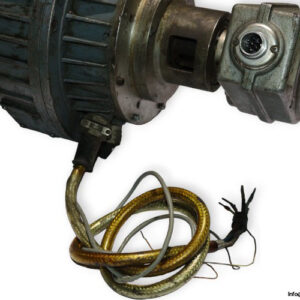

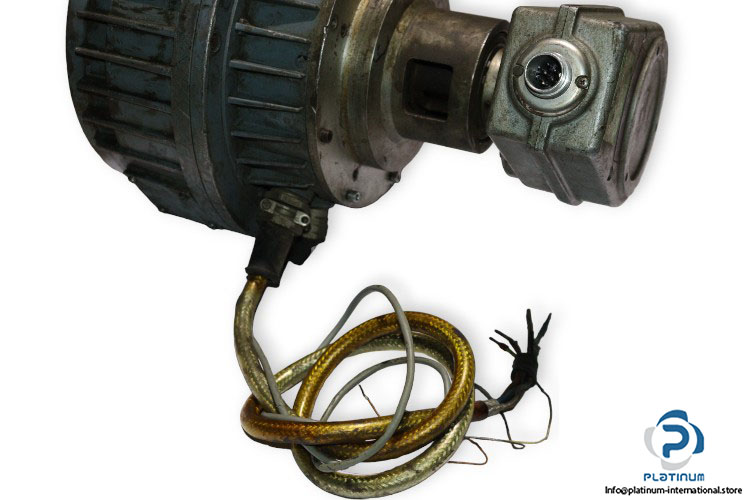

The ABB MC23ASR0006 servo motor is engineered for continuous-duty performance and precision in automation systems. This model includes a Gelma MBB LG310-432-55/26 incremental encoder with a hollow-shaft design, ensuring high-speed feedback and control.

Manufacturer: ABB
Type: Servo Motors
Model: MC23ASR0006
Part No.: 325688
Ref No.: 06/89

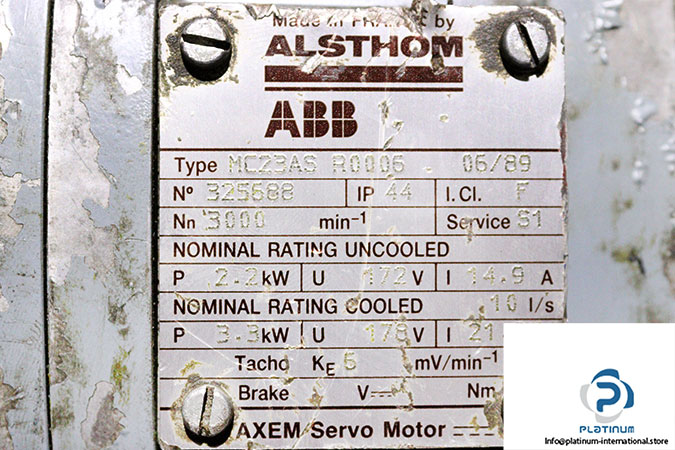

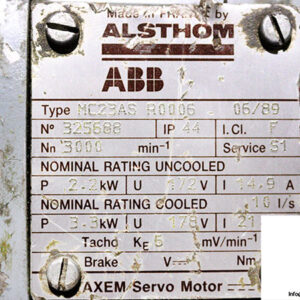

Technical Information

• Normal Rating: Uncooled / Cooled
• Rated Power [kW]: 2.2 / 3.3
• Rated Voltage [V]: 172 / 178
• Rated Current [A]: 14.9 / 21.8
• Rated Speed [rpm]: 3000
• Insulation Class: F
• Duty: S1
• Protection Class [IP]: 44
• Constant Voltage [mV/rpm]: 5

Rotational Encoder Information

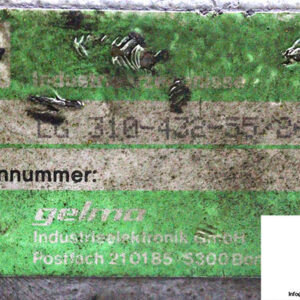

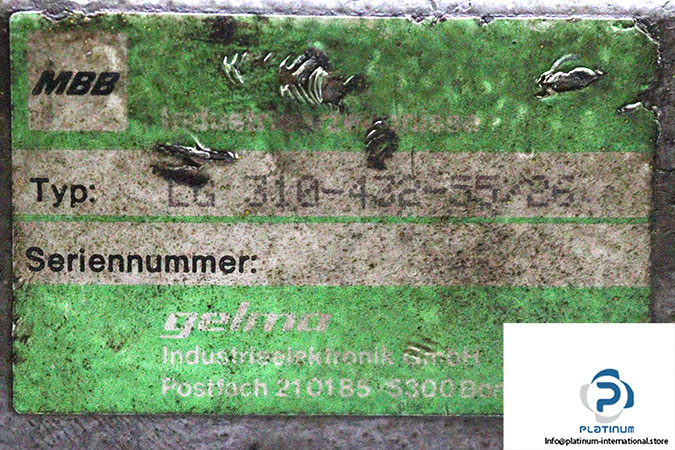

Attachment: Gelma MBB LG310-432-55/26 Incremental Rotational Encoder

• Manufacturer: Gelma MBB
• Type: Incremental Rotational Encoder
• Model: LG310-432-55/26
• Design: Hollow-Shaft
• Frequency [Hz]: 15000
• Speed [rpm]: 5000 / 7500
• Voltage [Vdc]: 10 / 24
