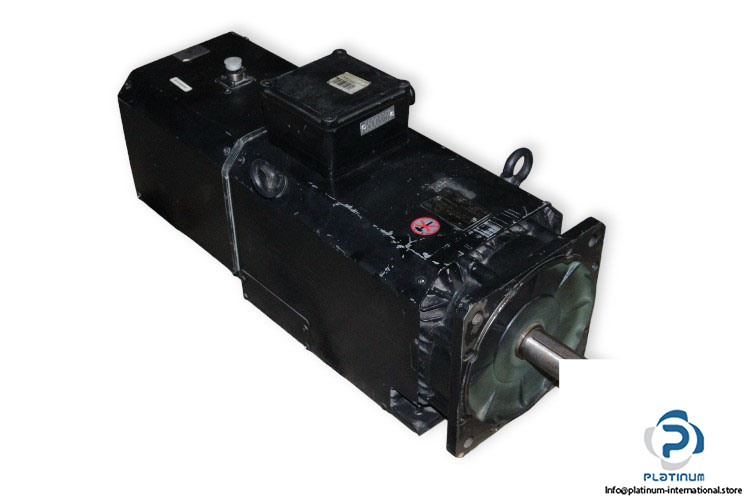

ATB BKUVF132M/4B-11B Servo Motor

The ATB BKUVF132M/4B-11B servo motor is a high-performance motor ideal for precise industrial applications. With a rated power of 18.5 kW and a wide speed range of 1500 to 6000 rpm, this motor is engineered to deliver reliable performance in demanding environments.

Manufacturer: ATB

Type: Servo Motor

Model: BKUVF132M/4B-11B

Part No.: 3872658-1

Ref No.: S10 455012F / PTC-KTY-MIKR0SCHAL TER C

Technical Data:

• Rated Voltage: 380 V
• Rated Power: 18.5 kW
• Rated Current: 41.0 A
• Rated Speed: 1500-6000 rpm
• Frequency: 50 Hz
• Duty: S1
• Power Factor: 0.78
• Protection Class (IP): 54
• Insulation Class: F
• Mounting Position: B35

Encoder:

• Voltage: 400 V Star
• Power: 156/217 W
• Current: 0.26/0.33 A
• Frequency: 50/60 Hz

Brake:

• Voltage: 24 Vdc
• Torque: 150 Nm
• Current: 3.5 A
