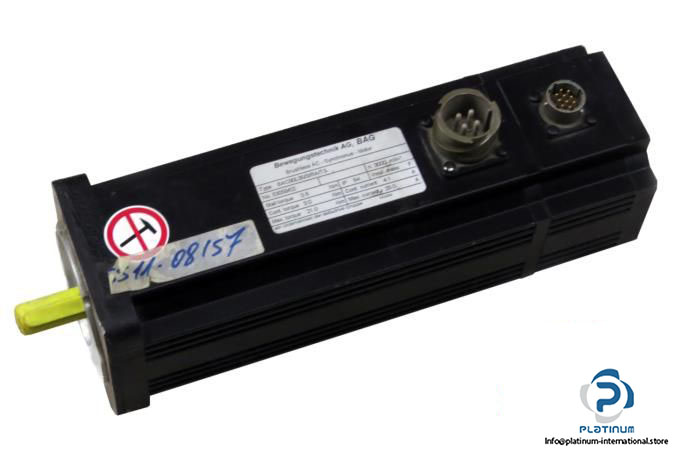

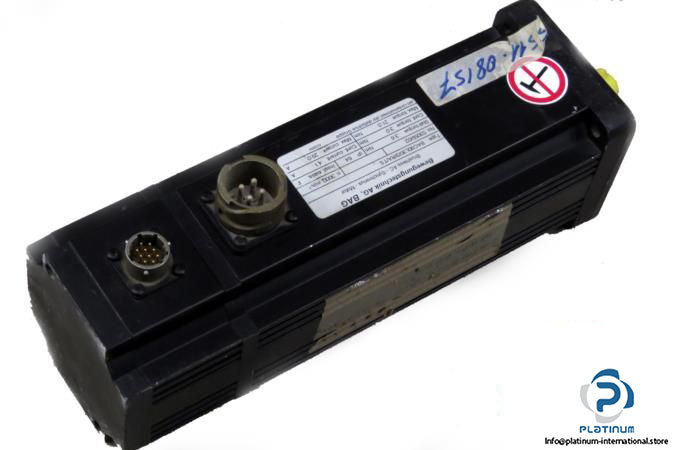

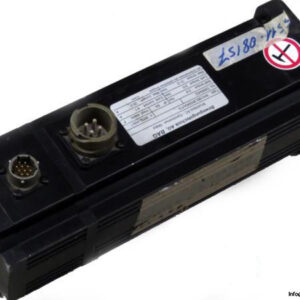

BEWEGUNGSTECHNIK AG BAC90L30/3/RA/TS SERVO MOTOR

The BAC90L30/3/RA/TS brushless AC synchronous servo motor from Bewegungstechnik AG (BAG) is engineered for high-precision industrial automation applications. With its high stall and peak torque, it ensures efficient and accurate motion control across various dynamic loads.

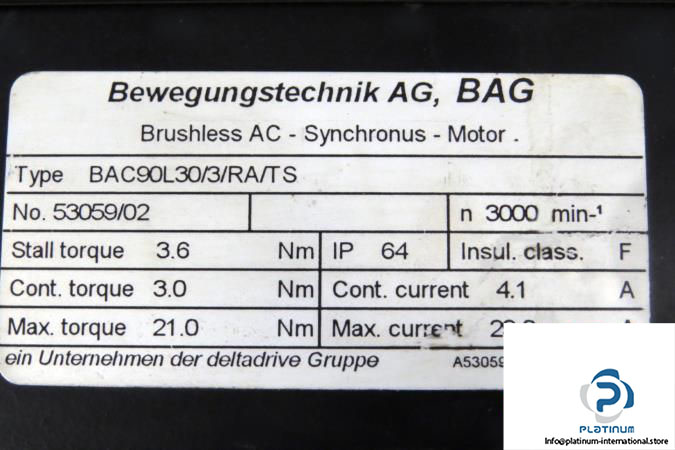

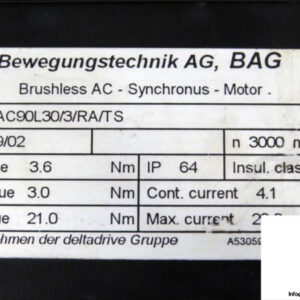

Manufacturer: Bewegungstechnik AG, BAG
Type: Brushless AC Synchronous Servo Motor
Model: BAC90L30/3/RA/TS
Part No.: 53059/02

Technical Information

• Speed: 3000 min^-1
• Stall Torque: 3.6 Nm
• Continuous Torque: 3 Nm
• Maximum Torque: 21 Nm
• Continuous Rated Current: 4.1 A
• Maximum Rated Current: 29 A
• Protection Class: IP64
