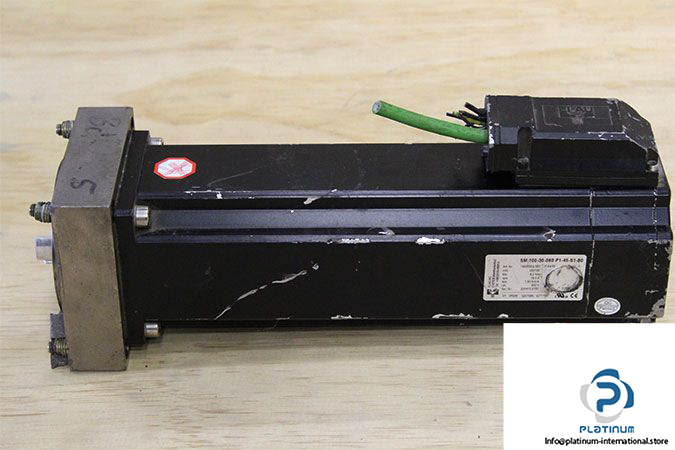

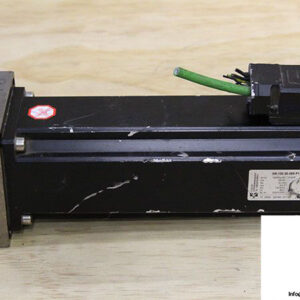

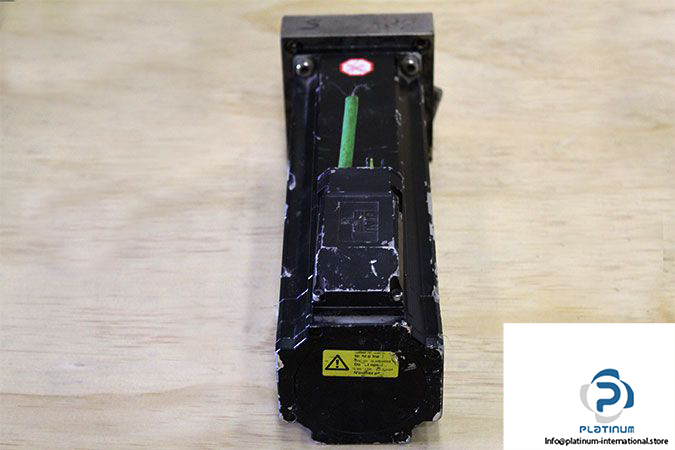

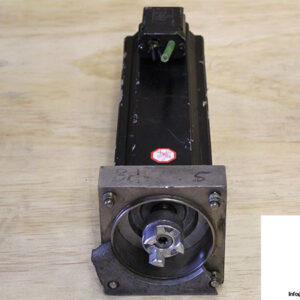

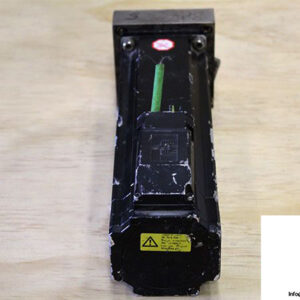

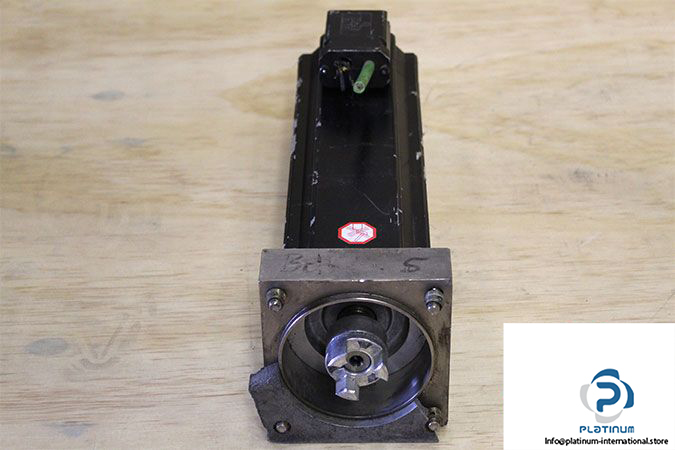

ELAU AG / Schneider Electric SM-100-30-080-P1-45-S1-B0 Servo Motor

The ELAU AG / Schneider Electric SM-100-30-080-P1-45-S1-B0 Servo Motor is a high-performance motor designed for precision applications. With a rated voltage of 400 V and a peak motor current of 18.0 A, it delivers excellent torque and speed performance. This motor is ideal for demanding industrial automation systems where efficiency and durability are crucial.

Manufacturer: ELAU AG / SCHNEIDER ELECTRIC

Type: Servo Motor

Model: SM-100-30-080-P1-45-S1-B0

Atr. No: 19203304-503

Serial Number: 200410.2150 / VT VPWM E207686 / E211198

Hardware Code: 000100

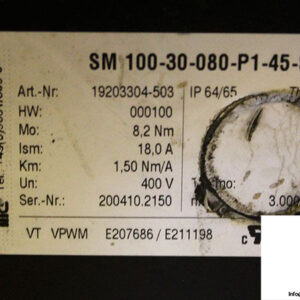

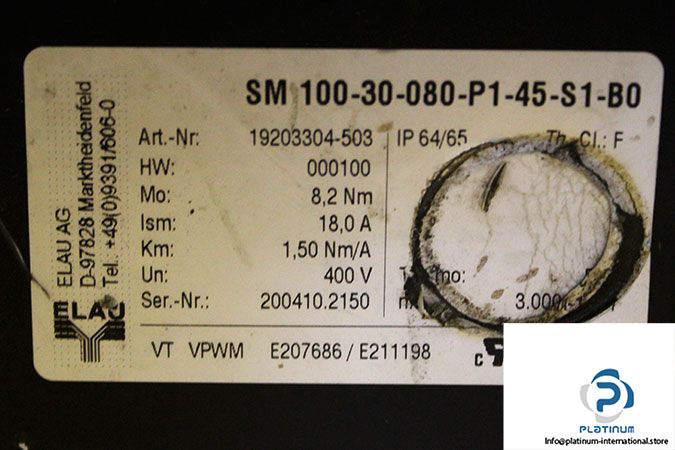

Technical Data:

• Rated Voltage: 400 V
• Peak Motor Current (ISM): 18.0 A
• Speed: 3000 RPM (Revolutions per Minute)
• Torque Constant of The Motor (KM): 1.50 Nm/A
• Nominal Torque: 8.2 Nm
• Flange Size: 100 mm
• Encoder: SinCos Single-Turn
• Insulation Class: F
• Protection Class: IP 64/65
