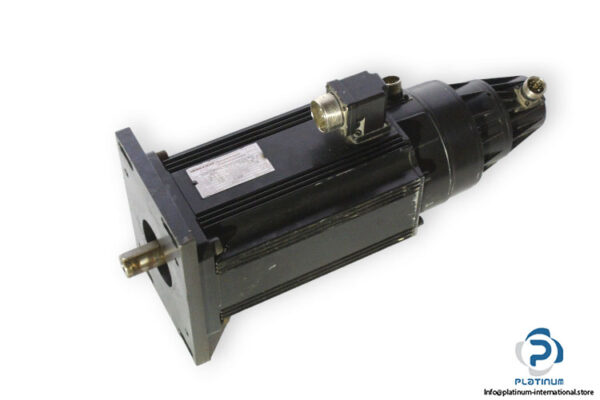

INDRAMAT MAC093B-0-JS-4-C/130-A-0 SERVO MOTOR WITH HEIDENHAIN ROD-1424.003 500 ENCODER
The Indramat MAC093B-0-JS-4-C/130-A-0 is a high-performance servo motor designed for demanding automation systems, offering robust torque and fast acceleration. Paired with a precise Heidenhain encoder, it delivers superior motion control and reliability in industrial applications.
Manufacturer: Indramat
Type: Servo Motor
Model: MAC093B-0-JS-4-C/130-A-0/WI517LX/S001
Ref No.: 311914 36.91 / 23694

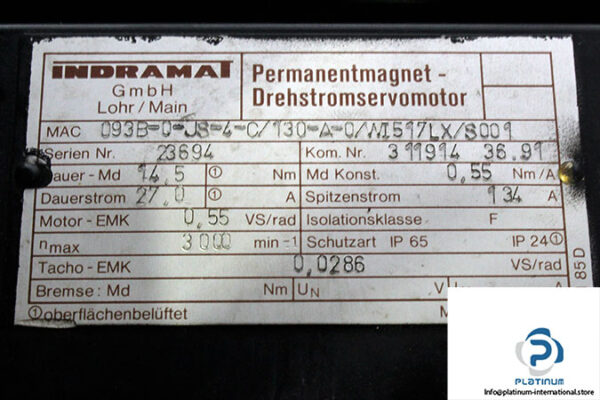

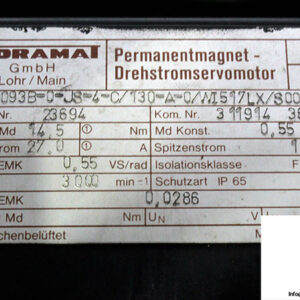

Technical Information
- Still Torque (Nm): 14.5
- Rated Current (A): 27
- Peak Current (A): 134
- Rated Speed (RPM): 3000
- Thermal Class: F
- Protection Class (IP): 65/24

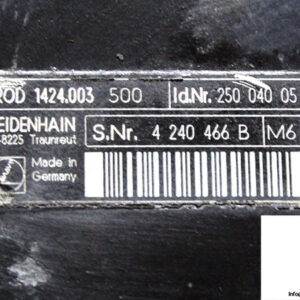

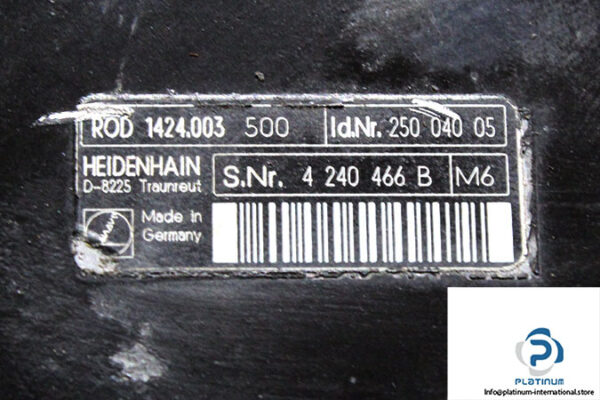

Integrated Encoder
Manufacturer: HEIDENHAIN
Type: Encoder
Model: ROD-1424.003 500
ID: 250 040 05
Ref No.: 4 240 466 B M6
