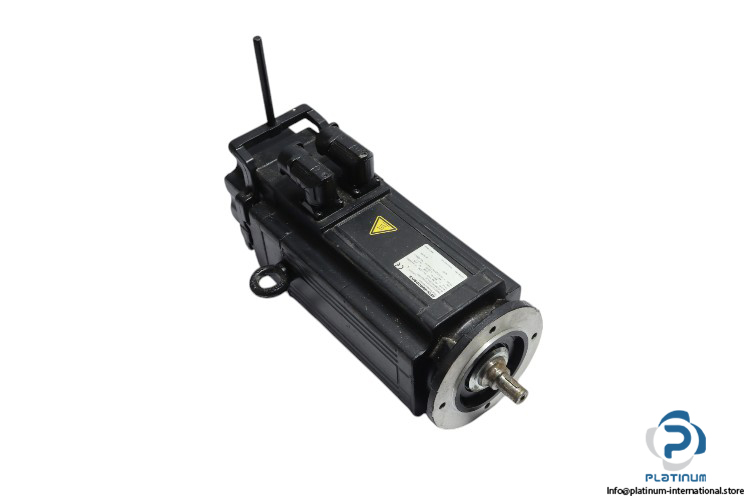

SEW CMPZ71S Servomotor

The SEW CMPZ71S Servomotor is a high-performance motion control solution designed for precision and efficiency. With a rated speed of 3000 rpm and a standstill torque of 6.40 Nm, this servomotor ensures reliable operation in demanding industrial applications. Built with an IP65 enclosure and a high thermal class, it offers durability and long-term performance.

• Manufacturer: SEW
• Type: Servomotor
• Model: CMPZ71S/BY/HR/KY/AK1H/SB1
• Part No: 65.7743967001.0001.19

Technical Specifications

• Rated Speed (nN): 3000 rpm
• Standstill Torque (M0): 6.40 Nm
• Max. Limit Torque (Mpk): 19.20 Nm
• Standstill Current (I0): 4.90 A
• Max. Permitted Current (Imax): 25.00 A
• Cyclic Duration Factor: S1
• Motor Voltage: 400 V
• Max. Permitted Frequency: 250 Hz
• Thermal Class / Enclosure: F / IP65
• Plug Connector: SB1
• Brake Type: BY / HR – Manual Brake Release, Self-Reengaging
• Brake Voltage / Torque: 230V AC / 14 Nm
• Brake Rectifier: BMK1.5
• Mounting Position: B5
• Output Shaft End: Pinion Spigot 14 mm
• Flange: 120 mm Hole Pattern in Axis Cross
