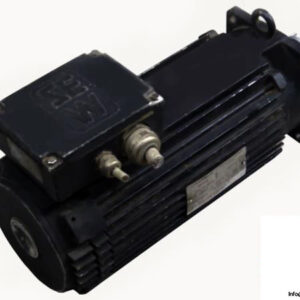

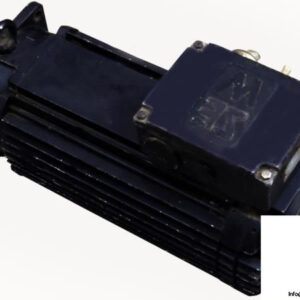

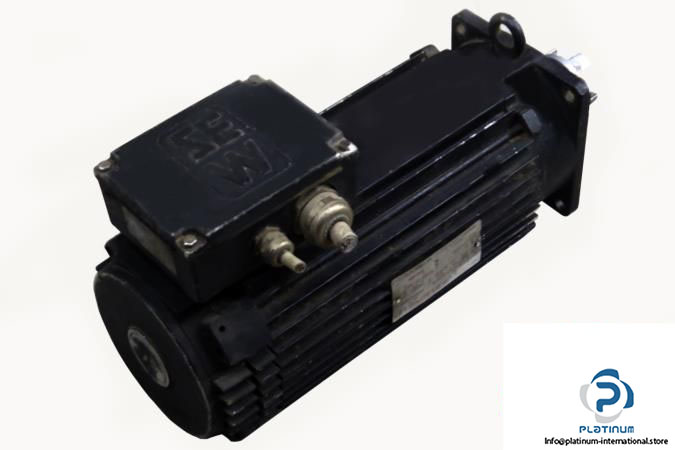

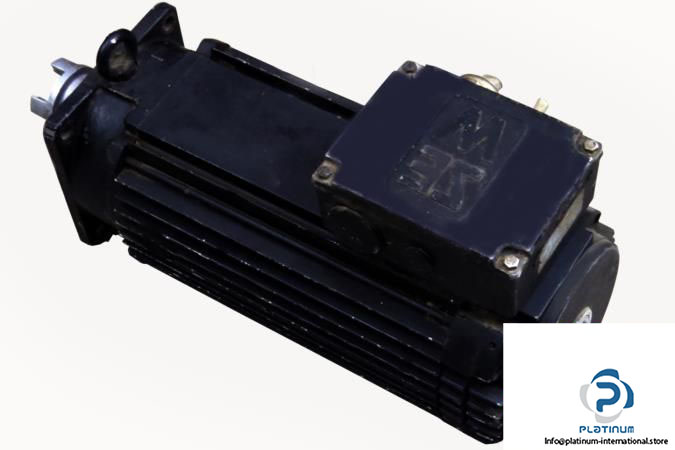

SEW DFY90L/TH SERVO MOTOR


SEW DFY90L/TH SERVO MOTOR

SERVO MOTOR

The SEW EuroDrive DFY90L/TH is a 9.7 kW servo motor with 18 Nm torque, 400 V rating, and IP65 protection. It features a B5 mounting, 2000 RPM speed, and precision keyway shaft for industrial automation.

SKU: 441532 Category: Tags: , , , , , , , , , , , , , , , , ,
In stock: 2 pcs
Very low
Hurry! Only 2 left in stock.
Add to quote

SEW EURODRIVE DFY90L/TH SERVO MOTOR

The SEW EuroDrive DFY90L/TH is a high-performance servo motor engineered for demanding industrial automation applications. With superior power, speed, and protection class, this motor is ideal for precision control systems that require efficiency and durability.

Manufacturer: SEW EuroDrive
Type: Servo Motor
Model: DFY90L/TH

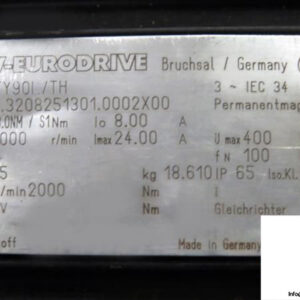

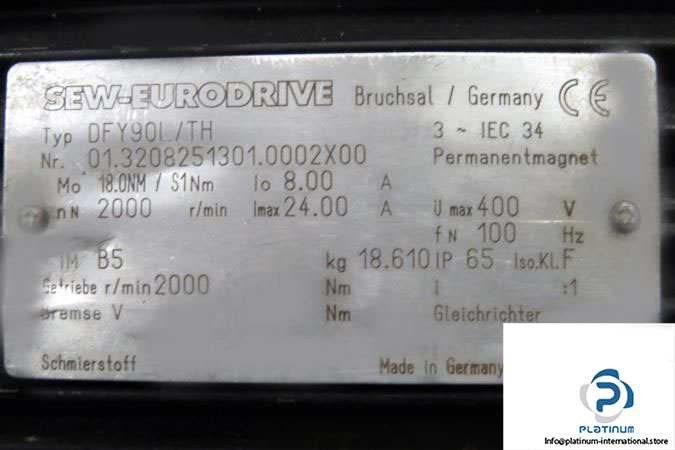

Part No.: 01.3208251301.0002X00

Technical Information

  • Mounting Position: B5
  • Mounting Position / IM: B5
  • Terminal Box Position / Cable Entry: 270° / Normal
  • Output Shaft: 24x50mm length with keyway
  • Flange: 140mm edge length
  • Power: 9.7 kW
  • Speed: 2000 min»¹
  • Stall Current: 8 A
  • Rated Current Max.: 24 A
  • Torque: 18 Nm
  • Voltage: 400 V
  • Frequency: 100 Hz
  • Protection Class: IP65
Weight 26,4 kg
Condition

Used
Manufacturer

Sew Eurodrive
Type of Product

Servo Motor
Shelf No.

250703
Model

DFY90L/TH
