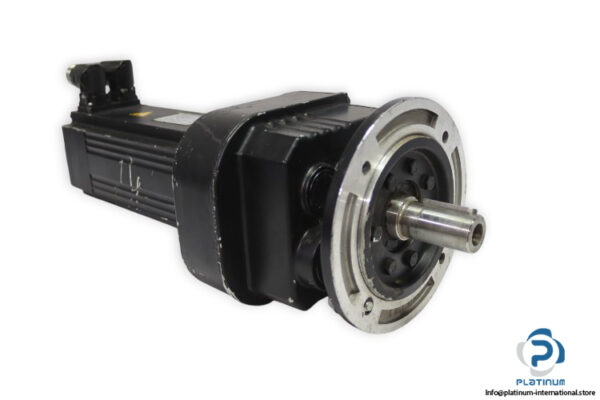

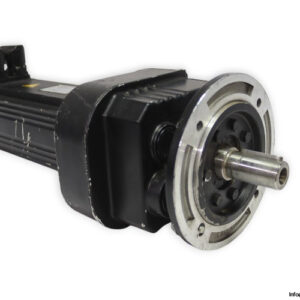

SEW RF27 CMP63M/KY/RH1M/SM1 Servo Motor with Gear

The SEW RF27 CMP63M/KY/RH1M/SM1 is a high-performance servo motor combined with a precision gear unit, engineered for industrial automation and motion control. With strong torque capacity, high speed, and IP65 protection, it provides reliable operation in demanding environments.

Manufacturer: SEW
Type: Servo Motor with Gear
Model: RF27 CMP63M/KY/RH1M/SM1
Part No.: 50.1732545001.0004.11
Code: 360293 / 13339303

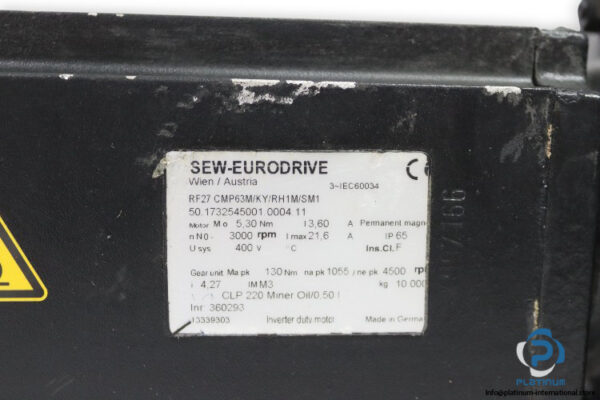

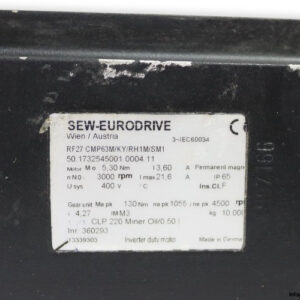

Technical information

• Motor Torque (Mo): 5.30 Nm
• Rated Current (Io): 13.60 A
• Rated Speed (nN): 3000 rpm
• Max Current (Imax): 21.6 A
• Voltage (U): 400 V
• Insulation Class: F
• Protection Class: IP65

Gearbox Data

• Gear Unit Type: RF27
• Max Torque (Ma pk): 130 Nm
• Nominal Torque (Na pk): 1055 Nm
• Max Speed (n pk): 4500 rpm
• Ratio: i = 4.27
• Mounting: IM M3
• Lubrication: CLP 220 Mineral Oil, 0.50 L
