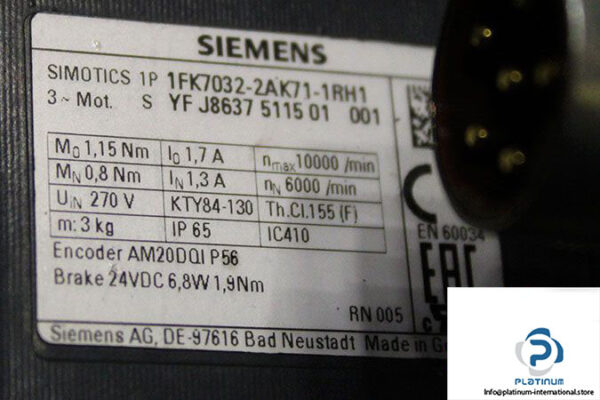

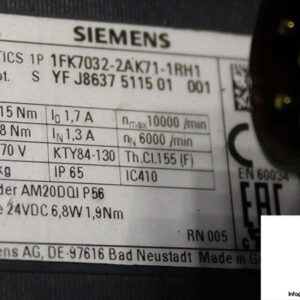

SIEMENS 1FK7032-2AK71-1RH1 SYNCHRONOUS SERVO MOTOR

Part of the high-efficiency SIMOTICS range, the Siemens 1FK7032-2AK71-1RH1 synchronous servo motor delivers powerful torque and high-speed operation for precision industrial automation. With compact frame size and integrated brake system, this motor is ideal for demanding motion control systems requiring performance and durability.

Manufacturer: Siemens
Type: Synchronous Servo Motors
Model: 1FK7032-2AK71-1RH1
Range: SIMOTICS
Series: 7
Frame Size: 03
Length: 2
Reference No.: J8637 5115 01 001

Technical Information

• Rated Voltage: 270 V
• Static Torque: 1.15 Nm
• Rated Torque: 0.8 Nm
• Rated Current: 1.3 A
• Stall Current: 1.7 A
• Rated Speed: 6000 rpm
• Maximum Speed: 10000 rpm
• Efficiency: 88.0%
• Brake Voltage: 24 VDC
• Brake Power: 6.8 W
• Brake Torque: 1.9 Nm
• Encoder: Am20DQIP56
• Protection Class: IP65
• Insulation Class: F
