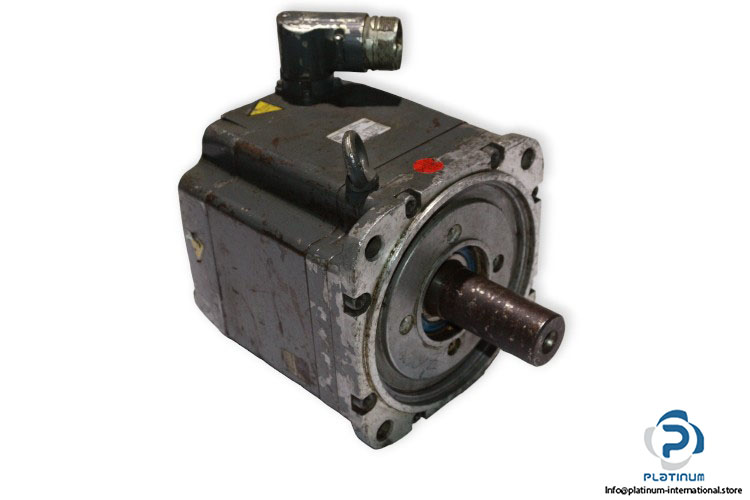

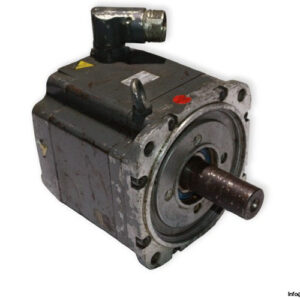

SIEMENS 1FK7103-2AF71-1BG0 SERVO MOTOR

The Siemens 1FK7103-2AF71-1BG0 servo motor is built for precise motion control in industrial automation. With robust torque output and a high IP64 protection class, it delivers stable and efficient operation in demanding environments. Equipped with AS24DQI P03 encoder for reliable positioning.

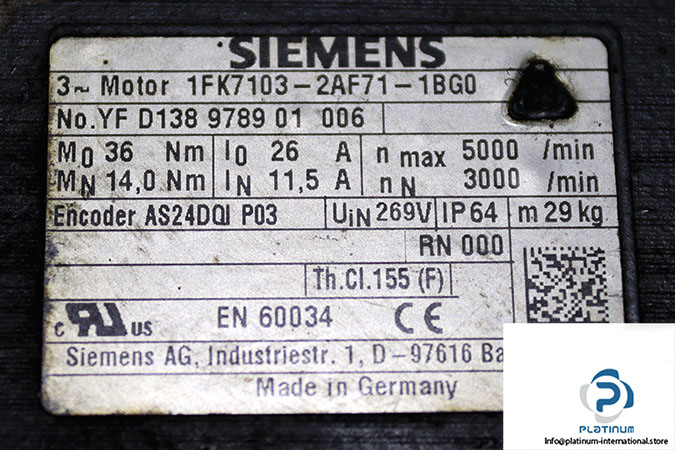

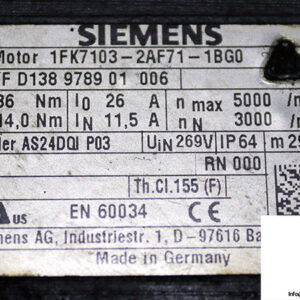

Manufacturer: Siemens
Type: Servo Motors
Model: 1FK7103-2AF71-1BG0
No yf: D138 9789 01 006
Encoder: AS24DQI P03

Technical Information

• Rated Voltage: 269 VDC
• Rated Torque: 14 Nm
• Stall Torque: 36 Nm
• Rated Current: 26 A
• Stall Current: 11.5 A
• Rated Speed: 3000 rpm
• Stall Speed: 5000 rpm
• Protection Class: IP64
• Insulation Class: F
