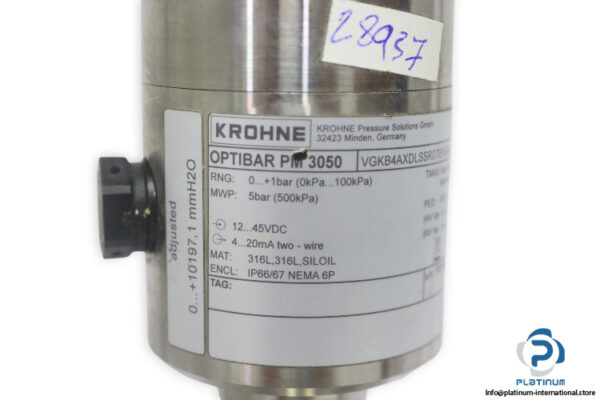

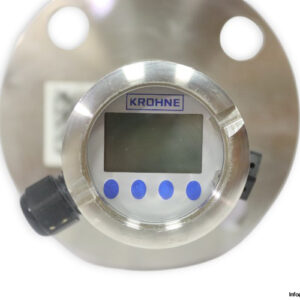

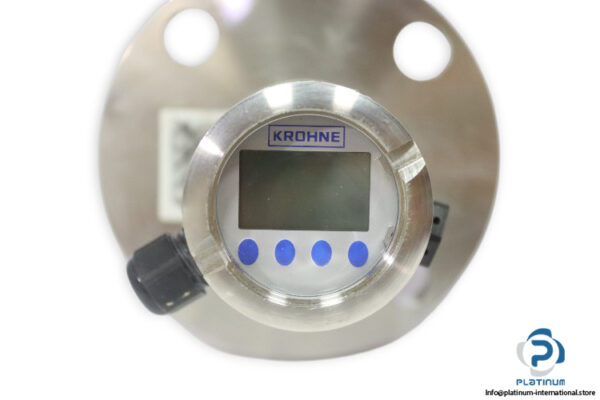

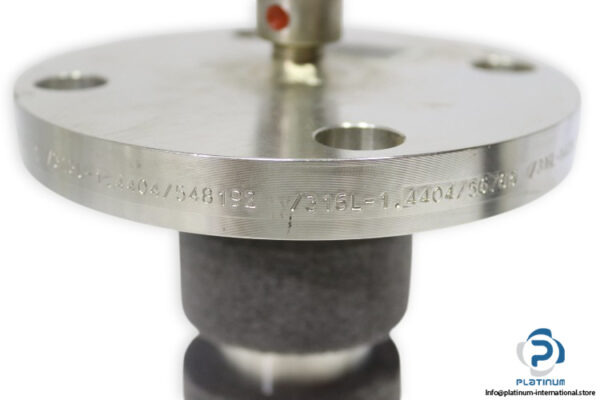

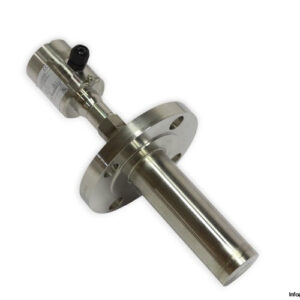

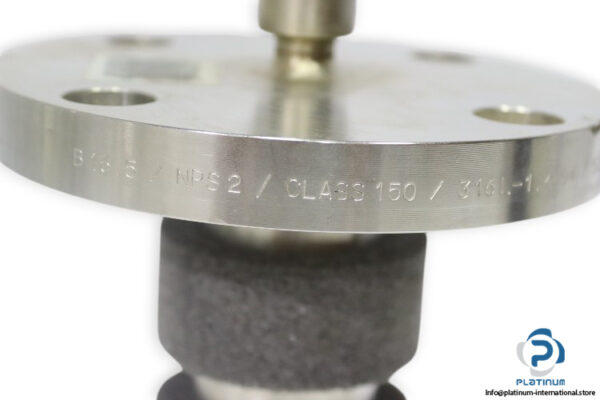

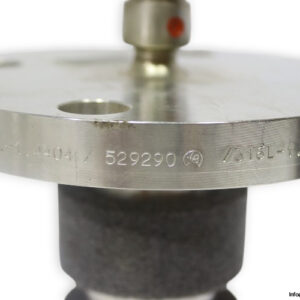

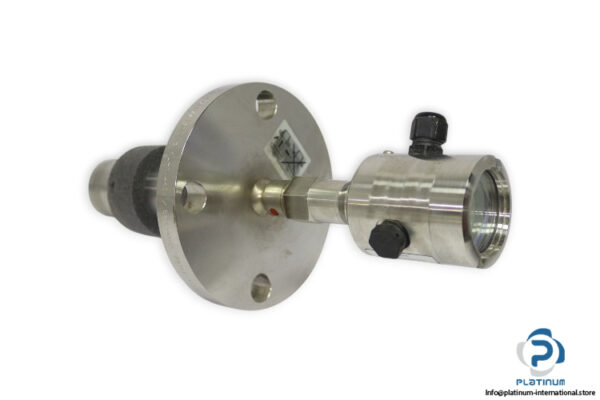

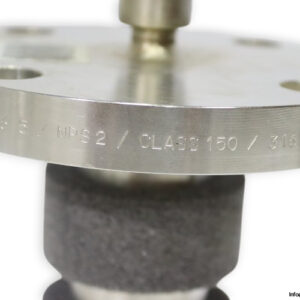

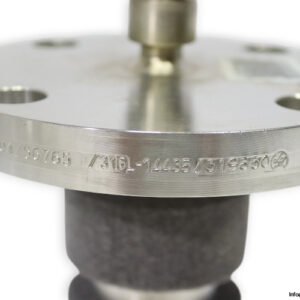

KROHNE OPTIBAR PM3050 Level and Pressure Measurement
The KROHNE OPTIBAR PM3050 is a precision level and pressure measurement device with a metallic diaphragm, engineered for reliable monitoring in industrial and hygienic applications. With advanced accuracy and robust housing, it ensures dependable operation under demanding conditions.

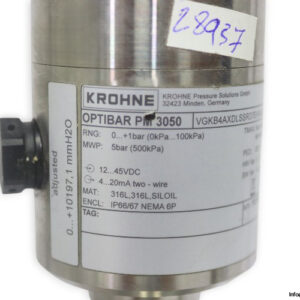

Manufacturer: KROHNE
Type: Level and Pressure Measurement with Metallic Diaphragm
Model: OPTIBAR PM3050

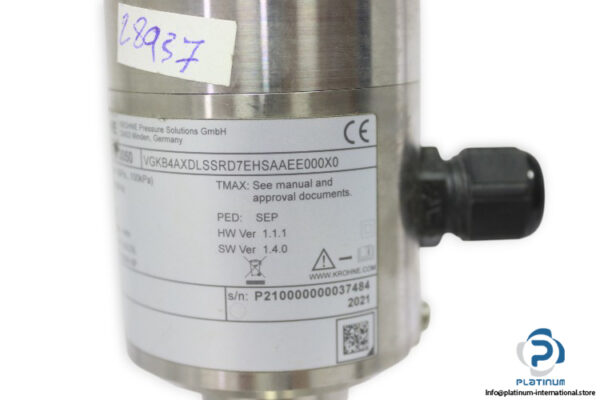

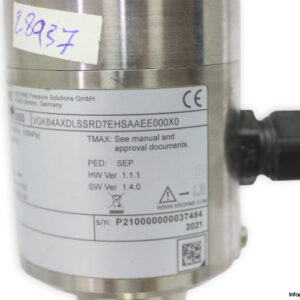

SN: P210000000037484
Code: VGKB4AXDLSSRD7EHSA AEE000X0
HW VER: 1.1.1 / SW VER: 1.4.0
Family: OPTIBAR
Technical Information
- Reference Accuracy: ±0.2%
- Input Voltage: 12 “ 45 VDC
- Nominal Range (Pressure): 0 / 1 bar
- MWP: 5 bar

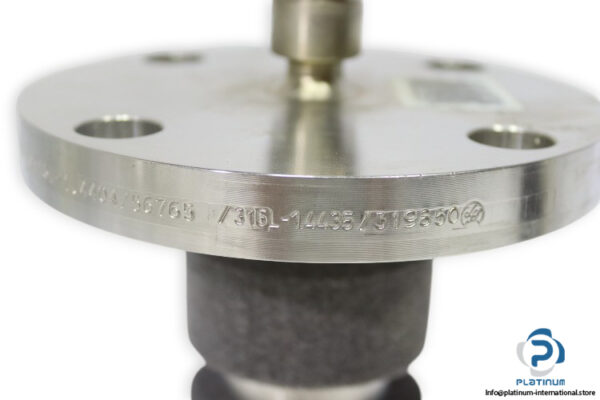

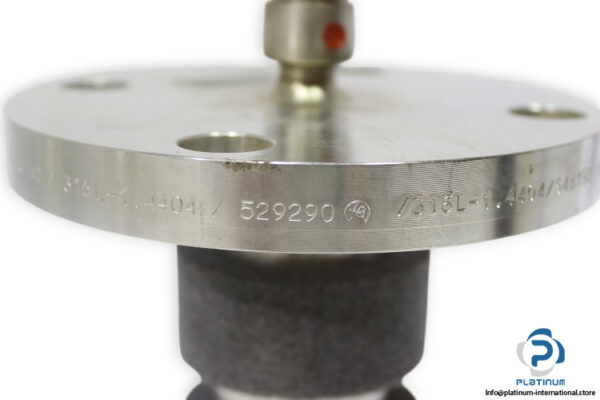

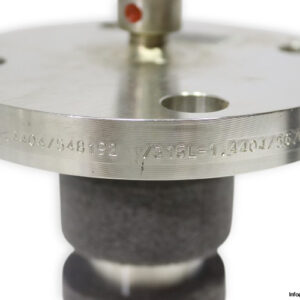

- Process Connection: Thread: G1/2 front flush; Flange: 1 IN / DN25; Hygienic: Clamp 1 IN ISO2852, DIN32676 ‰¥ DN25; Other: with OPTIBAR DS series
- Temperature Range (Process): -40 / +150 °C
- Material Housing: Stainless Steel 316L
- Communication: Output 4 / 20 mA HART 7.5
- Approvals: Ex: ATEX / IECEx Ex ia; Hygienic: 3A, FDA, EHEDG
