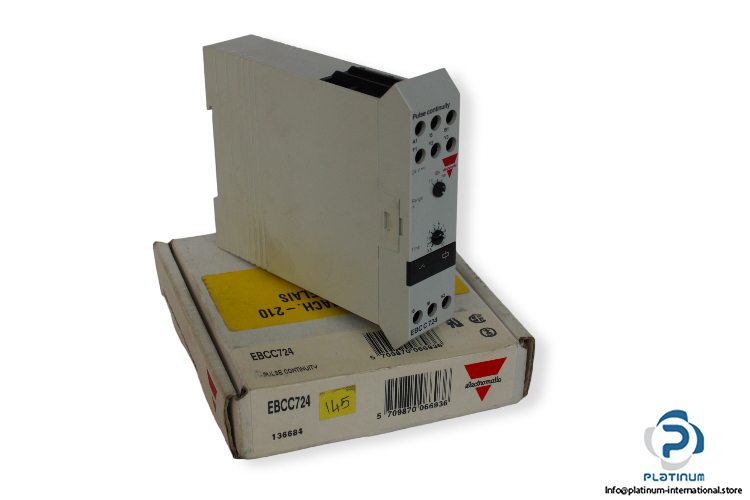

Electromatic EBC C 724 Pulse Continuity Relay

The Electromatic EBC C 724 Pulse Continuity Relay is designed for reliable pulse and continuity monitoring in control systems. It provides precise timing, stable switching, and dependable performance in industrial automation applications. With a wide operating voltage range and multiple timing scales, this relay ensures flexibility and accuracy in various signal control tasks.

Manufacturer: Electromatic
Type: Pulse Continuity Relay
Model: EBC C 724

Technical Information

Rated Operational Voltage: 24 V DC
Rated Operational Current: 60 mA
Power Consumption: 1 W
Pollution Degree: 3

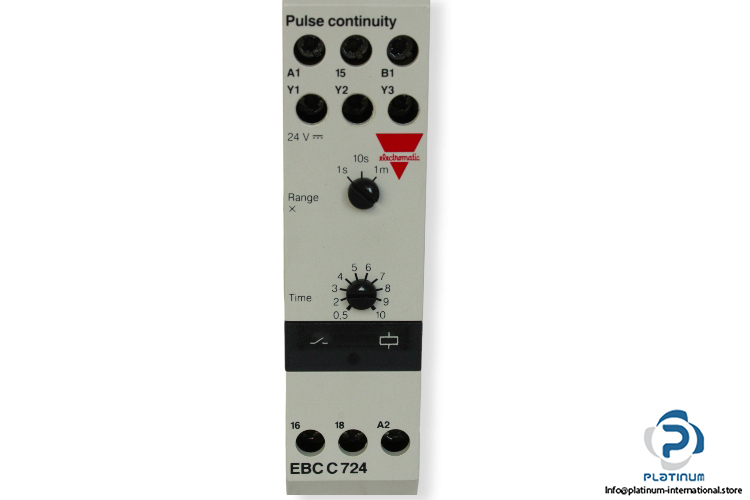

Time Range: 0.5 s / 10 m
Time Setting Scale: 10 Scales
Frequency: 50 / 60 Hz
Rated Impulse Voltage: 4 kV (1.2/50 µs)

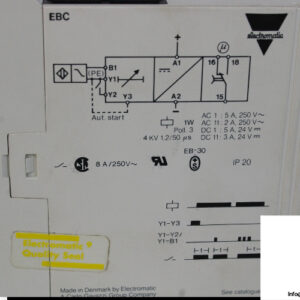

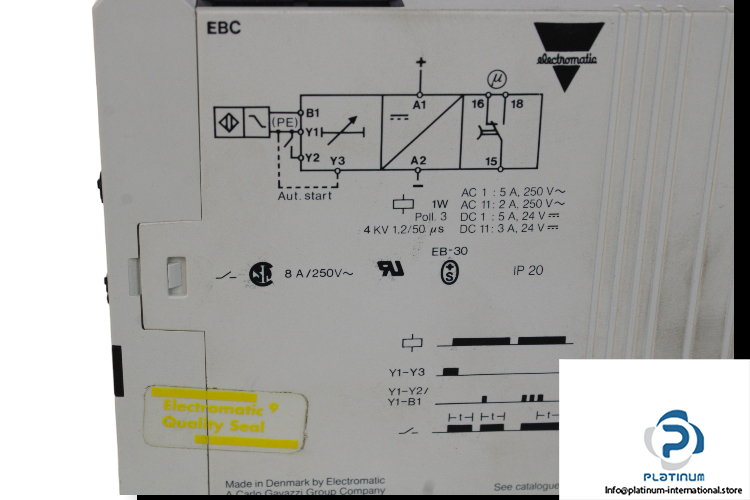

Relay Outputs

Output Type: SPDT Relay
AC11: 250 V AC, 2 A
AC1: 250 V AC, 5 A
DC11: 24 V DC, 3 A
DC1: 24 V DC, 5 A

General Specifications

Mounting: DIN-rail
Operating Temperature: ˆ’20 / +50 °C
Protection Degree: IP20
