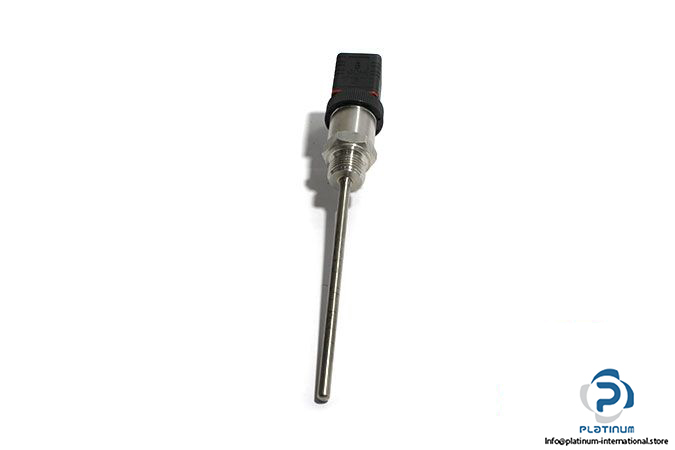

Electrotherm 406 Resistance Thermometer
The Electrotherm 406 Resistance Thermometer is designed for accurate and reliable temperature measurement in industrial applications. Equipped with a Pt100 sensor and built-in transmitter, it provides stable 4 to 20 mA output for precise process control.
Manufacturer: Electrotherm
Type: Resistance Thermometer
Model: 406

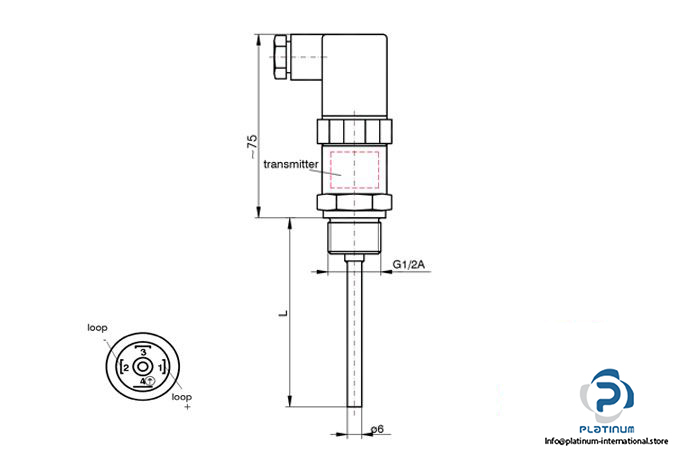

Technical Information
- Application: Used for screwing in with connector and built-in transmitter
- Sensor Model: 1 x Pt100 (3 wire circuit)
- Output Signal: 4 to 20 mA
- Loop Voltage: 10 to 35 VDC
- Measuring Range: 0 to 100 degree Celsius
- Connection Head: Plug-in connector GDM
- Thread: G1/2A
- Protection Class: IP65
- Accuracy: F0.3 DIN EN 60751
- Installment Length L: 150 millimeters
- Tube Diameter: 6 millimeters
- Operating Temperature: minus 40 to 85 degree Celsius
- Protective Tube Material: 1.4571
