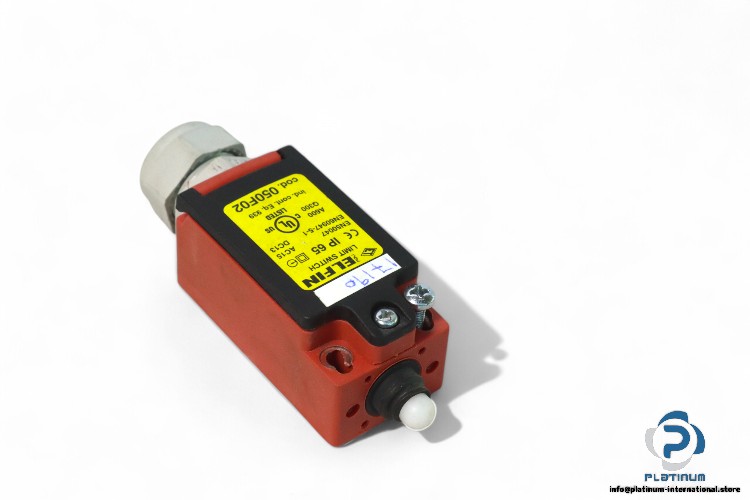

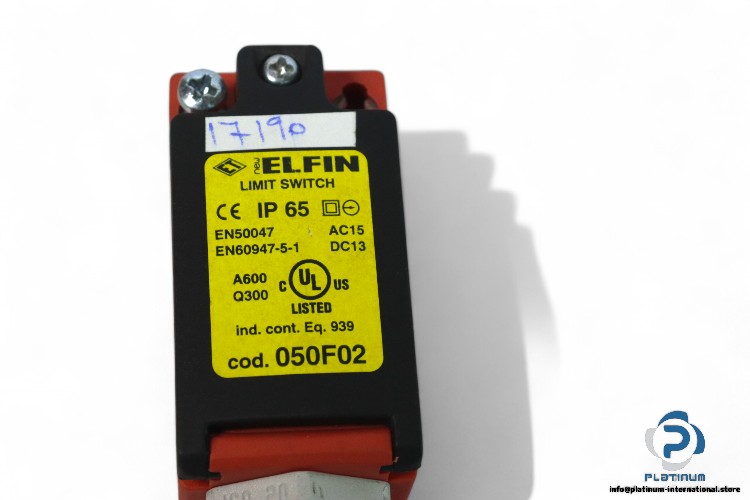

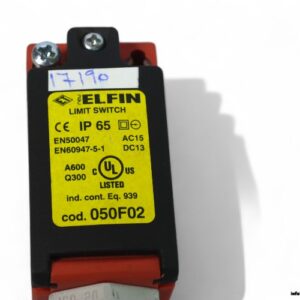

ELFIN Position Limit Switch 050F02

The ELFIN 050F02 Position Limit Switch is a high-performance device designed for accurate position sensing and control in industrial applications. With a robust plunger actuator and durable PA housing, it ensures reliability even in challenging environments.

Key Features and Specifications:

• Manufacturer: ELFIN
• Type: Position Limit Switch
• Model: 050F02
• Actuator Type: Plunger
• Output Configuration: 2 Normally Closed (NC)
• Rated Insulation Voltage (Ui): 690V
• Impulse Withstand Voltage (Uimp): 4KV (IEC-EN60947-1)
• Rated Thermal Current (Ith): 10A (IEC-EN60947-1)
• Electrical Ratings (AC15-DC13): A600-Q300 (UL 508)
• AC Performances:
  • 24V “ 10A
  • 120V “ 6A
  • 240V “ 3A
  • 600V “ 1.2A
• DC Performances:
  • 24V “ 2.5A
  • 120V “ 0.6A
  • 240V “ 0.3A
• Protection Class: IP65
• Operating Temperature: -10° / +80°C
• Housing Material: PA (Polyamide)
• Cable Entry: M20x1.5

The ELFIN 050F02 Position Limit Switch is designed for durability, precision, and seamless integration into automation and control systems.
