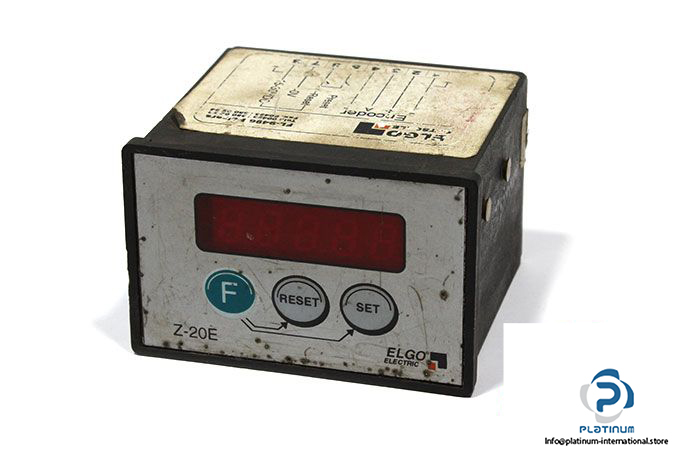

ELGO Z20-000-024-0 MINIATURE POSITION INDICATOR
The ELGO Z20-000-024-0 is a compact and efficient miniature position indicator engineered for precise positioning and control in automation environments. With a clear red 5-digit LED display and fast counting frequency, it is ideal for applications requiring high-resolution feedback and reliable signal input handling.
Manufacturer: ELGO
Type: Miniature Position Indicator
Model: Z20-000-024-0
S. No: 181041
Technical Information
- SV: 1.1-5
- Power Supply: 15 “ 30 VDC
- Power Consumption: 1 VA
- Counting Frequency: 20 KHz = 2 m/s at 0.1 mm resolution
- Encoder Supply Output: Power Supply
- Display: Red 5 digits LED display + sign, 8 mm high
- Input Frequency: 90° phase shifted square waves (12 V level)
- External Set / Reset Inputs: Potential free inputs (max. 10 Hz)
- Power Down Memory: EE-Prom
- Housing: Black plastic panel housing
- Install Depth: 77 mm incl. Connector
- Outer Dimensions (W × H): 72 × 48 mm
- Panel Cut Out (W × H): 68 × 45 mm
- Protection Class: IP 40 (installed state)
