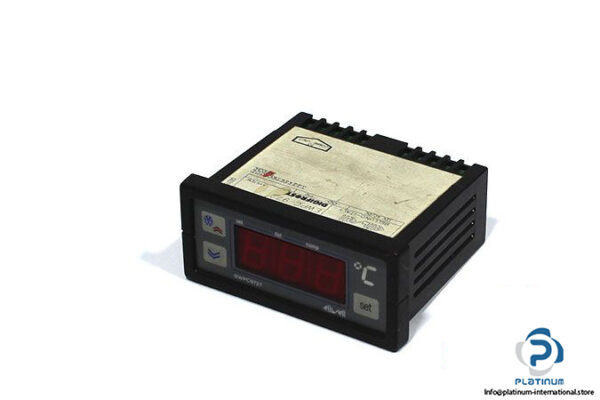

ELIWELL EWPC 972 TEMPERATURE CONTROLLER
The Eliwell EWPC 972 is a high-performance temperature controller designed for precise and reliable temperature management in refrigeration and HVAC systems. With advanced control logic, modular connectivity, and robust housing, it delivers industrial-grade reliability in a compact panel-mounted format.
Manufacturer: Eliwell
Type: Temperature Controller
Model: EWPC 972
Power Supply: 12 V AC/DC
Technical Information
- Outputs: Three output signals 12 VDC / 30 mA for controlling compressor, fan, and defrost via EWDR SLAVE Din-module
- Inputs: Two PTC probes for temperature and defrost termination (connected to EWDR SLAVE module only)
- Resolution: 1 °C
- Display: 12.5 mm LED (0.50³)
- No of Digit: 3
- Data Storage: Non-Volatile EEPROM Memory
- Push Buttons: Front Panel Mounted
- Mounting: Flush Panel Mount with Mounting Bracket
- Housing: Black ABS Plastic, Self-Extinguishing
- Connections: Telephone Type Receptacle for EWDR SLAVE (972 Version)
- Operating Temperature: -5 to 60 °C
- Protection Class: IP65
