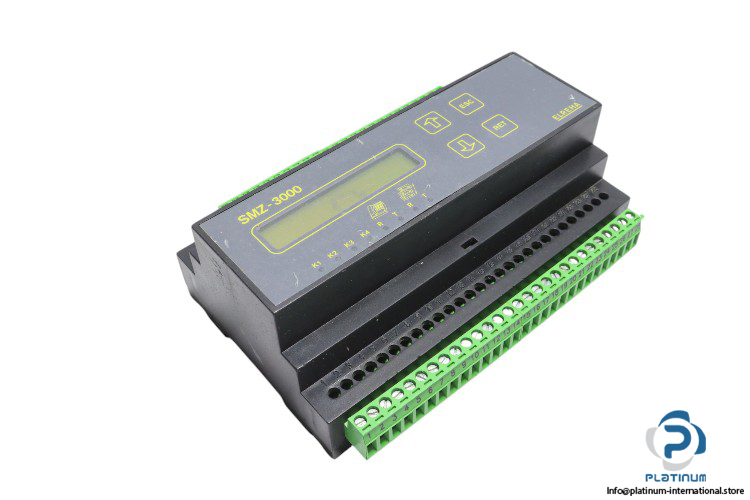

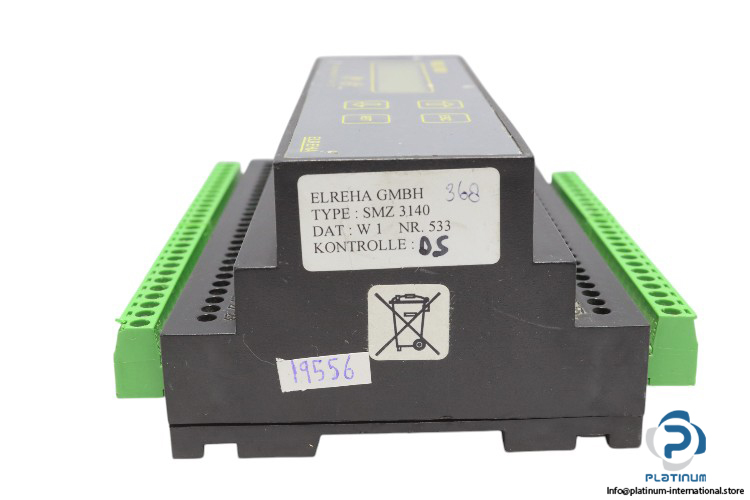

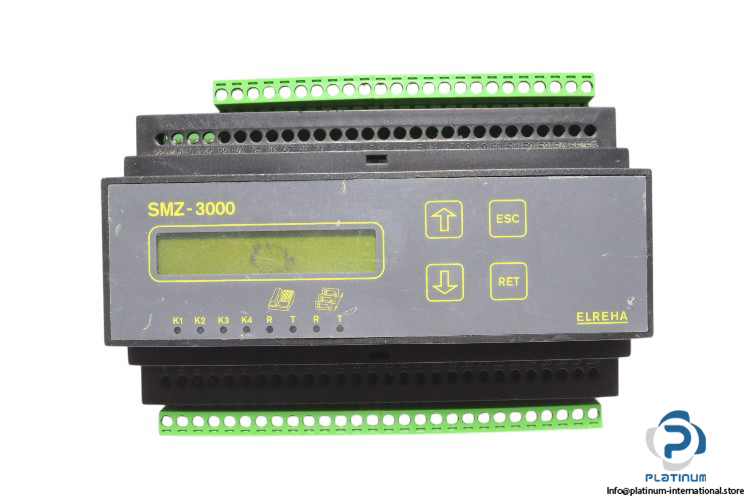

Elreha SMZ3140 Controller Unit
The Elreha SMZ3140 Controller Unit is a high-performance device designed for industrial applications. With a wide range of inputs and outputs, this controller ensures reliable performance and control in demanding environments. It features multiple communication interfaces, digital inputs, and relay outputs for maximum versatility and adaptability in automation systems.
- Manufacturer: Elreha
- Type: Controller Unit
- Model: SMZ3140
- MNR: SMZ-3000
Technical Information
- Supply Voltage: 230 V AC
- Interfaces: 1x RS-232, 2x RS-485
- Power Consumption: appr. 9 VA max.
- Digital Inputs: 16x mains voltage, 3mA max.
- Relay Outputs: 4x SPDT, isolated, 8 A, 4A inductive / 250V AC
- Mounting: DIN-Rail Mounting
- Display: LCD, 2 rows, backlighted
- Case: Plastic, for DIN-rail, foil keypad
- Protection Degree: IP30
- Ambient Temperature: 0 to 50°C
- Dimensions (W x H x D): 153 x 114 x 59 mm
This versatile controller unit is ideal for applications where reliable control, connectivity, and durability are essential, ensuring optimal performance in industrial environments.
