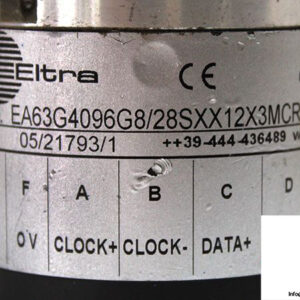

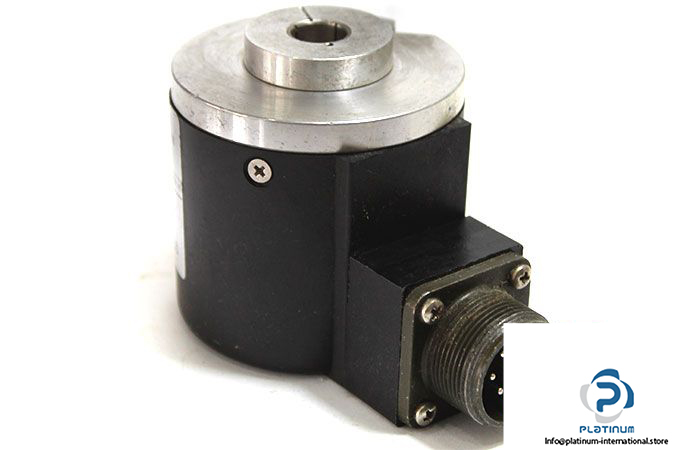

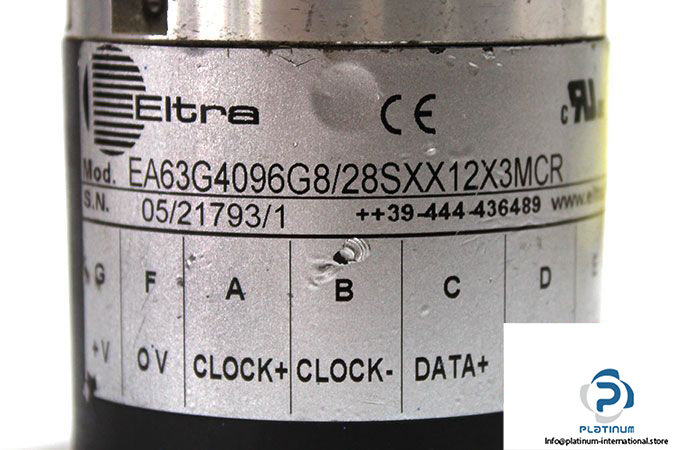

ELTRA EA63G4096G8/28SXX12X3MCR ABSOLUTE ENCODER
The ELTRA EA63G Series Absolute Encoder is built for precise position feedback in automation and industrial control systems. Engineered with robust protection and high-resolution output, it ensures reliable performance in demanding environments.
Manufacturer: ELTRA
Type: Absolute Encoder
Model: EA63G4096G8/28SXX12X3MCR
Serial No.: 05/21793/1
Technical Information
- Type of Shaft: Hollow Shaft
- Hole Diameter: 12 mm
- Resolution: 4096 Pulse Per Revolution (PPR)
- Code Output: Gray
- Electronics Output: SSI (Serial Synchronous Interface)
- Power Supply: 8/28 VDC
- Operating Temperature: 0 / 60 °C
- Degree of Protection: IP54
