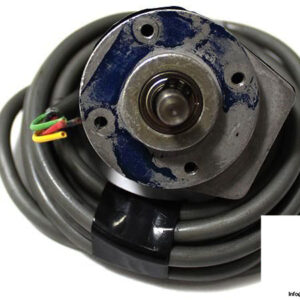

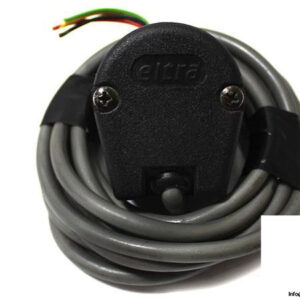

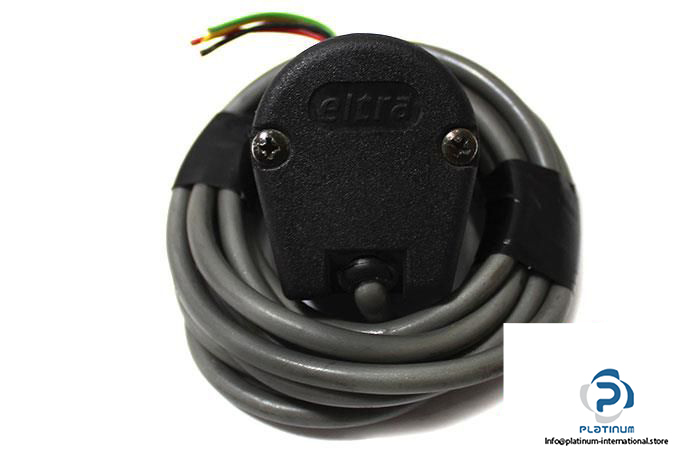

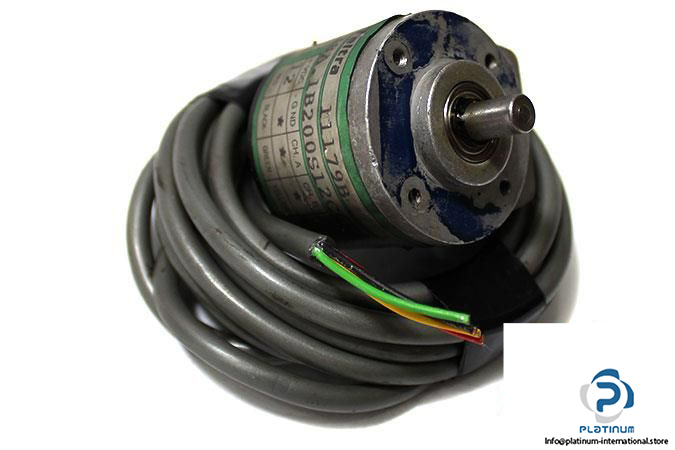

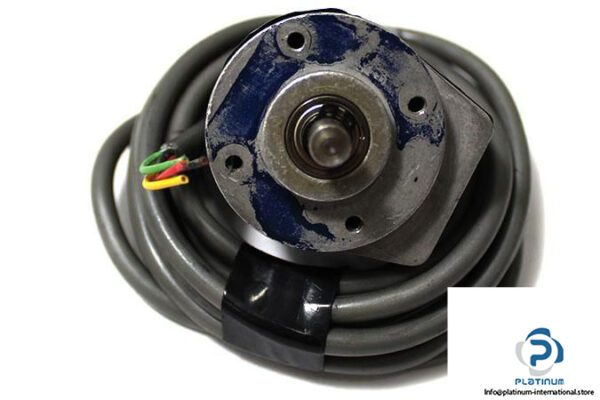

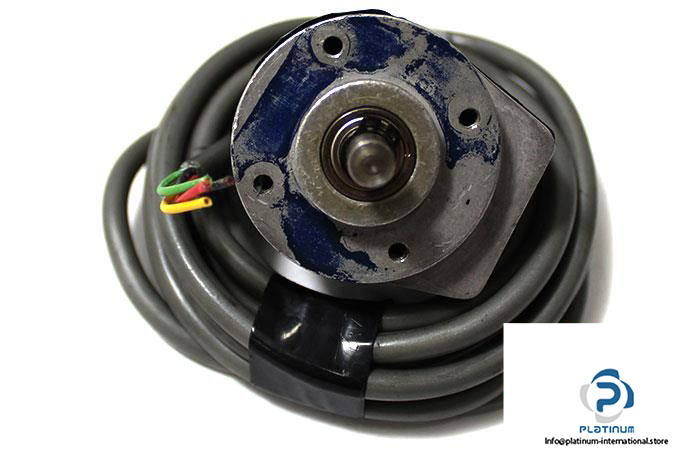

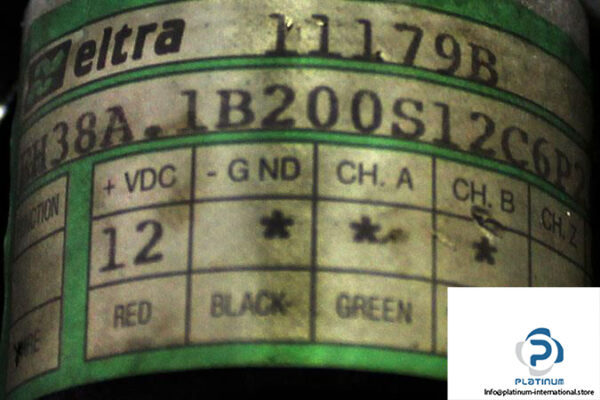

ELTRA EH38A.1B200S12C6P201 INCREMENTAL ENCODER
The ELTRA EH38A.1B200S12C6P201 is a compact and durable incremental encoder designed for accurate positioning and feedback in automation and motion control systems. Built with high-quality materials, it ensures long-lasting performance even in demanding industrial environments.
Manufacturer: ELTRA
Type: Incremental Encoder
Model: EH38A.1B200S12C6P201

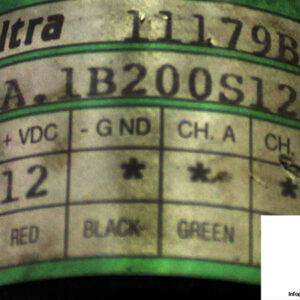

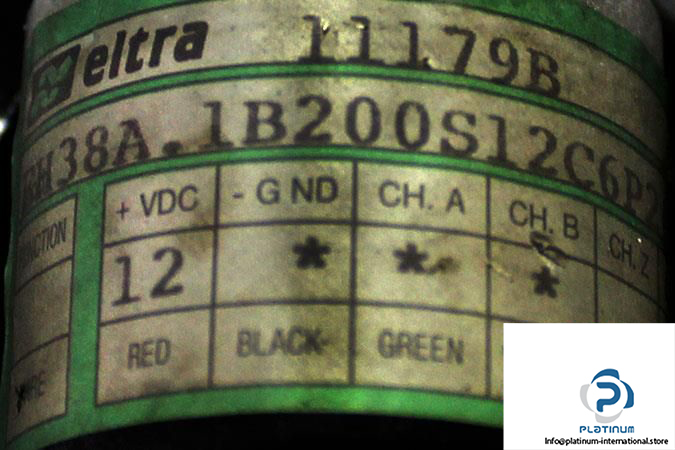

Reference No.: 11179B
Technical Information
- Type of Flange: Clamping Shaft
- Shaft Diameter: 6 mm
- Resolution: 200 Pulses per Revolution (PPR)
- Voltage Supply: 12 VDC
- Output Frequency: 0 / 100 kHz
- Output Circuits: NPN Open Collector
- Connection Type: Radial Cable Output (0.5 m)
- Body Material: Aluminum UNI 5076
- Shaft Material: 1.4305 / AISI 303 Stainless Steel
- Operating Temperature: -20 / 70 °C
