ELTRA EH53A1024Z8/24P10X6PR.N INCREMENTAL ENCODER
The ELTRA EH53A1024Z8/24P10X6PR.N is a high-precision incremental encoder designed for industrial automation systems. With a 10 mm bore, 1024 PPR resolution, and robust materials, it provides reliable feedback even in demanding environments.
Manufacturer: ELTRA
Type: Incremental Encoder
Model: EH53A1024Z8/24P10X6PR.N

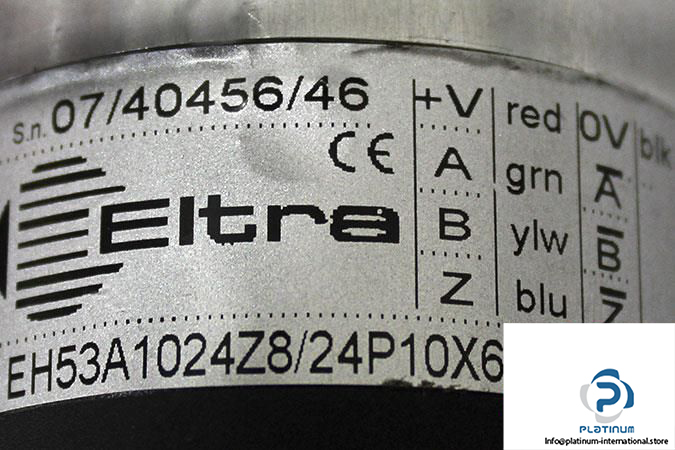

Serial No.: 07/40456/46
Technical Information

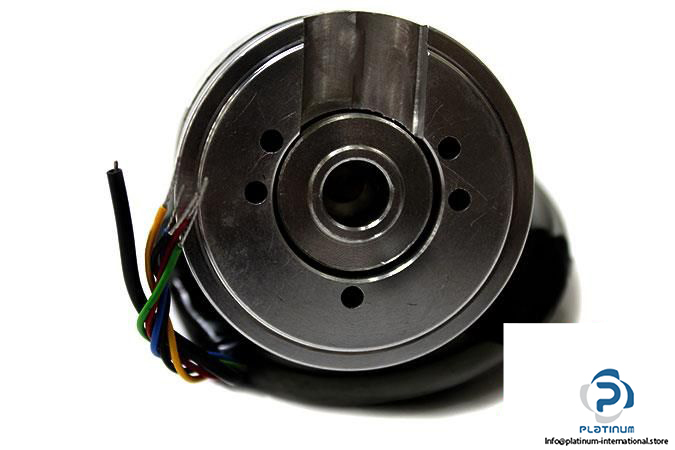

- Bore Diameter: 10 mm
- Resolution: 1024 Pulses per Revolution (PPR)
- Voltage Supply: 8 / 24 VDC
- Output Frequency: 0 / 100 kHz
- Output Circuits: Push Pull
- Max Rotation Speed: 6000 rpm
- Connection Type: Radial Cable Output (1.5 m)
- Shaft Material: Stainless Steel AISI303
- Body Material: Aluminium UNI 5076
- Temperature Range: -10 / 60 °C
