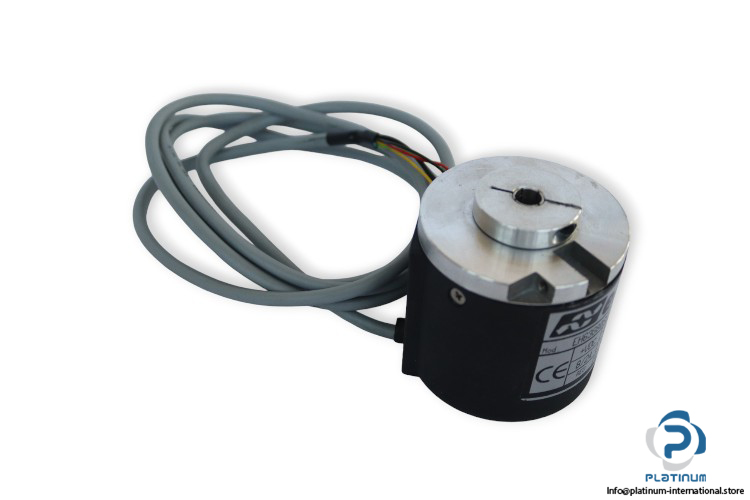

ELTRA EH63G80S8/24P8X3PR INCREMENTAL ENCODER

The ELTRA EH63G80S8/24P8X3PR is a high-precision optical incremental encoder designed for rotary motion applications. With an 80 PPR resolution and compact 63 mm construction, it is ideal for industrial automation systems requiring accurate and reliable positioning feedback.

Manufacturer: ELTRA
Type: Incremental Encoder

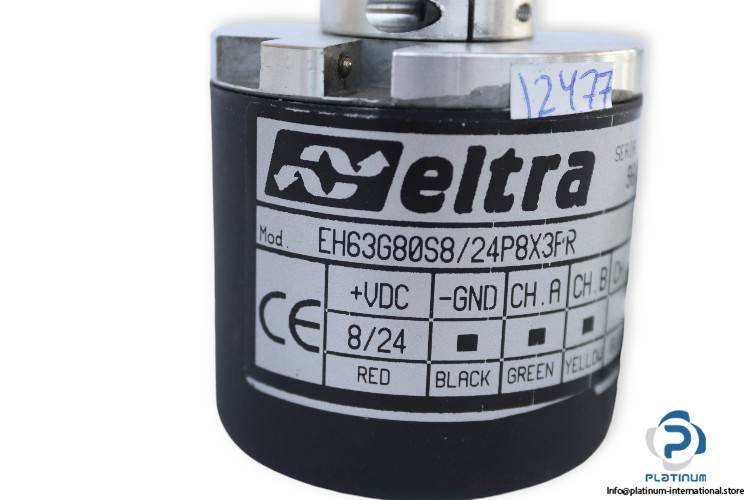

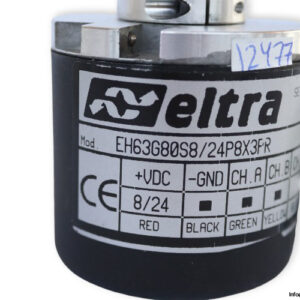

Model: EH63G80S8/24P8X3PR

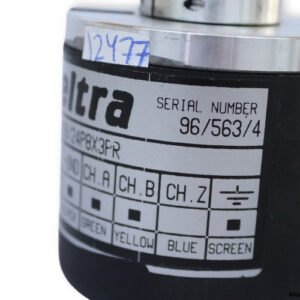

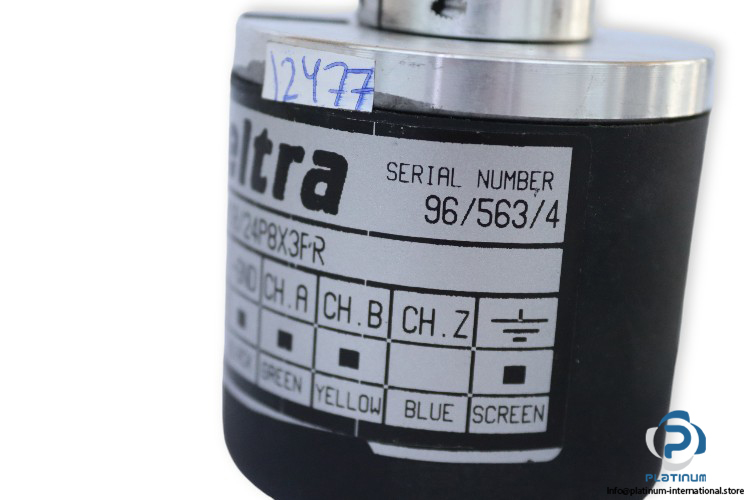

Serial No.: 96/563/4

Technical Information

• Power Supply: 8 / 24 V DC
• Principle of Operation: Incremental
• Type of Sensor: Optical
• Measurement Type: Rotary
• Resolution: 80 PPR
• Shaft Type: Hollow Shaft
• Bore Diameter: 8 mm
• Max Rotation Speed: 3000 rpm

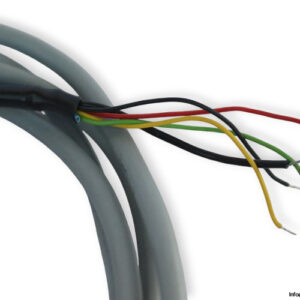

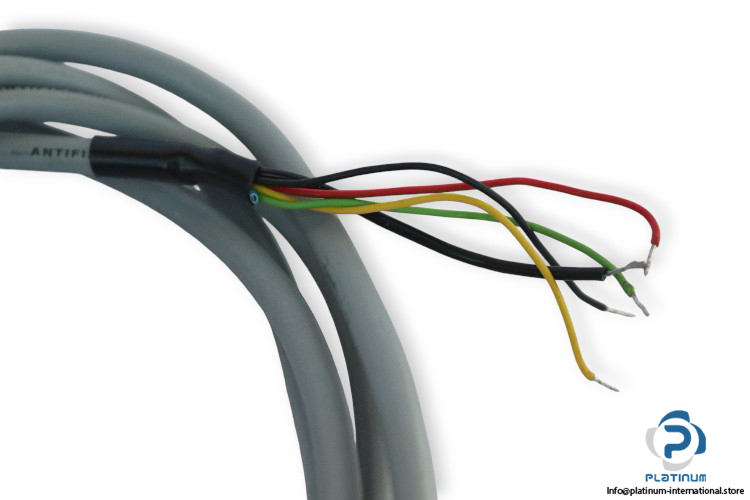

• Output Type: Cable (5 Wires)
• Direction Type: Radial
• Construction Size (Diameter): 63 mm
