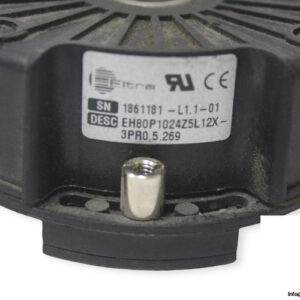

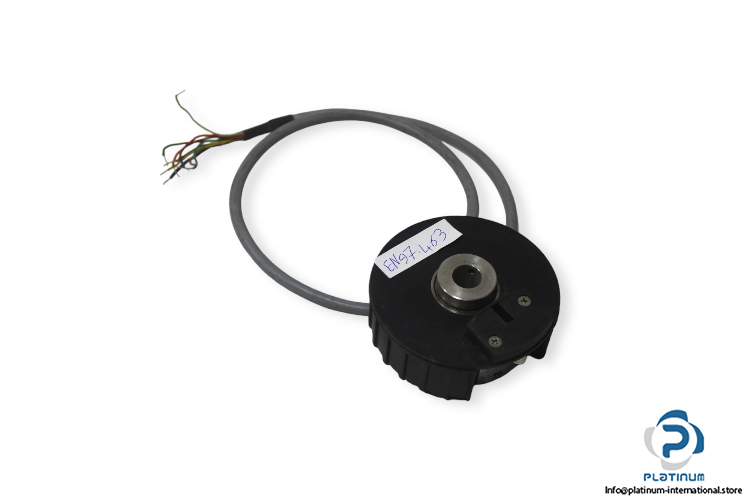

ELTRA EH80P1024Z5L12X-3PR0,5.269 INCREMENTAL ENCODER

The Eltra EH80P1024Z5L12X-3PR0,5.269 is a high-precision incremental encoder designed for rotary measurement in industrial automation systems. With robust construction, optical sensing, and high temperature resistance, it ensures reliable performance even in demanding conditions.

Manufacturer: Eltra
Type: Incremental Encoder
Model: EH80P1024Z5L12X-3PR0,5.269

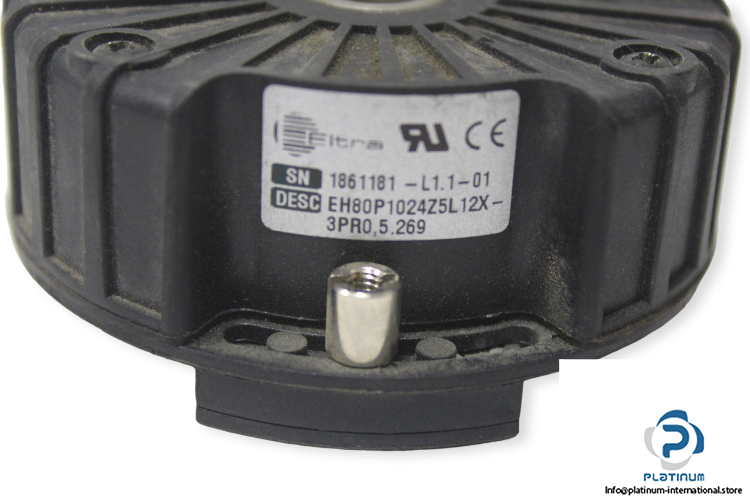

S No: 1861181-L1.1-01

Technical Information

• Power Supply: 5 V DC
• Principle of Operation: Incremental
• Shaft Type: Through Hollow Shaft
• Mounting Type: Anti-Rotation Pin
• Electronic Interface: Line Driver
• Special Features: High Temperature Resistance
• Resolution: 1024 ppr
• Bore Diameter: 12 mm
• Enclosure Rating: IP54
• Max Rotation Speed: 3000 rpm
• Output Type: Cable
• Cable Length: 0.5 m
• Direction Type: Radial
• Construction Size (Diameter): 80 mm
• Measurement Type: Rotary
• Type of Sensor: Optical
• Operating Temperature: -20 / +100 °C
