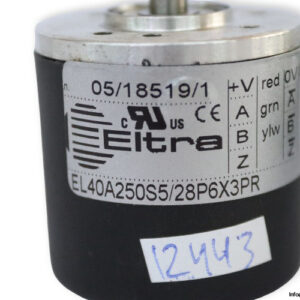

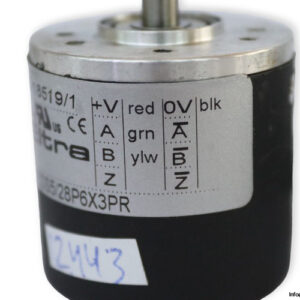

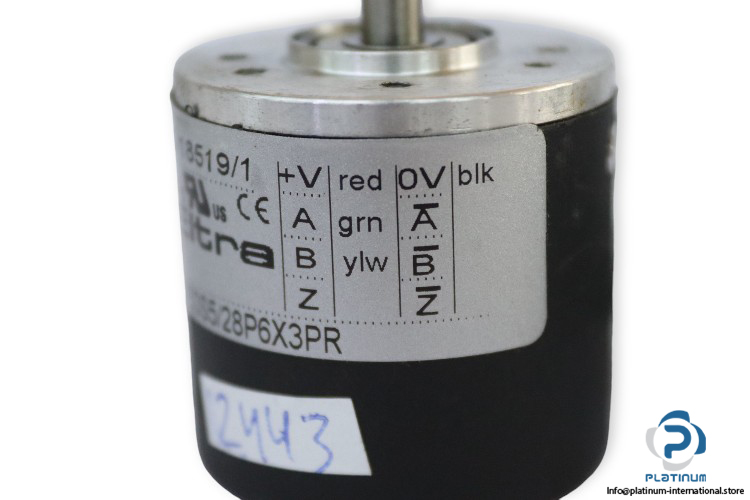

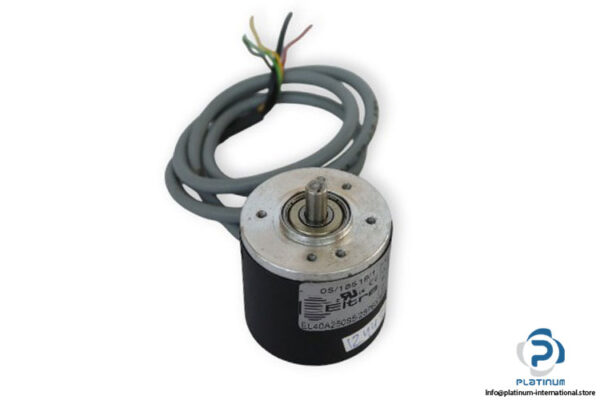

ELTRA EL40A250S5/28P6X3PR INCREMENTAL ENCODER

Eltra™s EL40A250S5/28P6X3PR is a compact and durable incremental encoder, designed to deliver reliable rotary measurement in industrial environments. With a 250 PPR resolution, this optical encoder ensures accurate position feedback for automated and motion control systems.

Manufacturer: ELTRA
Type: Incremental Encoder

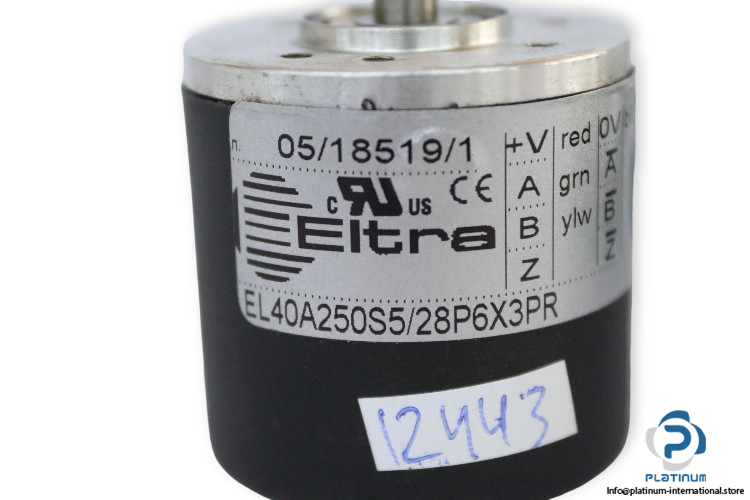

Model: EL40A250S5/28P6X3PR
Serial No.: 05/18519/1

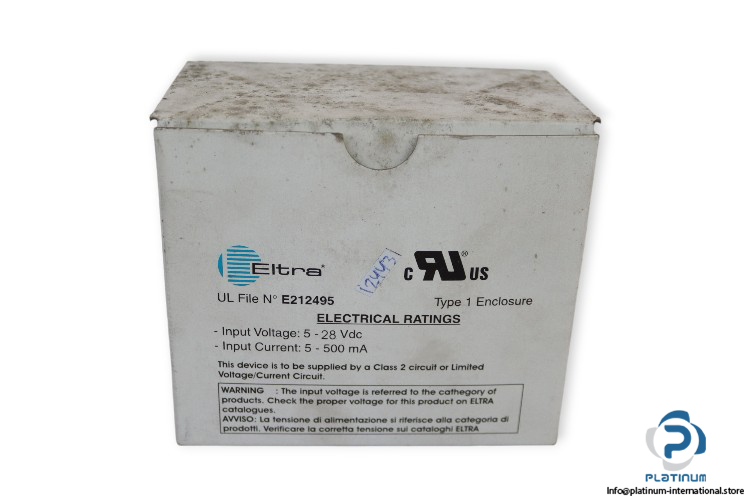

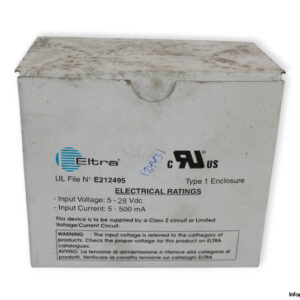

Reference No.: E212495

Technical Information

• Input Voltage: 5 / 28 V DC
• Input Current: 5 / 500 mA
• Operating Principle: Incremental
• Resolution: 250 PPR
• Max Output Frequency: 150 kHz
• Shaft Type: Solid Shaft
• Shaft Diameter: 6 mm
• Mounting Type: Clamping Flange
• Electronic Interface: Push Pull

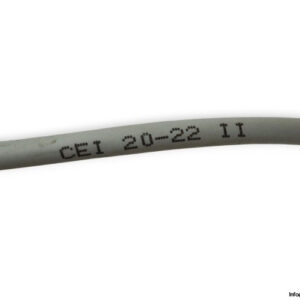

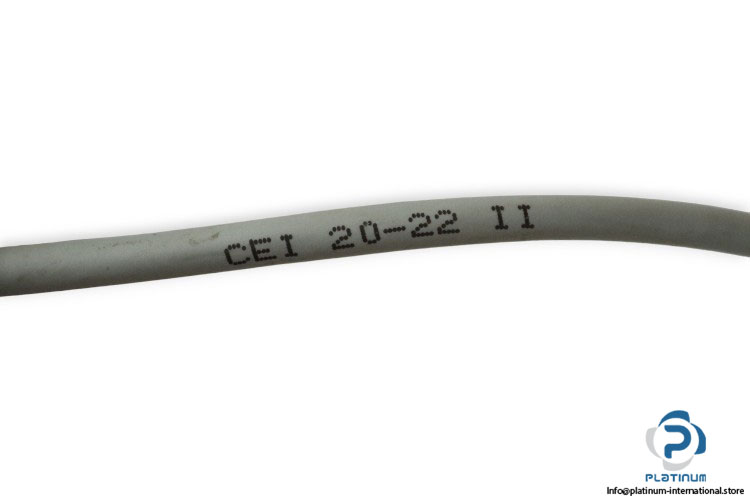

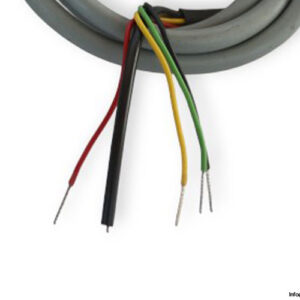

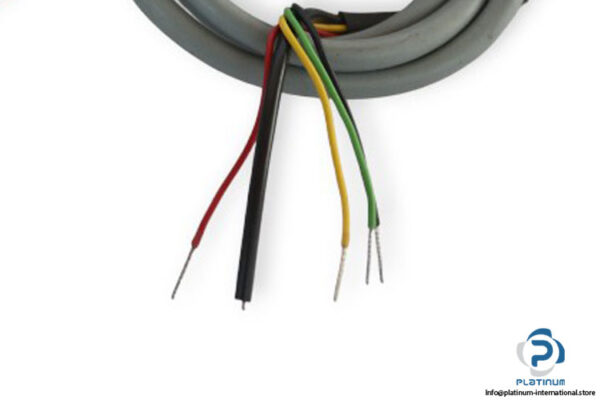

• Output Type: Cable (5 Wires)
• Measurement Type: Rotary
• Type of Sensor: Optical
• Enclosure Rating: IP54
• Max Rotation Speed: 3000 rpm
• Operating Temperature: -10 / +60°C
• Direction Type: Radial
• Construction Size (Diameter): 42 mm
