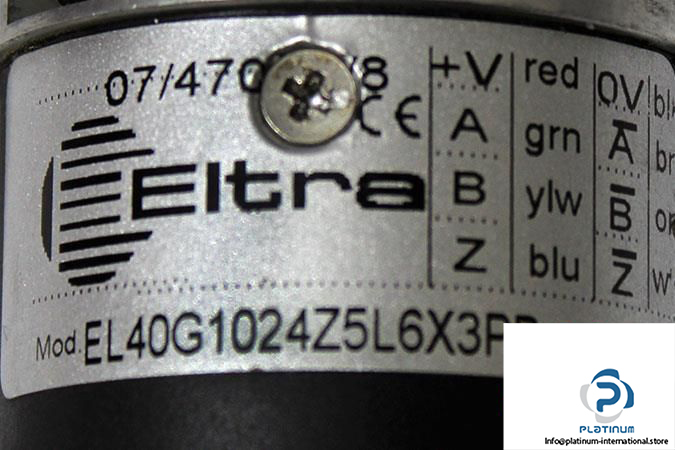

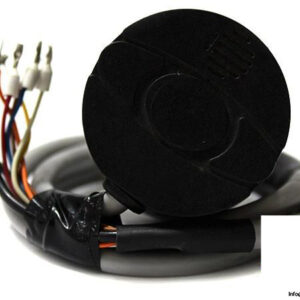

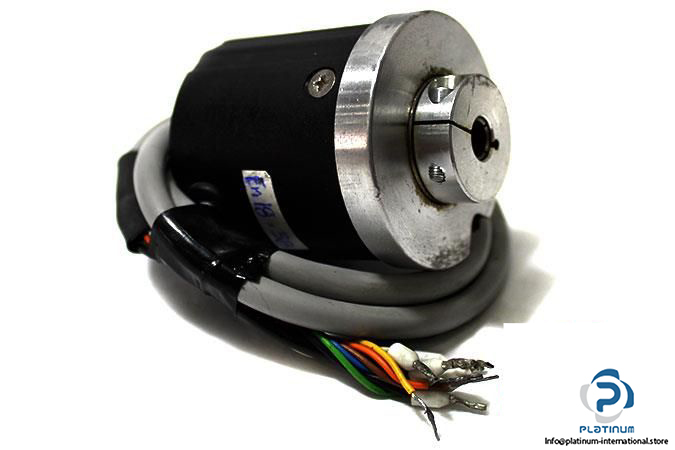

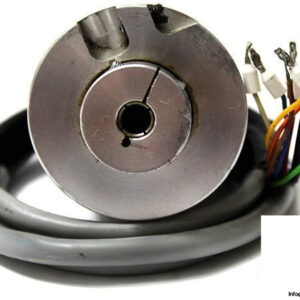

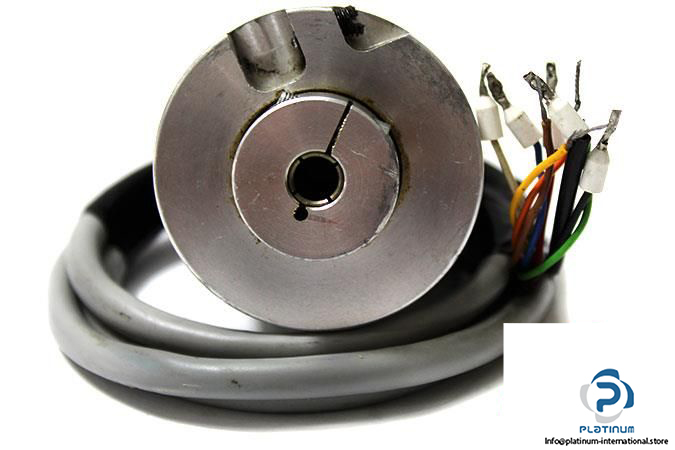

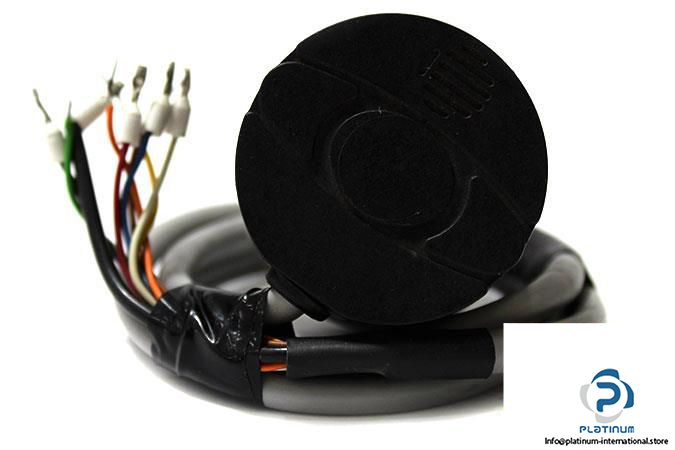

ELTRA EL40G1024Z5L6X3PR INCREMENTAL ENCODER
This compact and high-resolution incremental encoder from ELTRA is engineered for precise motion detection and position feedback in automation systems. Designed with rugged protection and stable signal output, it is ideal for industrial use.
Manufacturer: ELTRA
Type: Incremental Encoder
Model: EL40G1024Z5L6X3PR
Technical Information
- Hole Diameter: 6 mm
- Resolution: 1024 Pulses per Revolution (PPR)
- Voltage Supply: 5 VDC
- Output Frequency: 0 “ 100 kHz
- Output Circuits: Line Driver
- Max Rotation Speed: 3000 rpm
- Connection Type: Radial Cable Output (0.5m)
- Protection Class: IP54
- Temperature Range: 0 “ 60 °C
