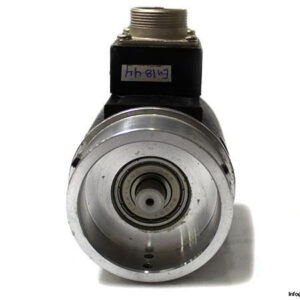

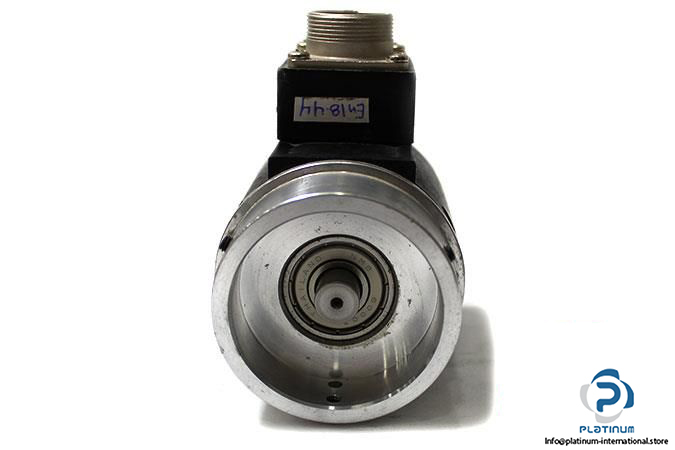

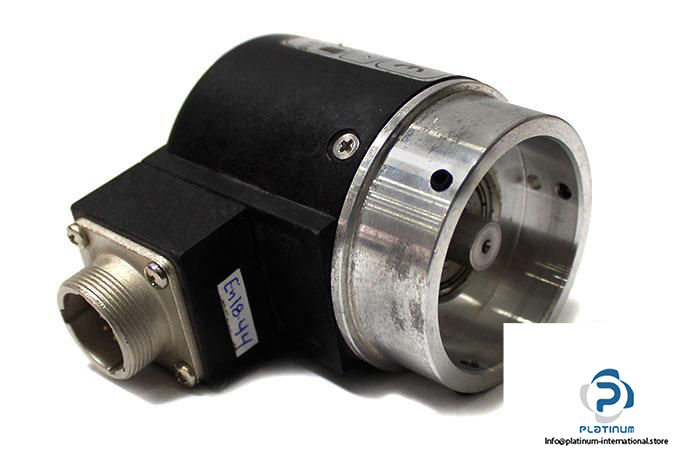

ELTRA EL62A125Z5L10X6JR INCREMENTAL ENCODER
The ELTRA EL62A125Z5L10X6JR is a compact and high-precision incremental encoder engineered for accurate position feedback in industrial automation systems. Its 125 PPR resolution and line driver output make it ideal for applications requiring stable signal transmission and reliable performance under dynamic conditions.
Manufacturer: ELTRA
Type: Incremental Encoder

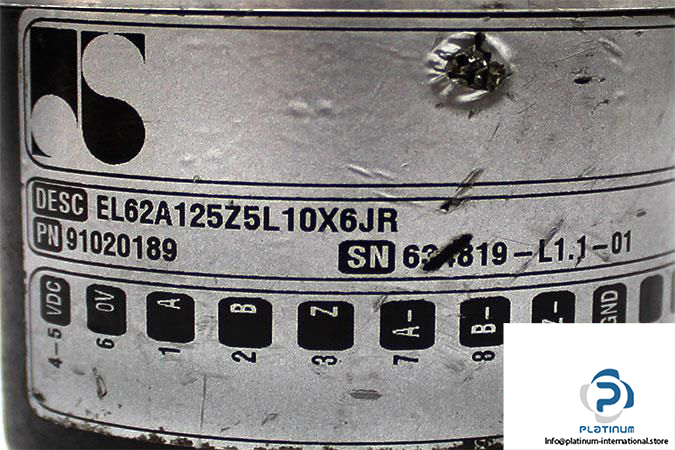

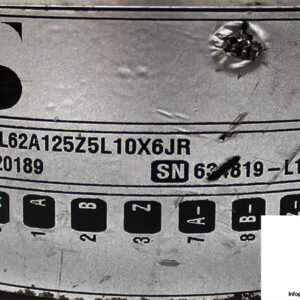

Model: EL62A125Z5L10X6JR
Part No.: 91020189
Technical Information
- Shaft Diameter: 10 mm
- Resolution: 125 Pulses per Revolution (PPR)
- Voltage Supply: 5 VDC
- Output Frequency: 0 / 100 kHz
- Output Circuits: Line Driver
- Max Rotation Speed: 6000 rpm

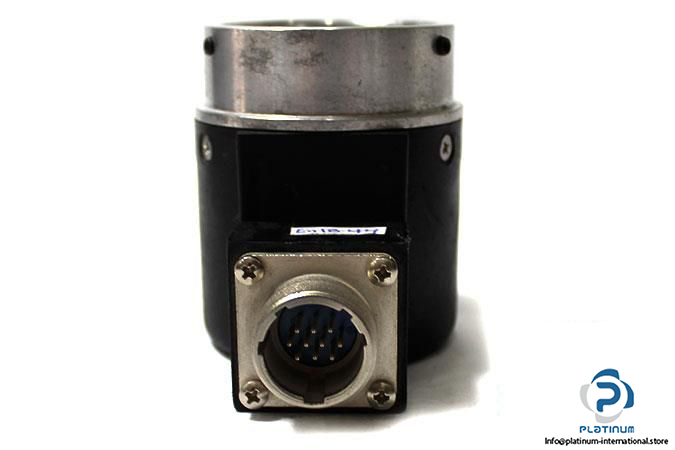

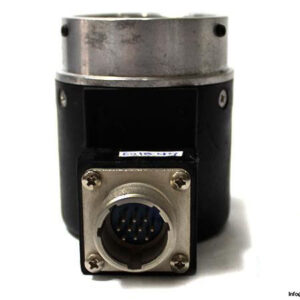

- Connection Type: Radial connector JMSP
- Protection Class: IP54
- Temperature Range: 0 / 60 °C
