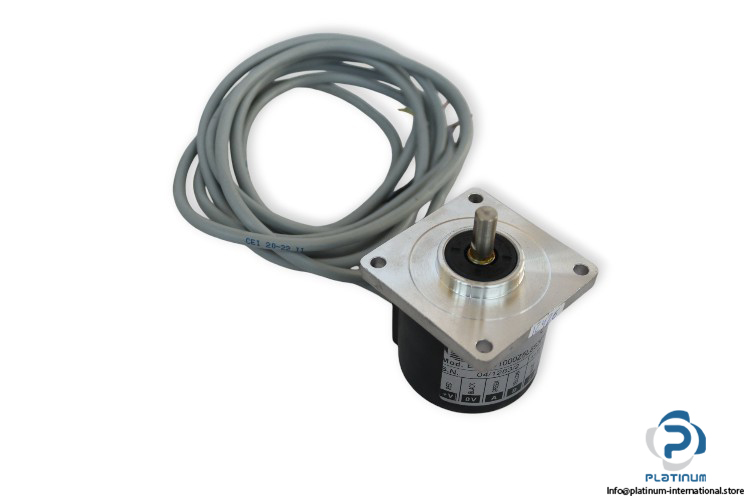

ELTRA EL63D1000Z5L8S3PR3035 INCREMENTAL ENCODER

The ELTRA EL63D1000Z5L8S3PR3035 is a robust rotary optical encoder designed for precise motion control and high-speed feedback in industrial automation environments. Featuring a solid shaft and radial output, it delivers reliable performance even under demanding conditions.

Manufacturer: ELTRA
Type: Incremental Encoder

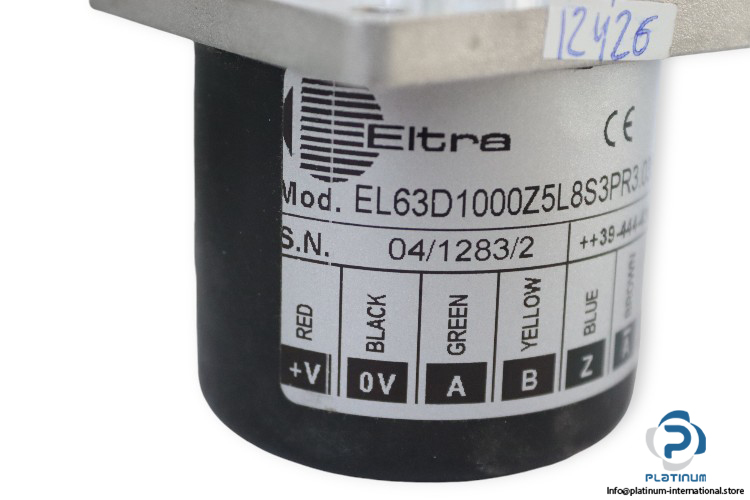

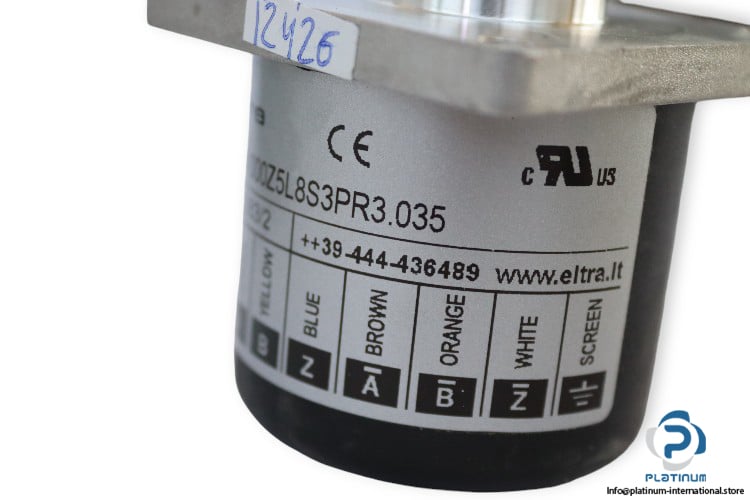

Model: EL63D1000Z5L8S3PR3035
Serial No.: 04/1283/2

Technical Information

• Input Voltage: 5 / 30 V DC
• Input Current: 5 / 500 mA
• Principle of Operation: Incremental
• Resolution: 1000 ppr
• Shaft Type: Solid Shaft
• Shaft Diameter: 8 mm
• Mounting Type: Centering Square Flange
• Electronic Interface: Line Driver

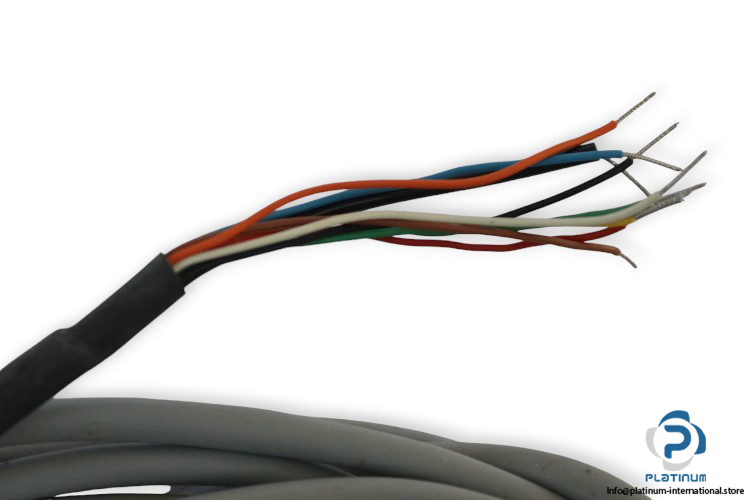

• Output Type: Cable (9 Wires)
• Direction Type: Radial
• Construction Size (Diameter): 63 mm
• Max Rotation Speed: 3000 rpm
• Max Output Frequency: 250 kHz
• Protection Degree: IP66
• Operating Temperature: -10 / +60°C
• Measurement Type: Rotary
• Type of Sensor: Optical
