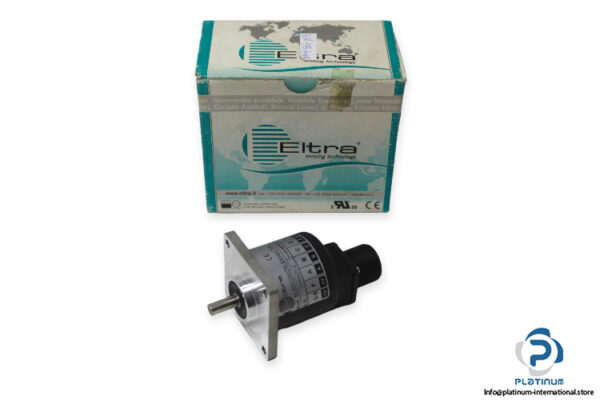

ELTRA EL63D250Z5L8X6MA.T608 INCREMENTAL ENCODER

The Eltra EL63D250Z5L8X6MA.T608 is a high-precision incremental encoder designed for rotary motion detection in industrial automation systems. With robust construction and accurate output, this encoder is engineered for high reliability in demanding environments.

Manufacturer: Eltra
Type: Incremental Encoder

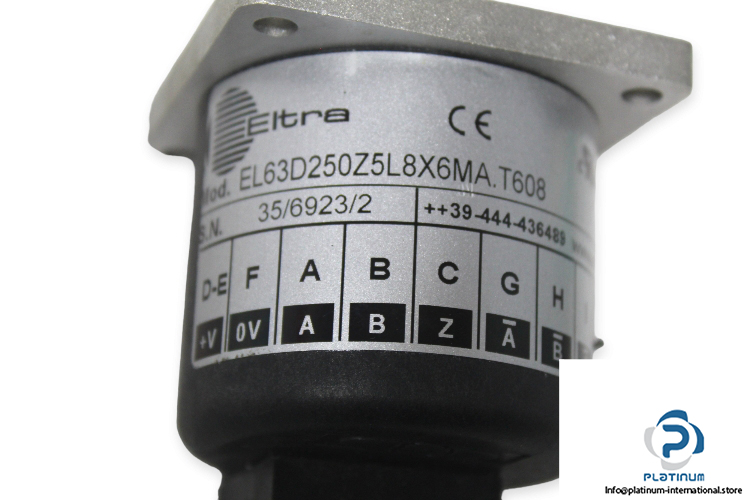

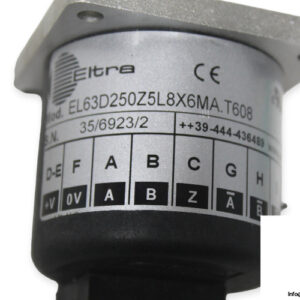

Model: EL63D250Z5L8X6MA.T608
S/N: 35/6923/2

Technical Information

• Power Supply: 5 V DC
• Shaft Type: Solid Shaft
• Mounting Type: Centering Square Flange
• Electronic Interface: Line Driver
• Resolution: 250 PPR (Pulses Per Revolution)
• Shaft Diameter: 8 mm
• Enclosure Rating: IP54
• Max Rotation Speed: 6000 RPM
• Output Type: MIL Connector
• Direction Type: Axial
• Construction Size (Diameter): 63 mm
• Measurement Type: Rotary
• Type of Sensor: Optical
• Operating Temperature: -10 / +60 °C
