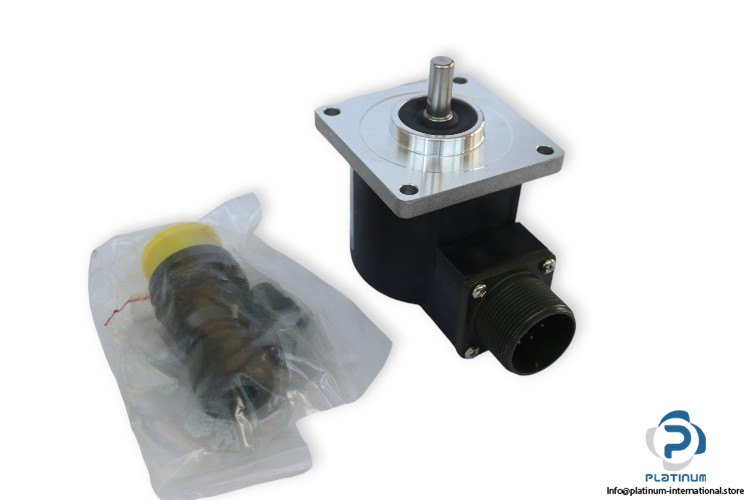

ELTRA EL63D500Z5L8X3MR INCREMENTAL ENCODER

The ELTRA EL63D500Z5L8X3MR is a robust rotary incremental encoder designed for high-precision industrial motion feedback applications. With solid construction, radial output direction, and a MIL connector, this encoder ensures reliability and accuracy in automation systems.

Manufacturer: ELTRA
Type: Incremental Encoder

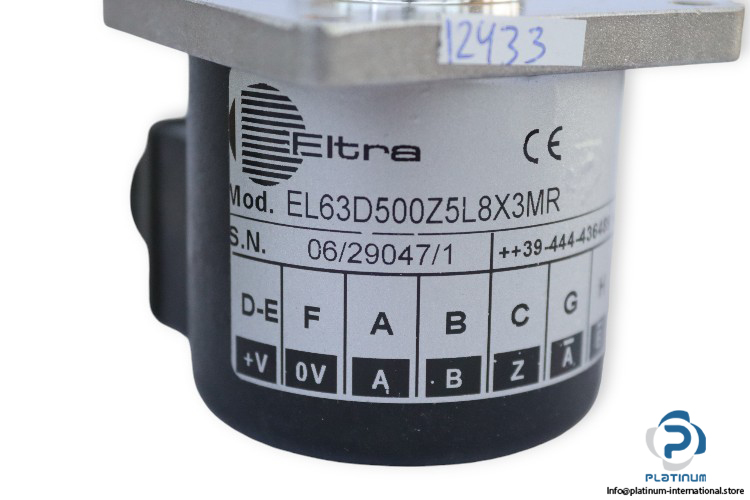

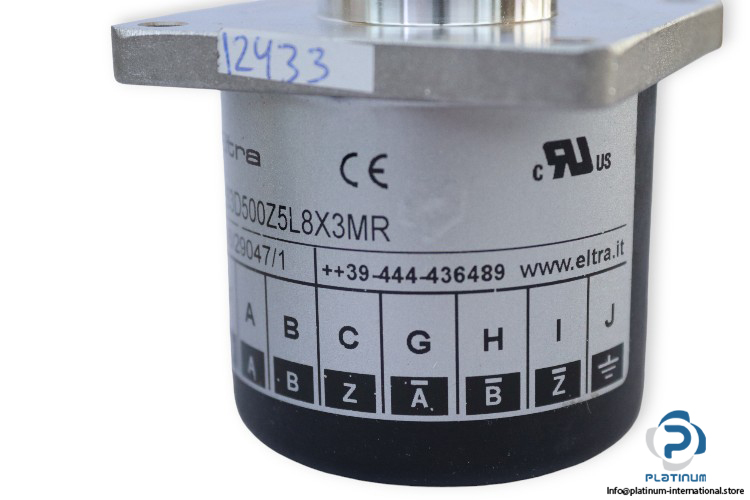

Model: EL63D500Z5L8X3MR
Serial No.: 06/29047/1

Technical Information

• Power Supply: 5 V DC
• Principle of Operation: Incremental
• Shaft Type: Solid Shaft
• Resolution: 500 PPR
• Shaft Diameter: 8 mm
• Max Rotation Speed: 3000 RPM

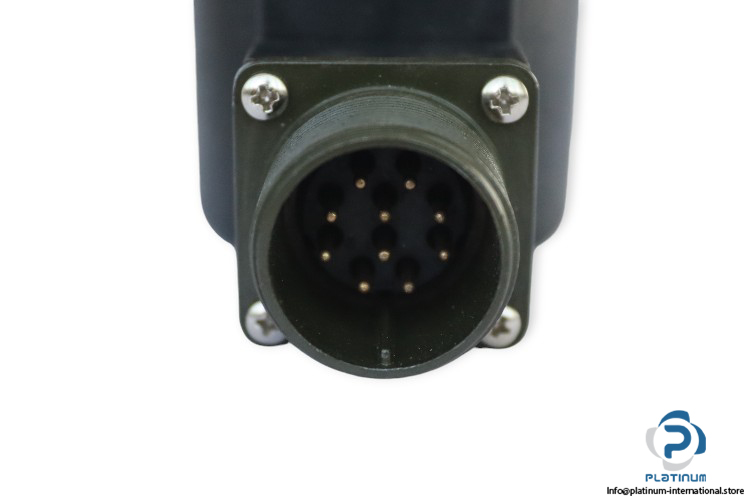

• Output Type: MIL Connector (10 Pins)
• Direction Type: Radial
• Construction Size (Diameter): 63 mm
• Measurement Type: Rotary
