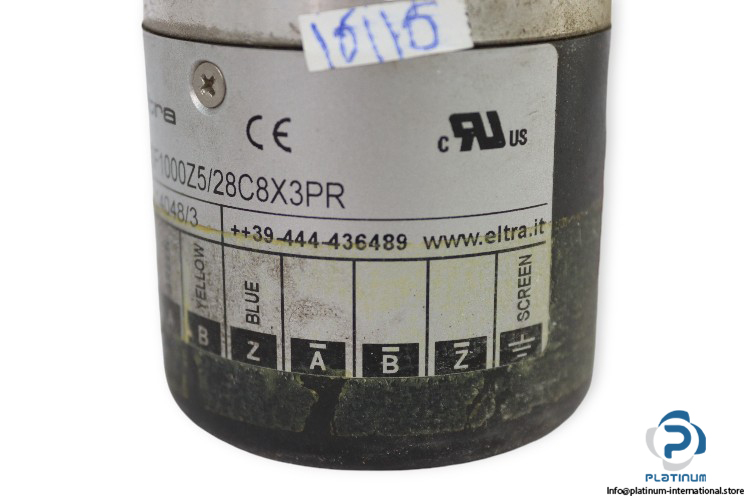

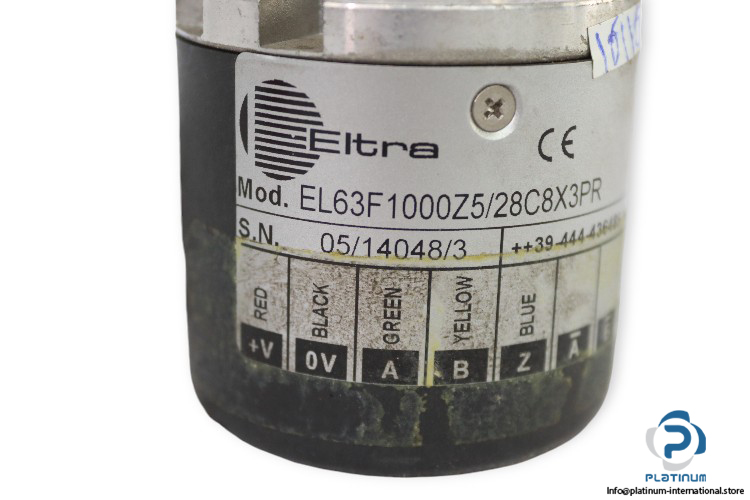

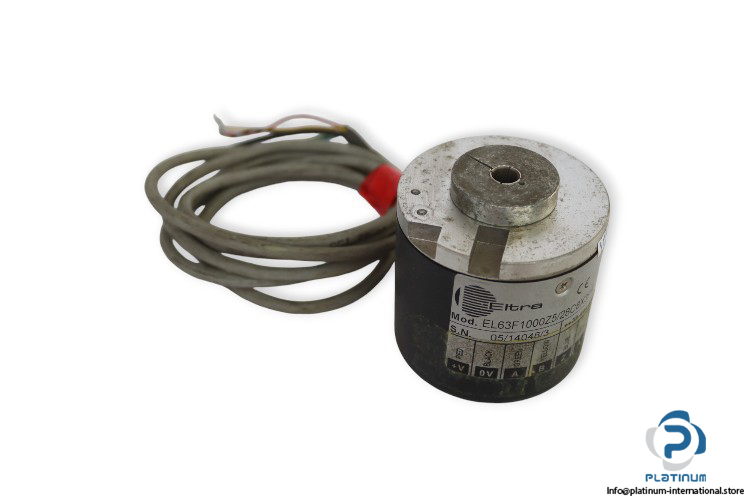

ELTRA EL63F1000Z5/28C8X3PR INCREMENTAL ENCODER

Engineered for industrial precision, the ELTRA EL63F1000Z5/28C8X3PR is a high-resolution incremental rotary encoder designed to ensure reliable signal output in challenging environments. Ideal for automation, robotics, and positioning applications.

Manufacturer: ELTRA
Type: Incremental Encoder
Model: EL63F1000Z5/28C8X3PR
Serial No.: 05/14048/3

Technical Information

• Power Supply: 5 / 28 V DC
• Principle of Operation: Incremental
• Resolution: 1000 ppr
• Type of Sensor: Optical
• Measurement Type: Rotary
• Shaft Type: Blind Hollow Shaft
• Bore Diameter: 8 mm
• Mounting Type: With Spring
• Electronic Interface: NPN Open Collector

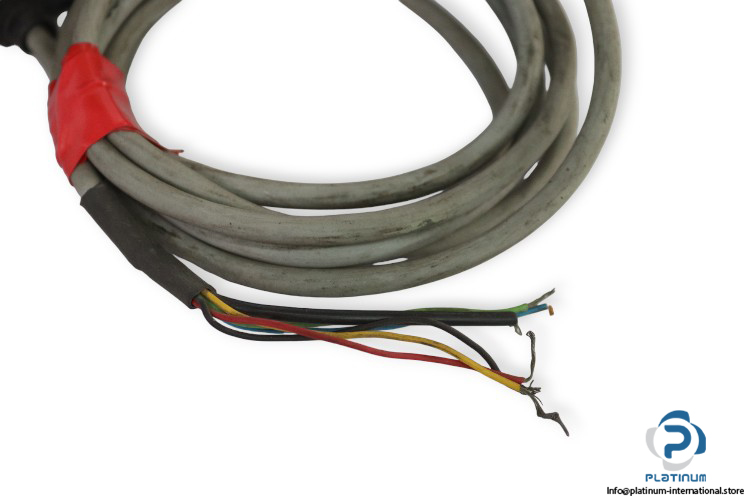

• Output Type: Cable (6 wires)
• Direction Type: Radial
• Construction Size (Diameter): 63.5 mm
• Max Output Frequency: 250 kHz
• Max Rotation Speed: 3000 rpm
• Protection Degree: IP54
• Operating Temperature: -10 / +60°C
