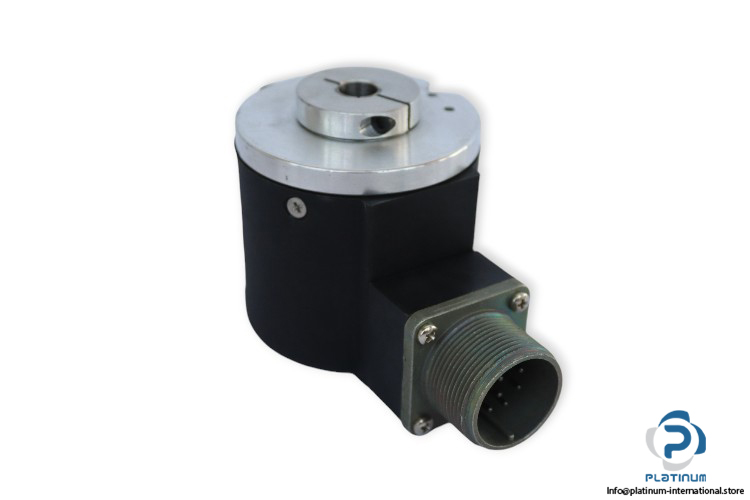

ELTRA EL63F2Z5L10X3MR INCREMENTAL ENCODER

The ELTRA EL63F2Z5L10X3MR is a high-precision incremental rotary encoder, engineered for reliable performance in industrial automation systems. Built with an optical sensing mechanism and a blind hollow shaft, it ensures accurate motion detection even in demanding environments.

Manufacturer: ELTRA
Type: Incremental Encoder

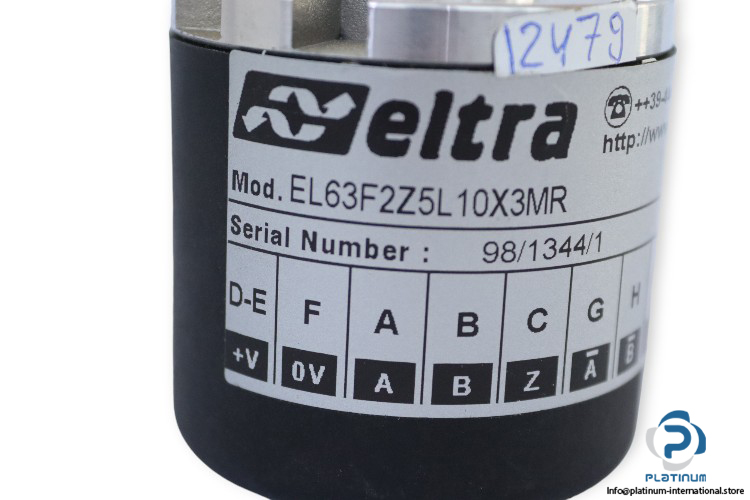

Model: EL63F2Z5L10X3MR

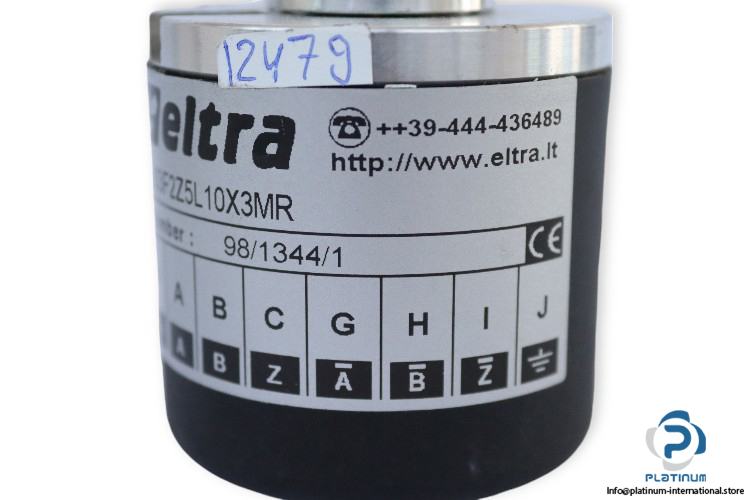

Serial No.: 98/1344/1

Technical Information

• Power Supply: 5 V DC
• Principle of Operation: Incremental
• Shaft Type: Blind Hollow Shaft
• Mounting Type: With Spring
• Resolution: 2 PPR
• Bore Diameter: 10 mm
• Maximum Rotation Speed: 3000 rpm

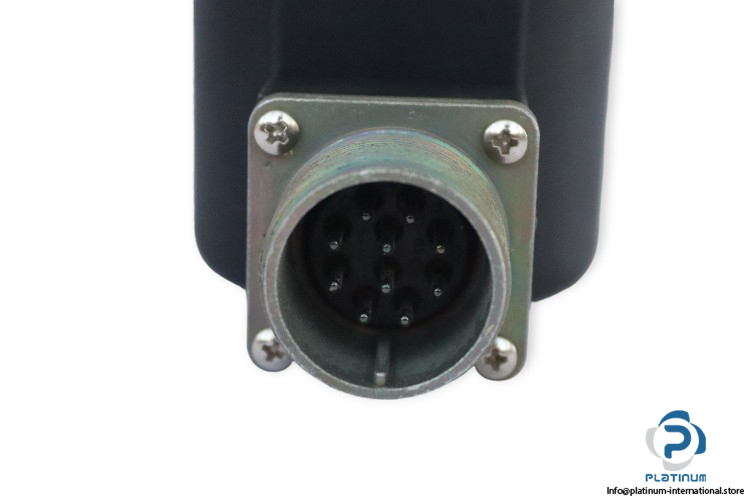

• Output Type: MIL Connector (10 Pins)
• Construction Size: 63.5 mm
• Maximum Output Frequency: 250 kHz
• Operating Temperature: -10 / +60°C
• Measurement Type: Rotary
• Sensor Type: Optical
• Enclosure Rating: IP54
