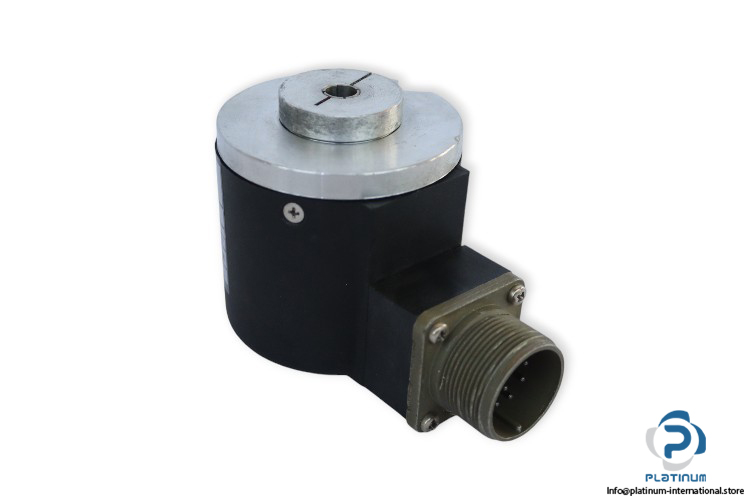

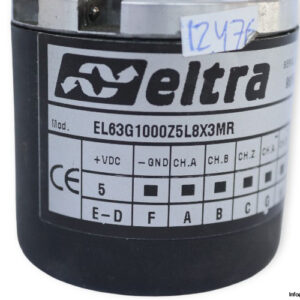

ELTRA EL63G1000Z5L8X3MR INCREMENTAL ENCODER

The ELTRA EL63G1000Z5L8X3MR is a high-precision incremental rotary encoder designed for reliable signal output in industrial automation and motion control systems. Engineered with optical sensing and a robust enclosure, it ensures accurate feedback and durability in demanding environments.

Manufacturer: ELTRA
Type: Incremental Encoder

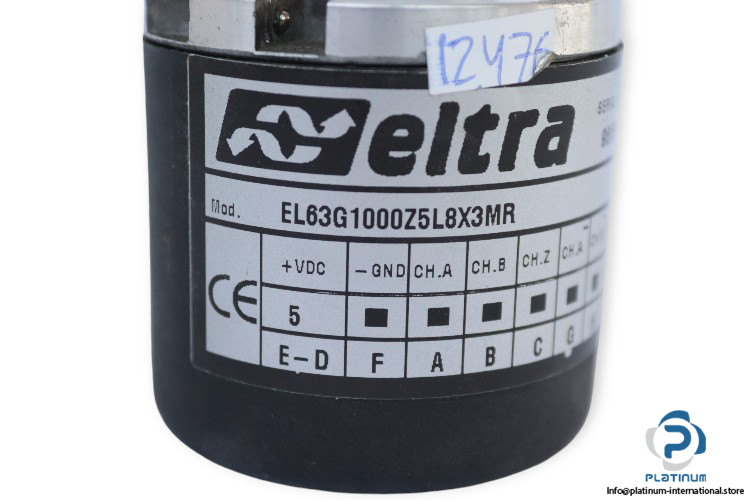

Model: EL63G1000Z5L8X3MR

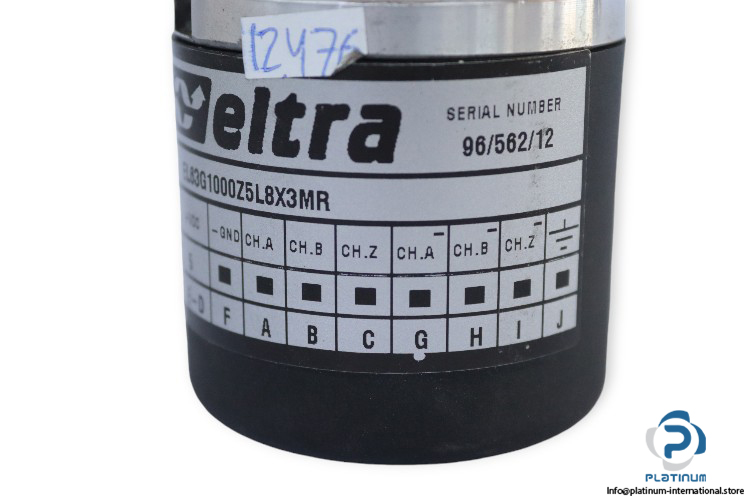

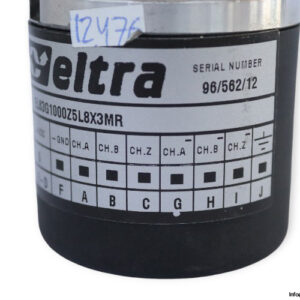

Serial No.: 96/562/12

Technical Information

• Power Supply: 5 V DC
• Principle of Operation: Incremental
• Shaft Type: Blind Hollow Shaft
• Electronic Interface: Line Driver
• Resolution: 1000 PPR
• Bore Diameter: 8 mm
• Max Rotation Speed: 3000 RPM

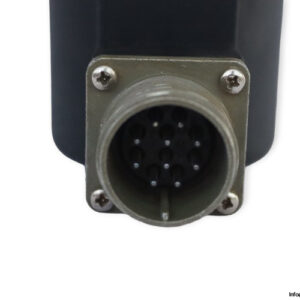

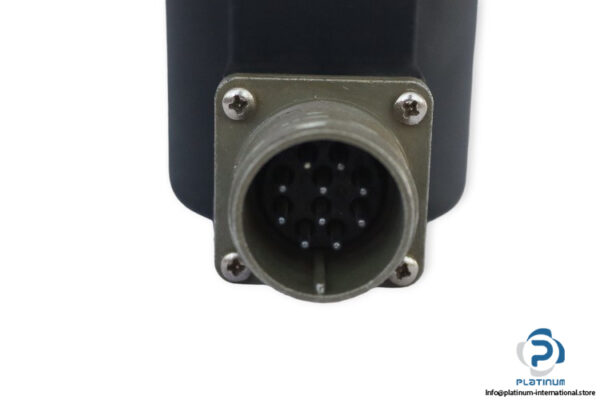

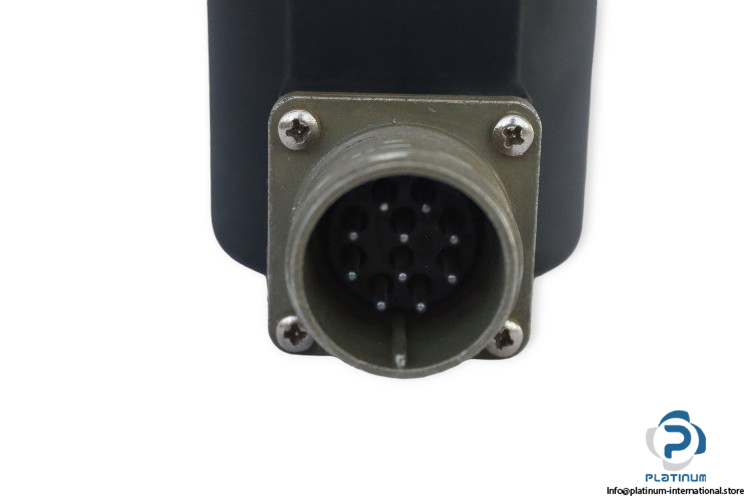

• Output Type: MIL Connector (10 Pins)
• Direction Type: Radial
• Enclosure Rating: IP54
• Construction Size (Diameter): 63.5 mm
• Output Frequency: 250 kHz Max.
• Operating Temperature: -10 / +60°C
• Measurement Type: Rotary
• Type of Sensor: Optical
